Description

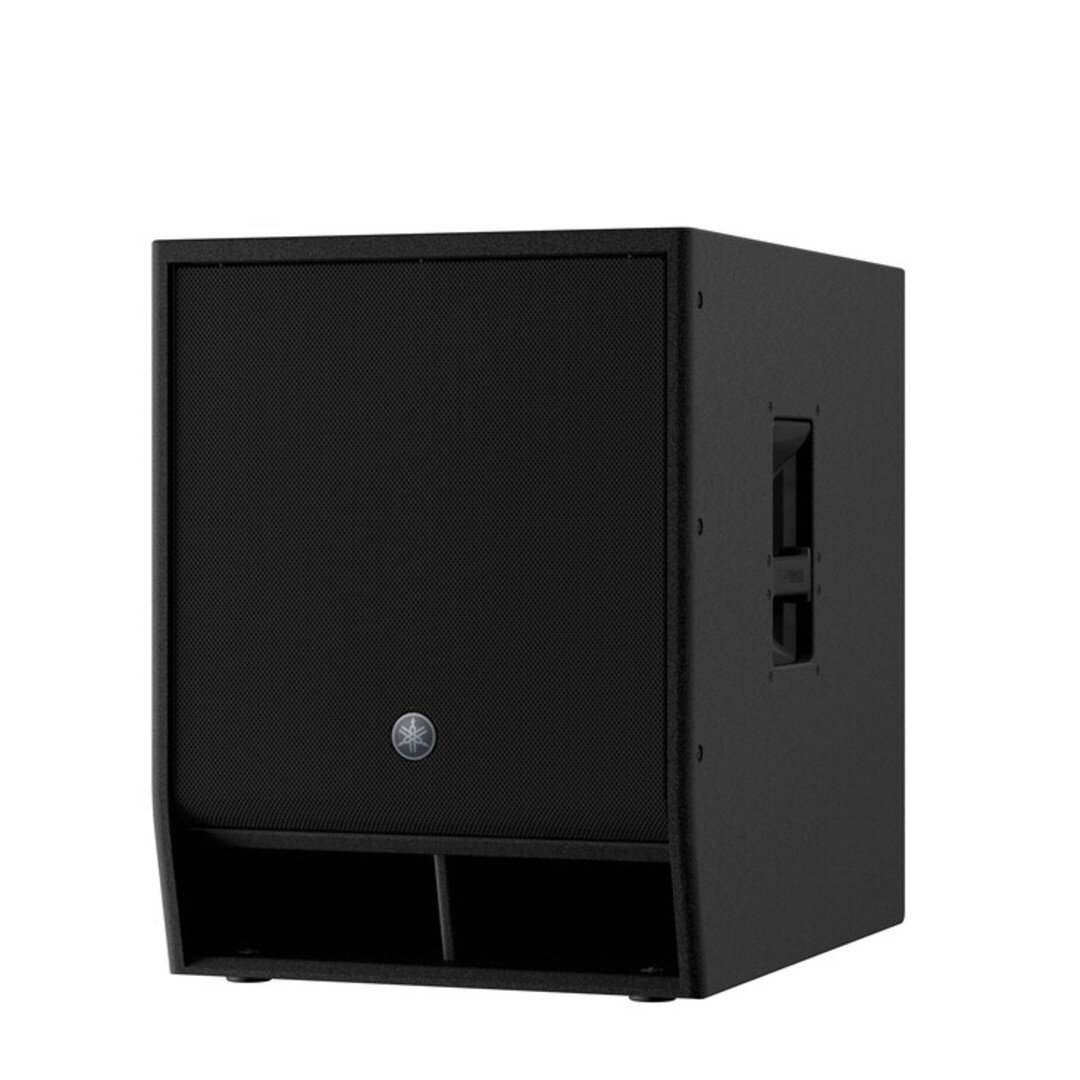

The Yamaha DXS15XLF-D / DXS15XLF-DW is a Dante-enabled powered bass-reflex subwoofer designed to deliver powerful, extended low-frequency performance for professional sound reinforcement systems. Featuring a high-output 15-inch woofer, 1600W Class-D amplifier, Dante networking, and advanced 96kHz DSP processing, it produces up to 136 dB SPL with exceptional clarity, accuracy, and impact.
More Information
Key Features
- Powered 15″ woofer with 4″ voice coil
- High-power 1600W Class-D amplifier
- Maximum SPL of 136 dB
- Dante I/O (2-In/2-Out) with Sample Rate Conversion (SRC)
- Advanced 96kHz DSP processing
- Frequency response from 33 Hz to 150 Hz
- D-XSUB processing for enhanced low-frequency extension
- Cardioid Mode for improved bass control

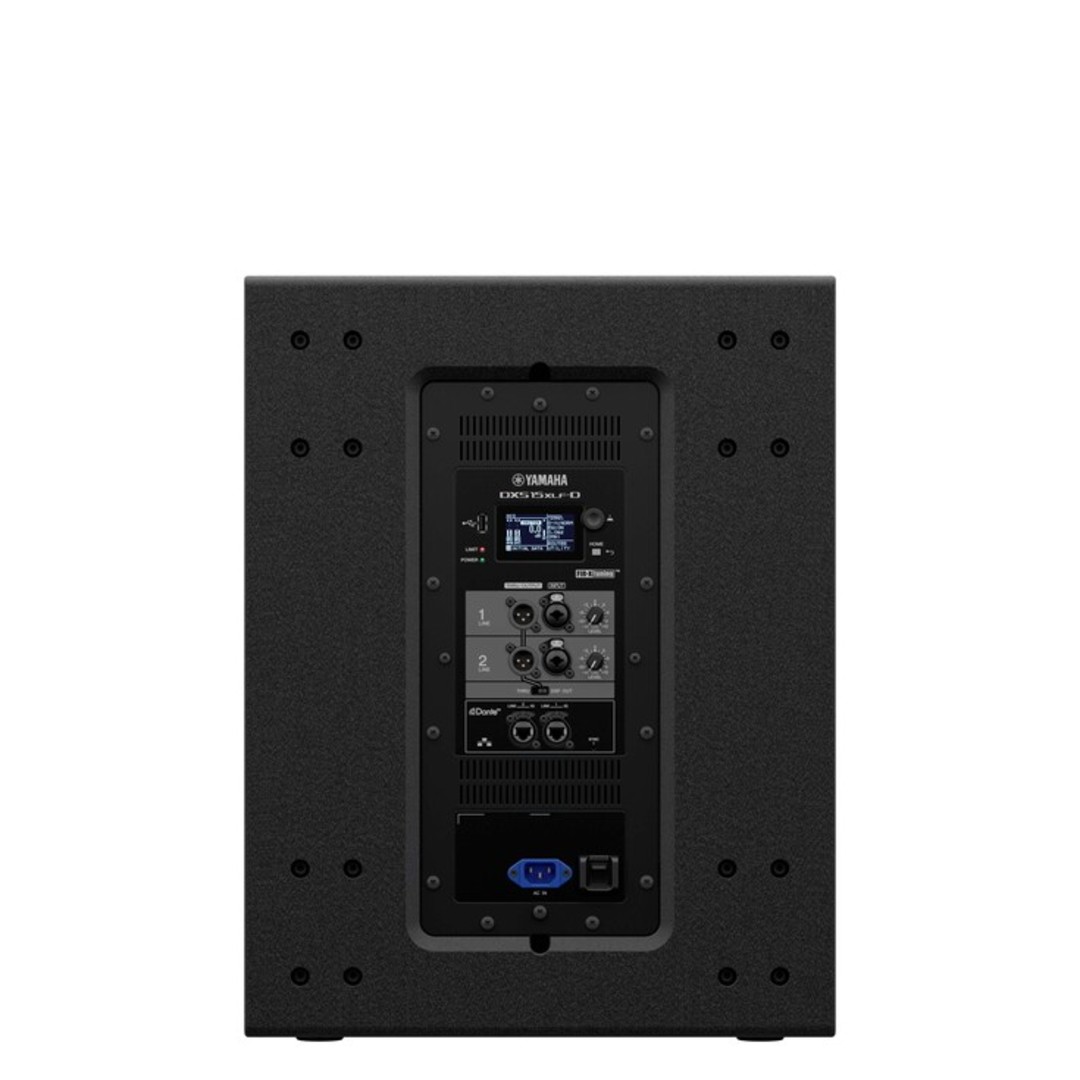

- LCD display for DSP control, presets, EQ, delay, and routing
- Lightweight plywood cabinet with premium Polyurea coating

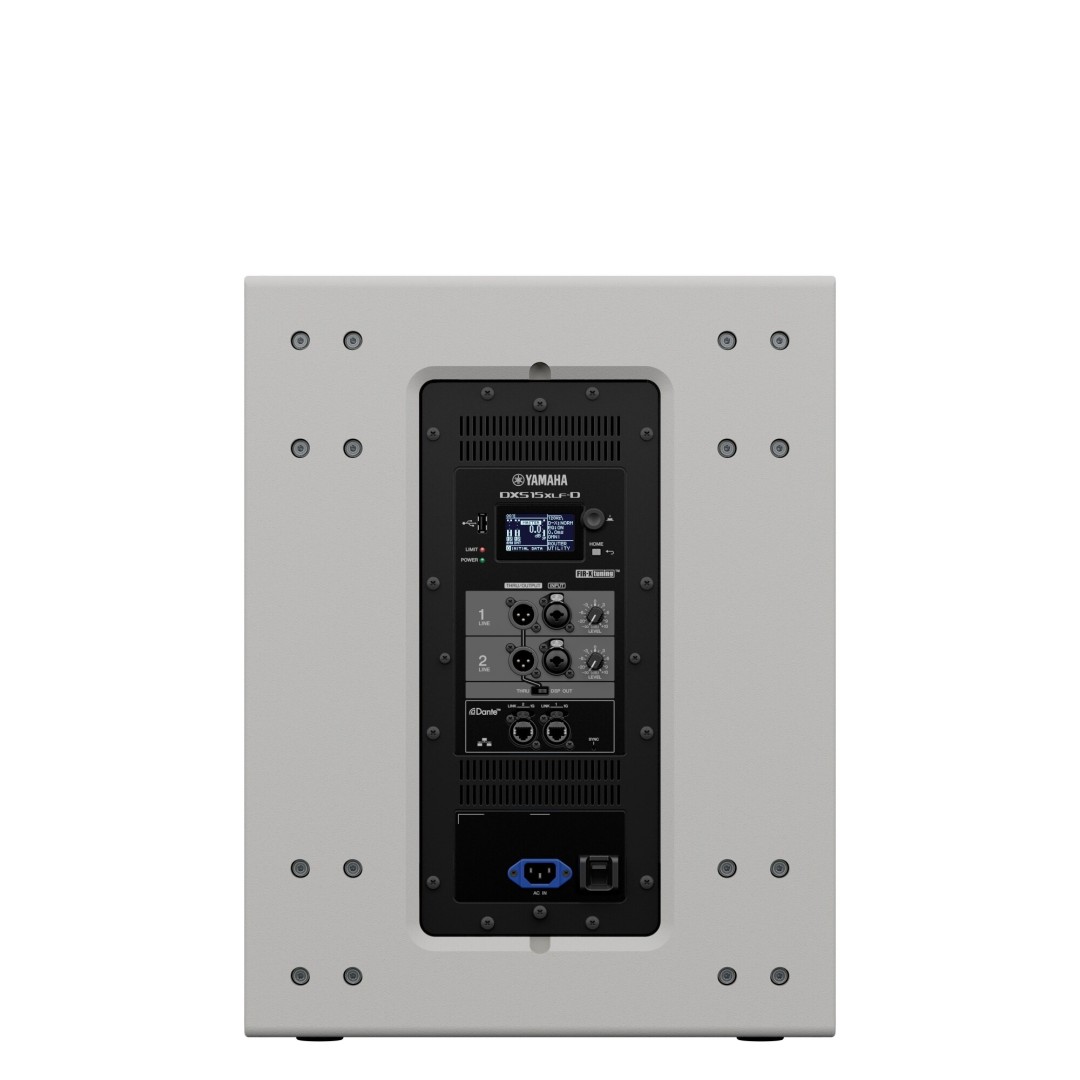

- Available in Black (DXS15XLF-D) and White (DXS15XLF-DW) finishes
Technical Specifications
- Speaker Type: Powered Bass-Reflex Subwoofer
- LF Driver: 15″ Woofer, 4″ Voice Coil
- Amplifier Type: Class-D
- Power Output: 1600W
- Maximum SPL: 136 dB
- Frequency Range: 33 Hz – 150 Hz
- DSP Processing: 96kHz High-Resolution DSP
- Network Audio: Dante 2-In / 2-Out with SRC
- DSP Functions: D-XSUB, Cardioid Mode, PEQ, Delay, Routing Presets
- Cabinet Material: Plywood with Premium Polyurea Coating
- Finish Options: Black (DXS15XLF-D) / White (DXS15XLF-DW)
- Optional Accessories: SPCVR-DXS15X Cover, SPW-1 Wheel Kit
- Applications: Professional Touring, Live Sound Reinforcement, Houses of Worship, Theaters, Corporate Events, and Fixed Audio Installations.
