Description

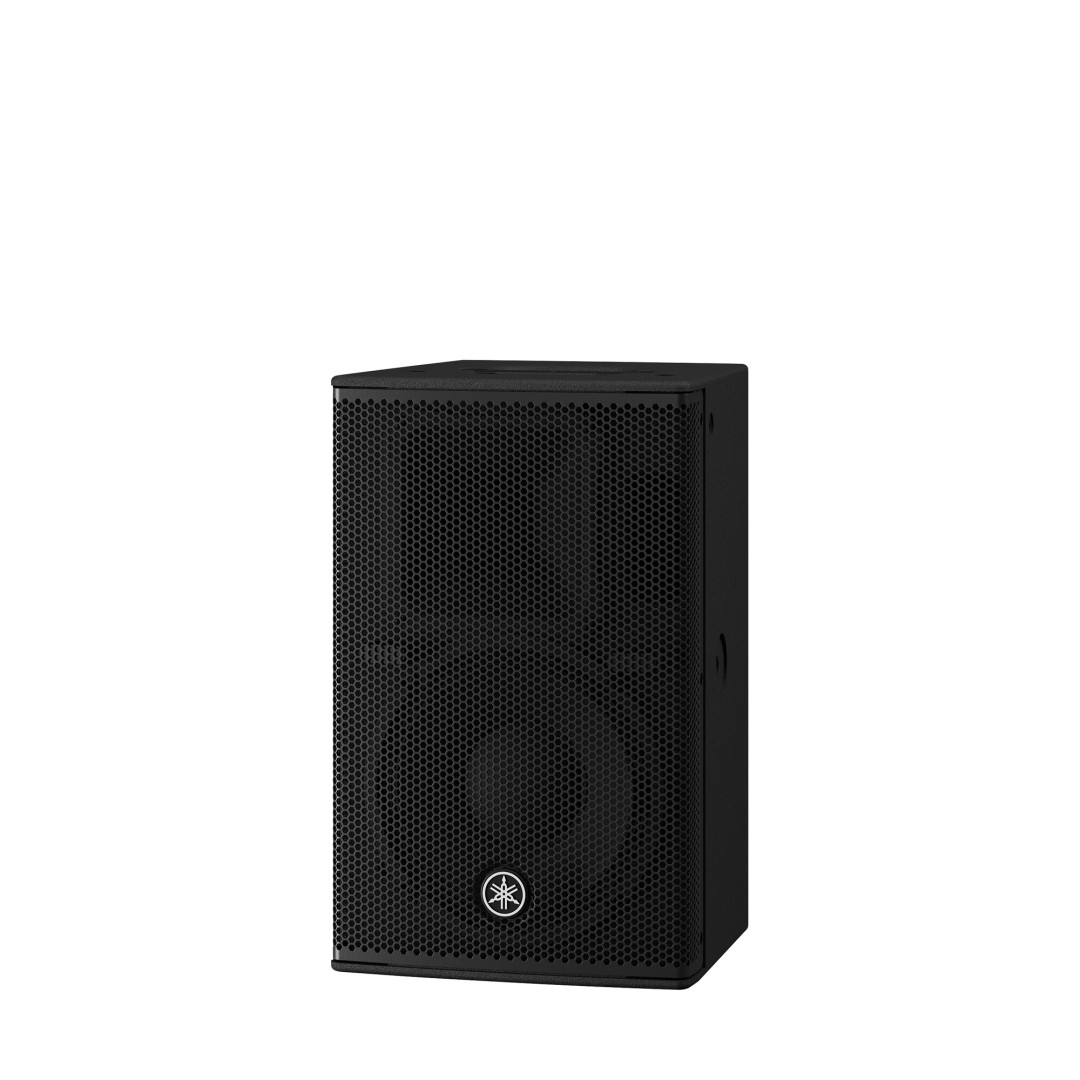

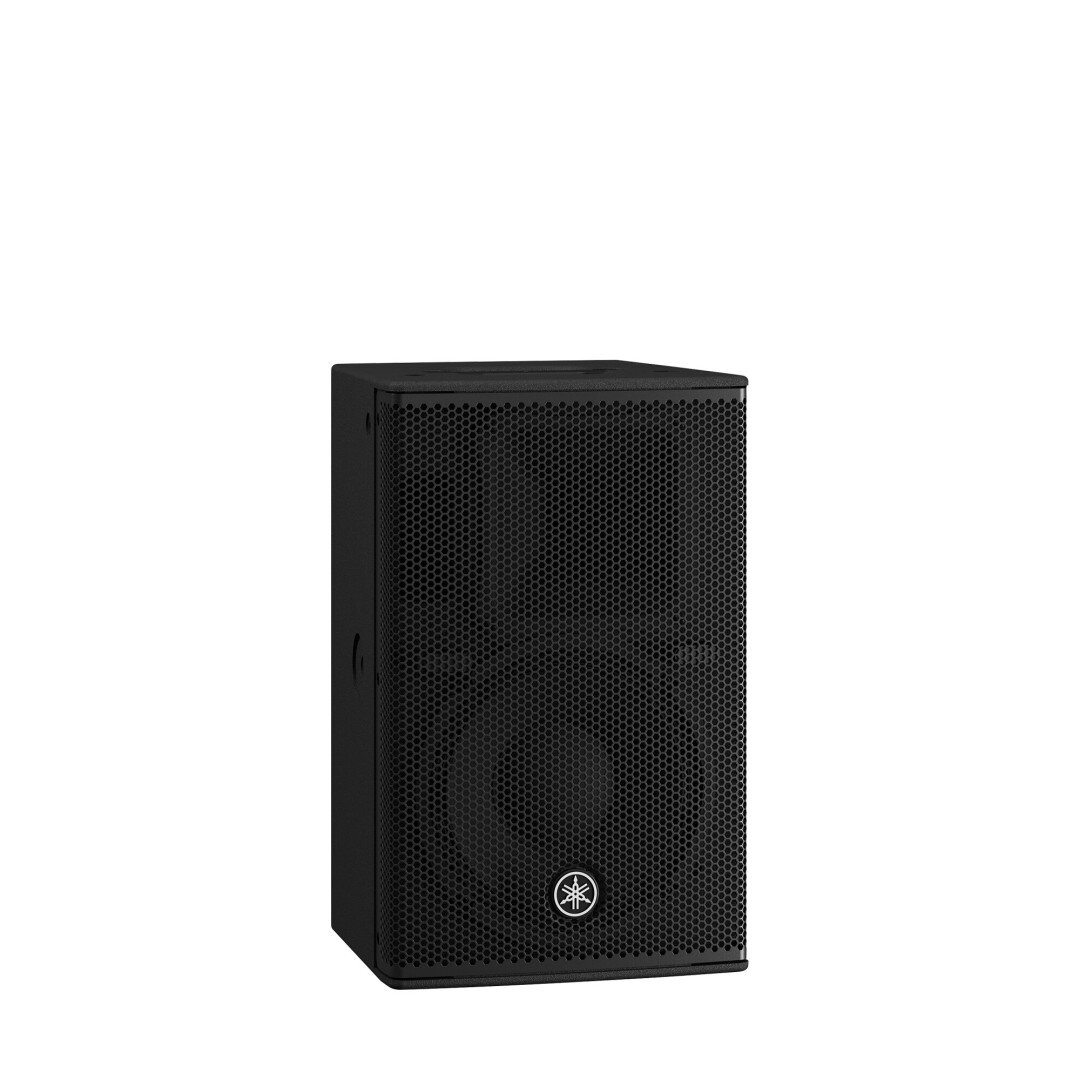

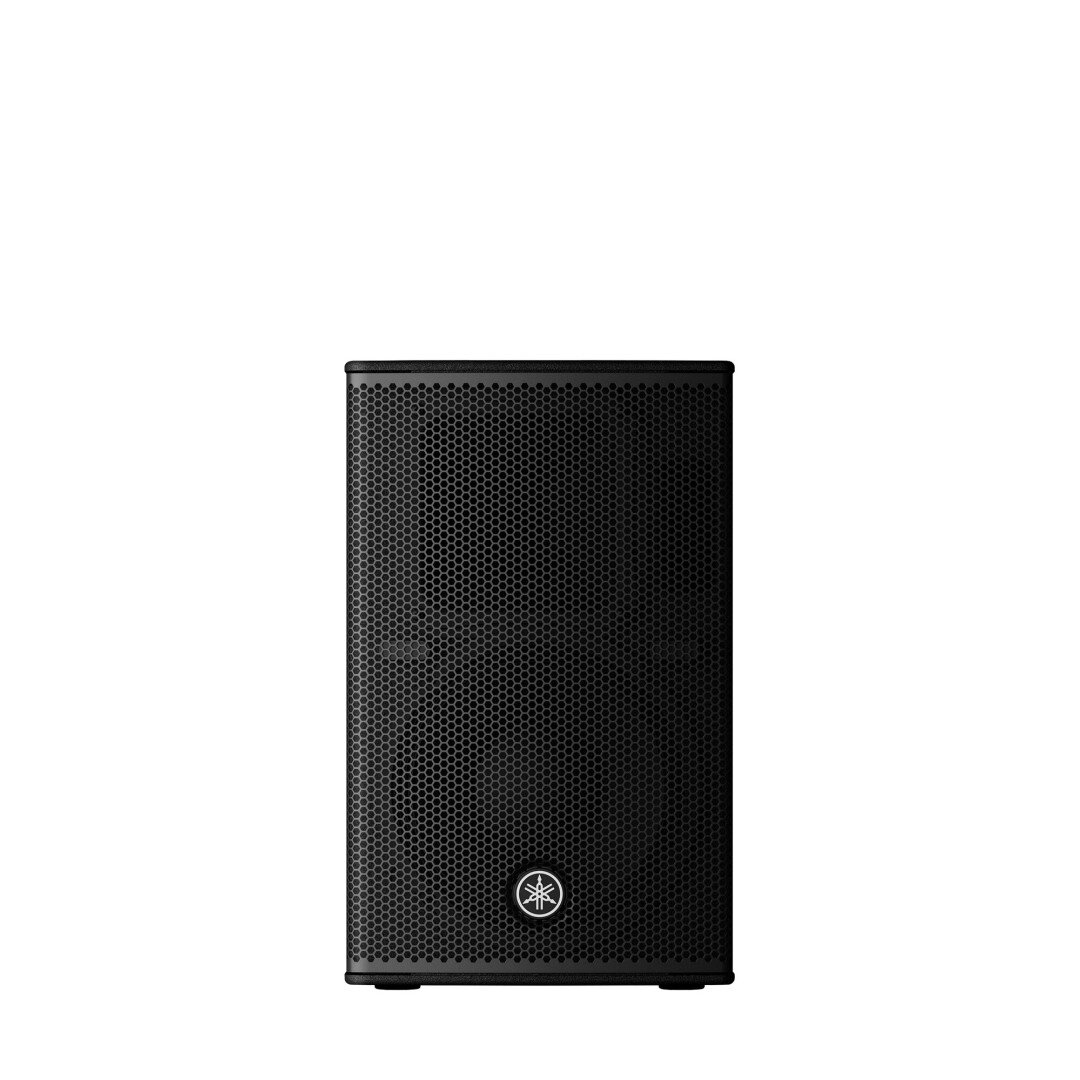

The DHR10 is a compact and versatile 2-way bi-amplified powered loudspeaker designed primarily for fixed installation and portable sound reinforcement applications. Equipped with a 10-inch woofer, a 1.4-inch high-frequency driver, and a powerful 700W amplifier, it delivers clear, balanced sound with impressive low-frequency performance for its size. Built with the same premium plywood construction found in Yamaha’s flagship DZR Series, the DHR10 offers outstanding durability, flexible installation options, and professional-grade audio quality in a compact enclosure.
More Information
Key Features
- 10″ woofer and 1.4″ high-frequency compression driver
- 700W Class-D bi-amplified power system
- Compact enclosure with excellent low-frequency response
- Premium plywood cabinet minimizes vibration and improves clarity
- Durable polyurea-coated finish for enhanced scratch resistance
- Designed for fixed installations and portable PA applications
- Rotatable HF horn for horizontal or vertical mounting
- Flexible installation options for a wide range of venues
- Optional UB-DXRDHR10 U-bracket for vertical or horizontal installation
- Pole socket for speaker stand mounting
- Integrated rigging points for suspended applications
- Proprietary FIR-X™ tuning with FIR filtering and corrective EQ
- Advanced DSP processing for accurate and natural sound reproduction
Technical Specifications
- Speaker Type: 2-Way Bi-Amplified Powered Loudspeaker
- LF Driver: 10″ Woofer
- HF Driver: 1.4″ Compression Driver
- Amplifier Type: Class-D
- Power Output: 700 W
- DSP Processing: FIR-X™ Tuning with Corrective EQ
- Cabinet Material: Premium Plywood
- Cabinet Finish: Polyurea Scratch-Resistant Coating
- Installation Options: Vertical or Horizontal Configuration
- HF Horn: Rotatable High-Frequency Horn
- Mounting Options: Pole Mount, Rigging Points, Optional U-Bracket
- Optional Accessory: UB-DXRDHR10 U-Bracket
- Application: Fixed Installation, Portable PA, Live Sound Reinforcement
- Enclosure Design: Compact Full-Range Cabinet
- Weight: Approx. 15.8 kg (34.8 lbs)
