Description
The Yamaha DZR10-D is a compact yet powerful 2-way bi-amped powered loudspeaker designed for professional sound reinforcement applications. Equipped with a 10-inch low-frequency woofer, a 2-inch high-frequency compression driver, and a powerful 2000W Class-D amplifier, the DZR10-D delivers exceptional clarity and an impressive maximum SPL of 137 dB.
Featuring integrated Dante networking, 96kHz DSP processing, Advanced FIR-X tuning, and flexible mounting options, the DZR10-D provides precise, high-resolution audio performance for live sound, FOH systems, stage monitoring, touring, and fixed installations.
More Information
Key Features
- Dante-enabled 2-way bi-amped powered loudspeaker
- 10″ LF woofer and 2″ HF compression driver
- 2000W high-power Class-D amplifier
- Maximum SPL of 137 dB
- Frequency response: 44 Hz – 20 kHz
- 96kHz DSP processing with ultra-low latency
- Advanced FIR-X tuning for accurate sound reproduction
- Dante I/O (2 In / 2 Out) with SRC compatibility

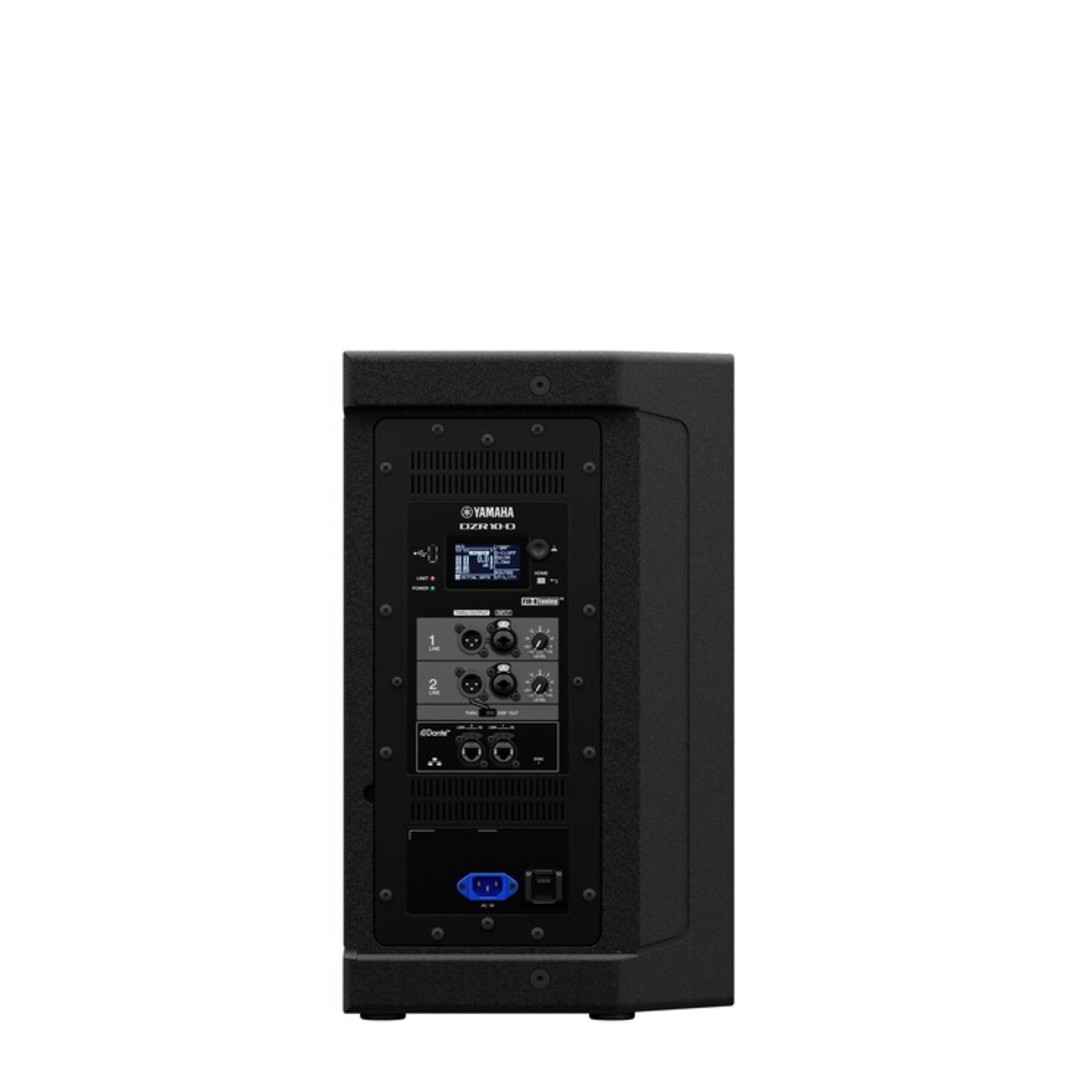

- LCD display for DSP control and preset management
- D-Contour intelligent dynamic processing

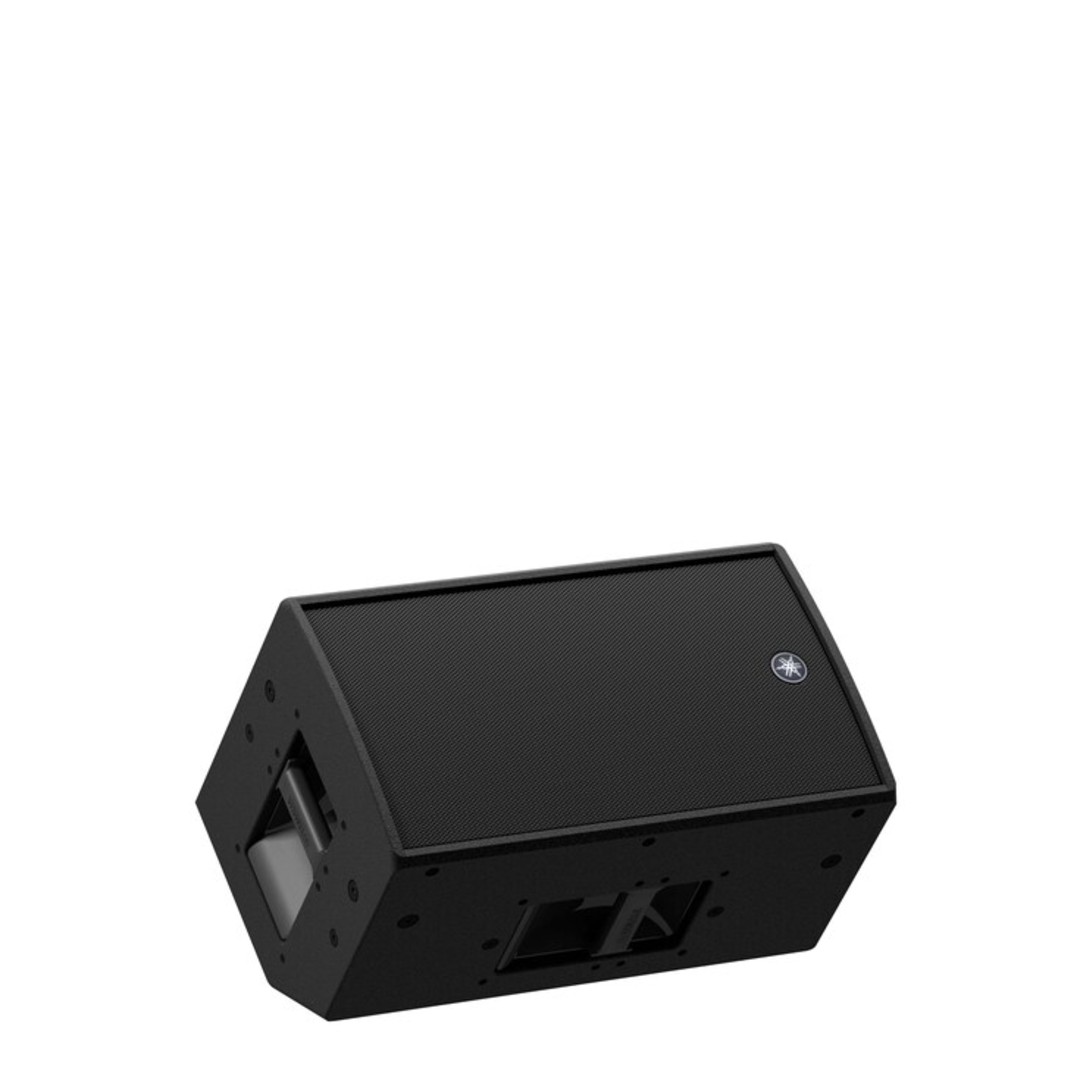

- Floor monitor mode
- Rotatable horn for flexible coverage
- Compatible with UB-DZR mounting brackets
- Durable plywood enclosure with Polyurea coating
- Available in Black (DZR10-D) and White (DZR10-DW)
- Optional SPCVR-DZR10 protective cover
Technical Specifications
- Model: Yamaha DZR10-D / DZR10-DW
- Speaker Type: Powered 2-Way Loudspeaker
- Amplifier Class: Class-D
- Power Output: 2000W
- LF Driver: 10-inch Woofer
- HF Driver: 2-inch Compression Driver
- Maximum SPL: 137 dB
- Frequency Range (-10 dB): 44 Hz – 20 kHz
- DSP Processing: 96kHz DSP
- FIR Technology: Advanced FIR-X Tuning
- Dante Networking: Yes
- Dante I/O: 2 In / 2 Out
- Sample Rate Conversion (SRC): Supported
- EQ Functions: Parametric EQ (PEQ)
- Delay & Routing: Supported
- Dynamic Processing: D-Contour
- Floor Monitor Mode: Supported
- Display: LCD Screen
- Horn: Rotatable
- Rigging Options: UB-DZR Compatible
- Protection Circuits: Advanced Protection System
- Cabinet Material: Premium Plywood
- Cabinet Finish: Polyurea Coating
- Color Options: Black (DZR10-D) / White (DZR10-DW)
- Optional Cover: SPCVR-DZR10
- Applications: FOH, Live Sound, Stage Monitoring, Touring, Corporate AV, Houses of Worship, Fixed Installations
