Description
Cuboid 5 is a compact two-way passive loudspeaker engineered to deliver powerful audio performance while maintaining a discreet and elegant appearance. Designed for high-quality background music and speech applications, Cuboid 5 combines exceptional sound clarity, wide coverage, and flexible installation options in a compact enclosure. Its versatile mounting capabilities and weather-resistant construction make it suitable for both indoor and outdoor commercial and residential audio applications.
More Information
Key Features
• Compact and discreet design with high-performance audio output
• Two-way passive loudspeaker configuration for enhanced clarity and detail
• Portrait or landscape mounting flexibility

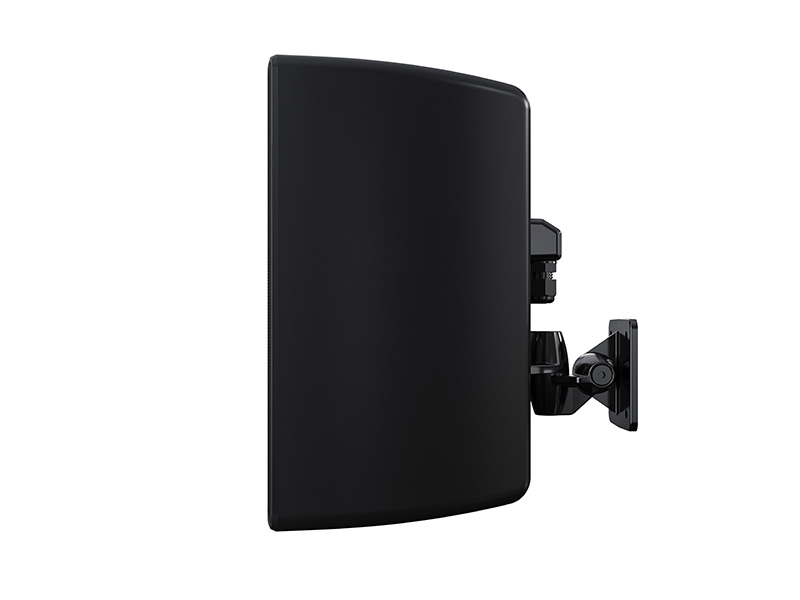

• Wall mounting bracket included for simple installation
• Wide dispersion pattern for uniform sound coverage
• High maximum SPL for demanding background music and speech applications

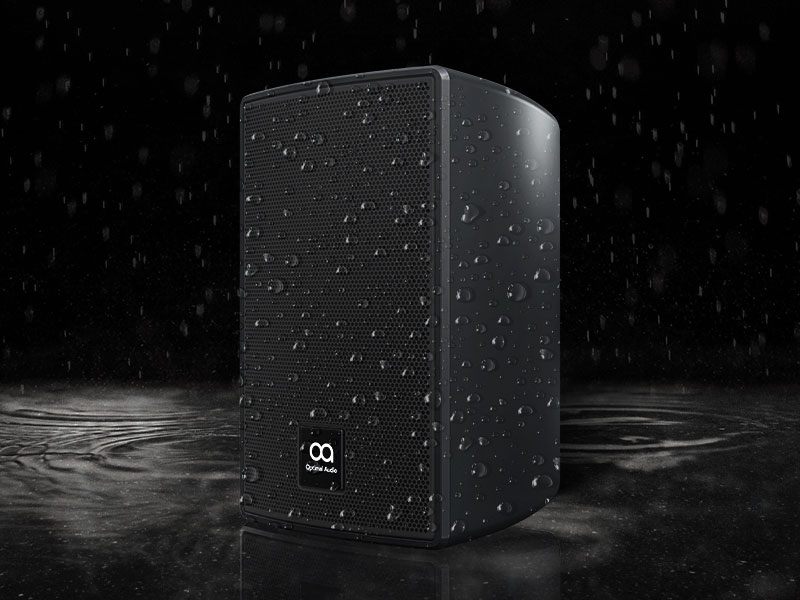

• Weather-resistant design with IP54 protection when accessory cover is used
• Suitable for distributed audio systems and commercial installations
• Compatible with subwoofer integration for extended low-frequency performance
Technical Specification
• Type: Two-way, Full Range, Passive 5″ Loudspeaker
• Frequency Response: 97Hz – 20kHz (±3dB), -10dB @ 80Hz
• Low Frequency Driver: 5.25″ (133mm) Coated Paper Cone with Ferrite Motor System
• High Frequency Driver: 0.75″ (19mm) Silk Dome with Neodymium Motor System
• Rated Power: 50W AES / 200W Peak
• Nominal Impedance: 8 Ohms
• Sensitivity: 88dB (1W/1m)
• Maximum SPL: 105dB Continuous / 111dB Peak
• Crossover Frequency: 2.5kHz
• Recommended High Pass Filter: 24dB per Octave @ 70Hz
• Dispersion: 130° Horizontal × 120° Vertical
• IP Rating: IP54 (with accessory terminal cover)
• Enclosure Material: ABS Construction
• Finish: Painted Finish
• Protective Grille: Painted Aluminium

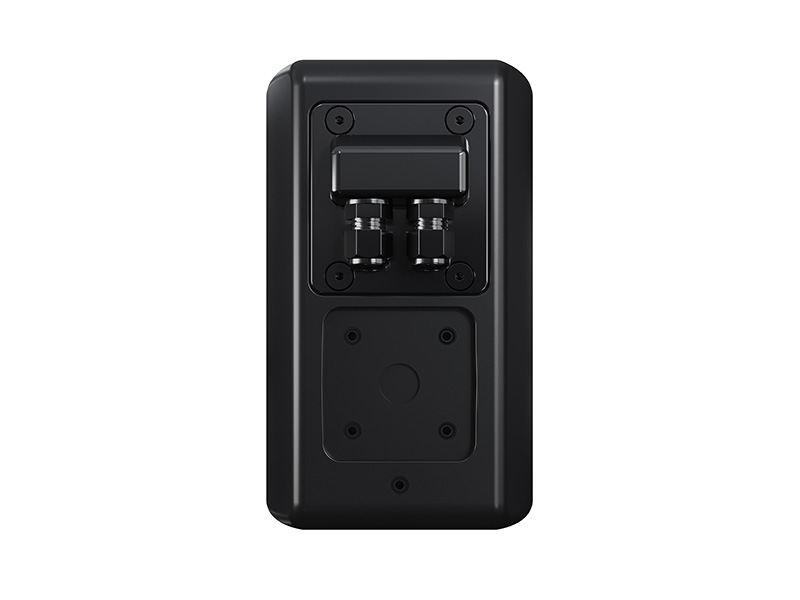

• Connectors: 4-Pin Euroblock
• Input Connections: Positive & Negative Input with Link-Out Terminals
• Mounting Points: M4 Mounting Points for Wall Bracket
• Dimensions: 155mm (W) × 255mm (H) × 150mm (D)
• Weight: 2.15kg
