Description

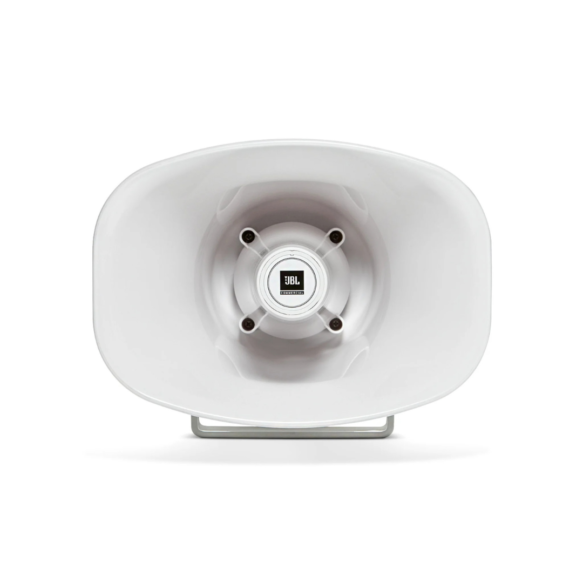

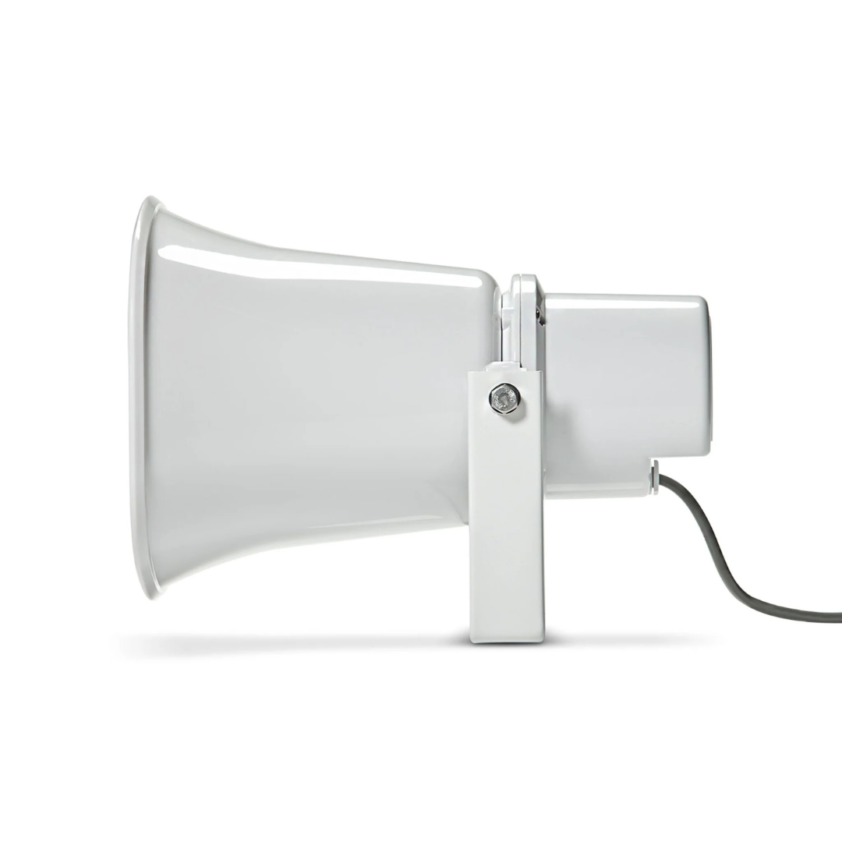

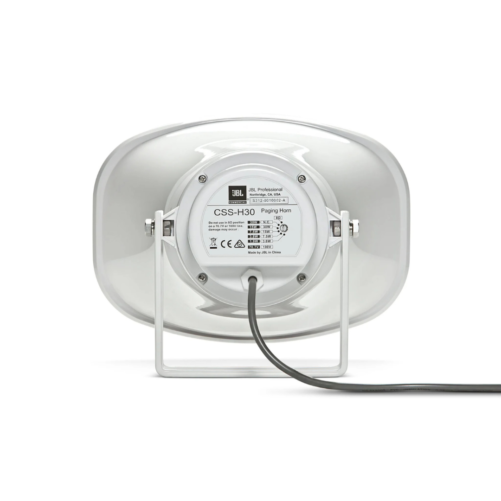

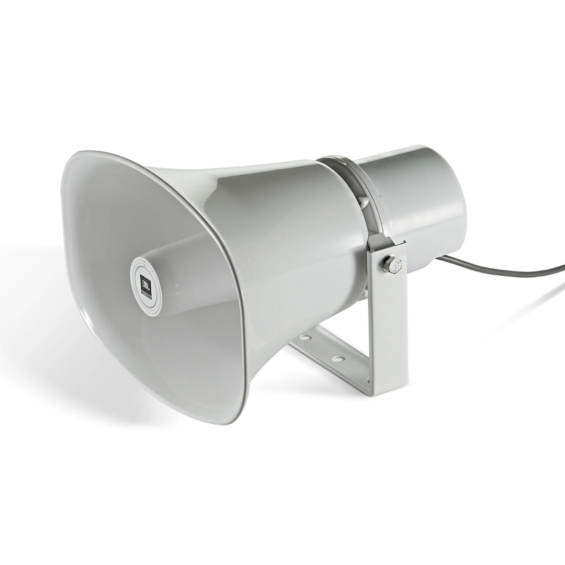

The CSS-H30 Paging Horn is a high-output horn speaker designed for public address, announcement, paging, intercom, security, alarm, and industrial applications. It delivers excellent voice range clarity with high sensitivity, allowing loud and clear sound projection with minimal amplification. With IP-65 weather resistance, focused 50° x 70° coverage, a 30W multi-tap transformer, and stainless-steel mounting hardware, it is ideal for long-throw indoor and outdoor paging applications in warehouses, factories, schools, commercial buildings, distribution centers, civic centers, and public access areas.
More Information
Key Features
- High-output paging horn for public address and announcement systems.
- Excellent voice clarity for paging, intercom, security, and alarm use.
- High sensitivity for strong sound output with low amplifier power.
- Focused 50° horizontal x 70° vertical coverage for long-throw applications.
- 30W multi-tap transformer with 8 ohm direct bypass.
- Built-in 350 Hz high-pass filter for protection from low-frequency damage.
- Phenolic diaphragm driver for outdoor durability and reliability.
- IP-65 weather-resistant design for indoor and outdoor installation.
- ABS horn construction for durability.
- Stainless steel powder-coated U-bracket included.
- Stainless steel exterior hardware for demanding environments.
- Suitable for warehouses, factories, schools, recreational facilities, and commercial buildings.
Technical Specification
- Product Type: Paging Horn Speaker
- Frequency Range: 380 Hz – 6 kHz (-10 dB)
- Coverage Angle: 50° H x 70° V
- Power Rating: 30W, 120W Peak
- Sensitivity: 108 dB average, 112 dB at 1.4 kHz
- Maximum SPL: 123 dB continuous, 129 dB peak
- Maximum SPL at 1.4 kHz: 127 dB continuous, 133 dB peak
- Directivity Factor: 15.8 at 2 kHz
- Directivity Index: 12 dB at 2 kHz
- Transformer Taps 70V: 30W, 15W, 7.5W, 3.8W, 1.9W
- Transformer Taps 100V: 30W, 15W, 7.5W, 3.8W
- Impedance: 8 Ohms in Direct Setting
- Driver: 38 mm 1.5-inch Phenolic Diaphragm Driver
- Included Filter: Passive 350 Hz High-Pass Filter
- Horn Material: ABS
- Mounting Hardware: Stainless Steel Powder-Coated U-Bracket
- Input Connector: 300 mm Pigtail to Bare Wire
- Outdoor Rating: IP-65
- Safety Rating: Transformer UL Registered per UL1876
- Color: RAL9016
- Dimensions: 206 x 285 x 287 mm
- Dimensions with Bracket: 224 x 285 x 287 mm
- Net Weight: 2.0 kg
- Shipping Weight: 2.7 kg
