Description

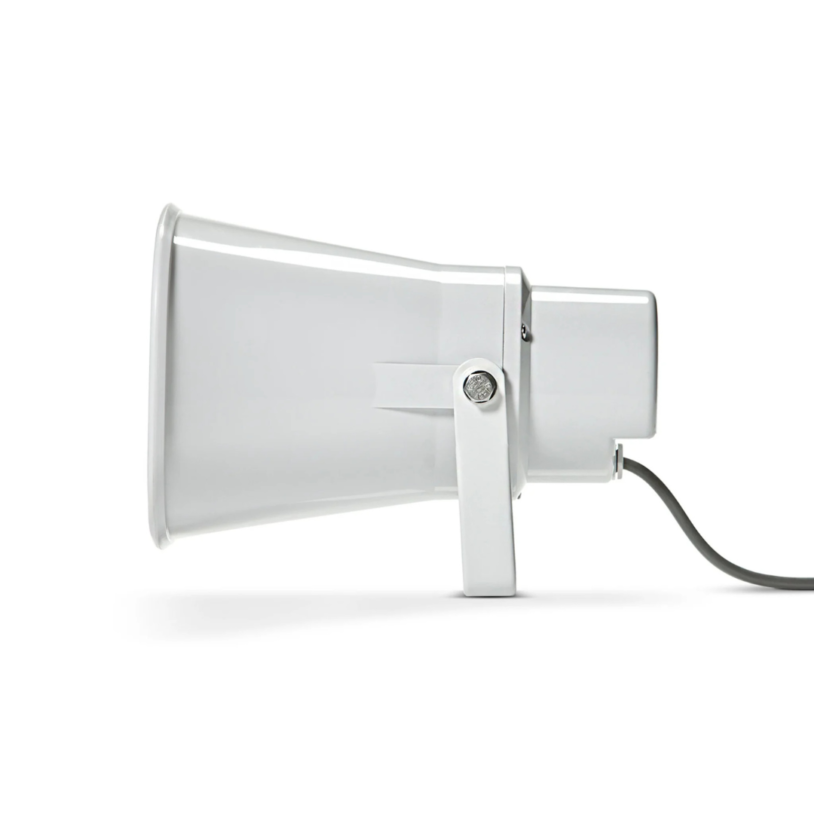

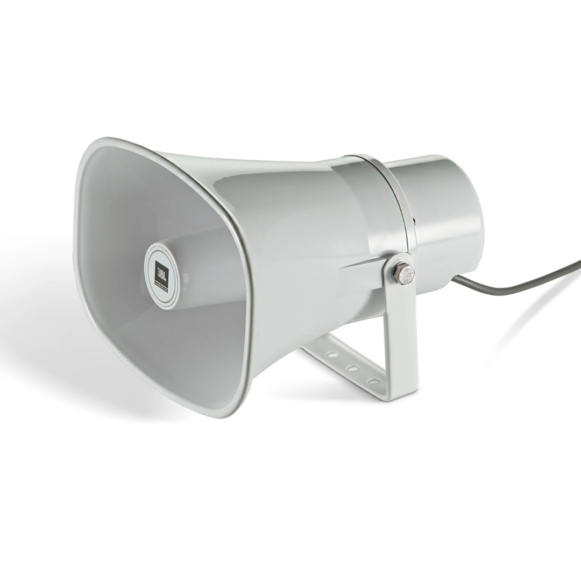

The CSS-H15 Paging Horn is a highly weather-resistant horn speaker designed for clear voice announcements, paging, intercom, security, alarm, and industrial sound applications. It delivers excellent voice range clarity with high sensitivity, allowing strong sound output with minimal amplification. With IP-65 outdoor protection, wide 70° x 90° coverage, a 15W multi-tap transformer, and durable stainless-steel mounting hardware, it is ideal for warehouses, factories, schools, public areas, commercial buildings, and outdoor paging systems.
More Information
Key Features
- Paging horn speaker for public address and announcement systems.
- Excellent voice range clarity for paging and intercom use.
- High sensitivity for loud sound output with low power amplification.
- Wide 70° horizontal x 90° vertical coverage.
- Suitable for medium-throw applications.
- 15W multi-tap transformer with 8 ohm direct bypass.
- Built-in 350 Hz high-pass filter for driver protection.
- Phenolic diaphragm driver for outdoor durability.
- IP-65 weather-resistant design for indoor and outdoor use.
- Stainless steel U-bracket and exterior hardware.
- Suitable for security, alarm, industrial, and commercial sound systems.
Technical Specification
- Product Type: Paging Horn Speaker
- Frequency Range: 400 Hz – 7.5 kHz (-10 dB)
- Coverage Angle: 70° H x 90° V
- Power Rating: 15W, 60W Peak
- Sensitivity: 105 dB average, 111 dB at 2 kHz
- Maximum SPL: 117 dB continuous, 123 dB peak
- Maximum SPL at 2 kHz: 123 dB continuous, 129 dB peak
- Directivity Factor: 10.9 at 2 kHz
- Directivity Index: 10.4 dB at 2 kHz

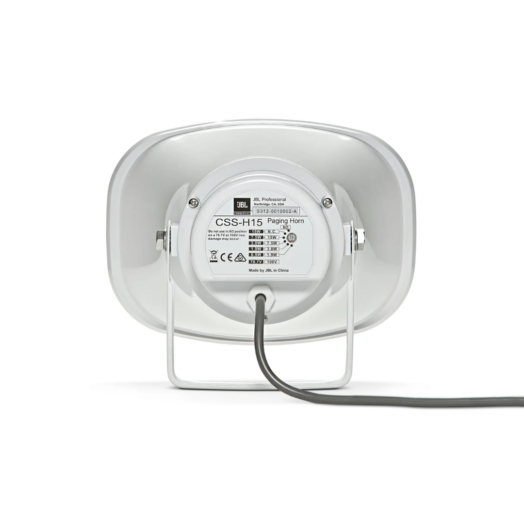

- Transformer Taps 70V: 15W, 7.5W, 3.8W, 1.9W, 0.9W
- Transformer Taps 100V: 15W, 7.5W, 3.8W, 1.9W
- Impedance: 8 Ohms in Direct Setting

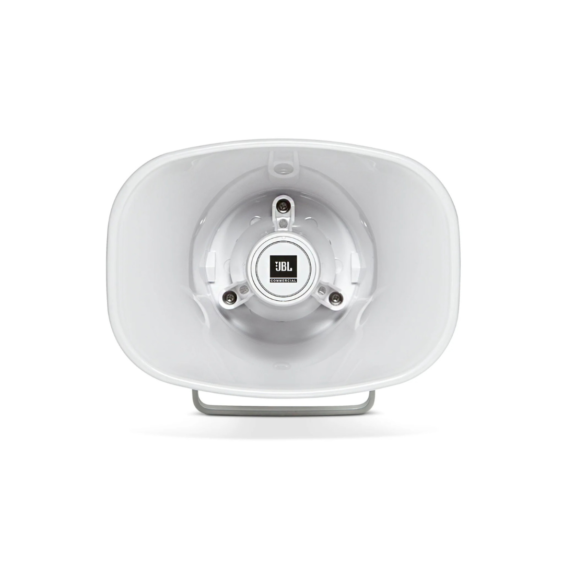

- Driver: 33 mm 1.3-inch Phenolic Diaphragm Driver
- Included Filter: Passive 350 Hz High-Pass Filter
- Horn Material: ABS
- Mounting Hardware: Stainless Steel Powder-Coated U-Bracket
- Input Connector: 300 mm Pigtail to Bare Wire
- Outdoor Rating: IP-65
- Safety Rating: Transformer UL Registered per UL1876
- Color: RAL9016
- Dimensions: 163 x 222 x 232 mm
- Dimensions with Bracket: 181 x 222 x 232 mm
- Net Weight: 1.36 kg
- Shipping Weight: 1.68 kg
