Description

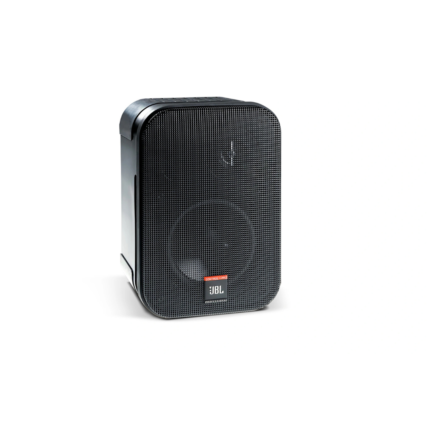

The CSS-1S/T is a compact two-way loudspeaker designed for 100V or 70V distributed speaker systems as well as 8 ohm direct operation. It features a 5.25-inch low-frequency driver and a 0.75-inch polycarbonate dome tweeter to deliver clear full-range sound for both foreground and background music. With excellent speech clarity, multi-tap transformer support, and an included wall-mounting bracket, it is ideal for commercial spaces, offices, classrooms, retail stores, restaurants, and public address applications.
More Information
Key Features
- Compact two-way loudspeaker for commercial audio applications.
- Suitable for 100V and 70V distributed speaker lines.
- 8 ohm direct mode for low-impedance operation.
- 10W multi-tap transformer for flexible installation.
- 135 mm 5.25-inch low-frequency driver.
- 19 mm 0.75-inch polycarbonate dome tweeter.
- Designed for foreground and background music.
- Voiced for maximum speech clarity and intelligibility.
- Included wall-mounting bracket for easy installation.
- Professional drivers and crossover network.
- Wide 120° x 120° nominal coverage.
- Durable polypropylene structural foam enclosure.
Technical Specification
- Product Type: Compact Two-Way Loudspeaker
- Frequency Range: 85 Hz – 18 kHz (-10 dB)
- Frequency Response: 120 Hz – 16 kHz (±3 dB)
- Power Capacity: 60W
- Sensitivity: 86 dB SPL, 1W at 1m
- Maximum SPL: 106 dB at 8 Ohm Direct Setting
- Maximum SPL at 10W Setting: 96 dB
- Nominal Coverage: 120° H x 120° V
- Directivity Factor: 6.2
- Directivity Index: 7.9 dB
- Nominal Impedance: 8 Ohms in Direct Mode
- Transformer Taps: 10W, 5W, 2.5W at 70V
- Crossover Frequency: 4.3 kHz
- LF Driver: 135 mm 5.25-inch Low Frequency Driver
- HF Driver: 19 mm 0.75-inch Polycarbonate Dome Tweeter
- Input Connectors: Spring-Loaded Terminals
- Enclosure Material: Polypropylene Structural Foam
- Color: Black
- Dimensions: 229 x 159 x 143 mm
- Net Weight: 2.0 kg each
- Shipping Weight: 4.8 kg pair
