Description

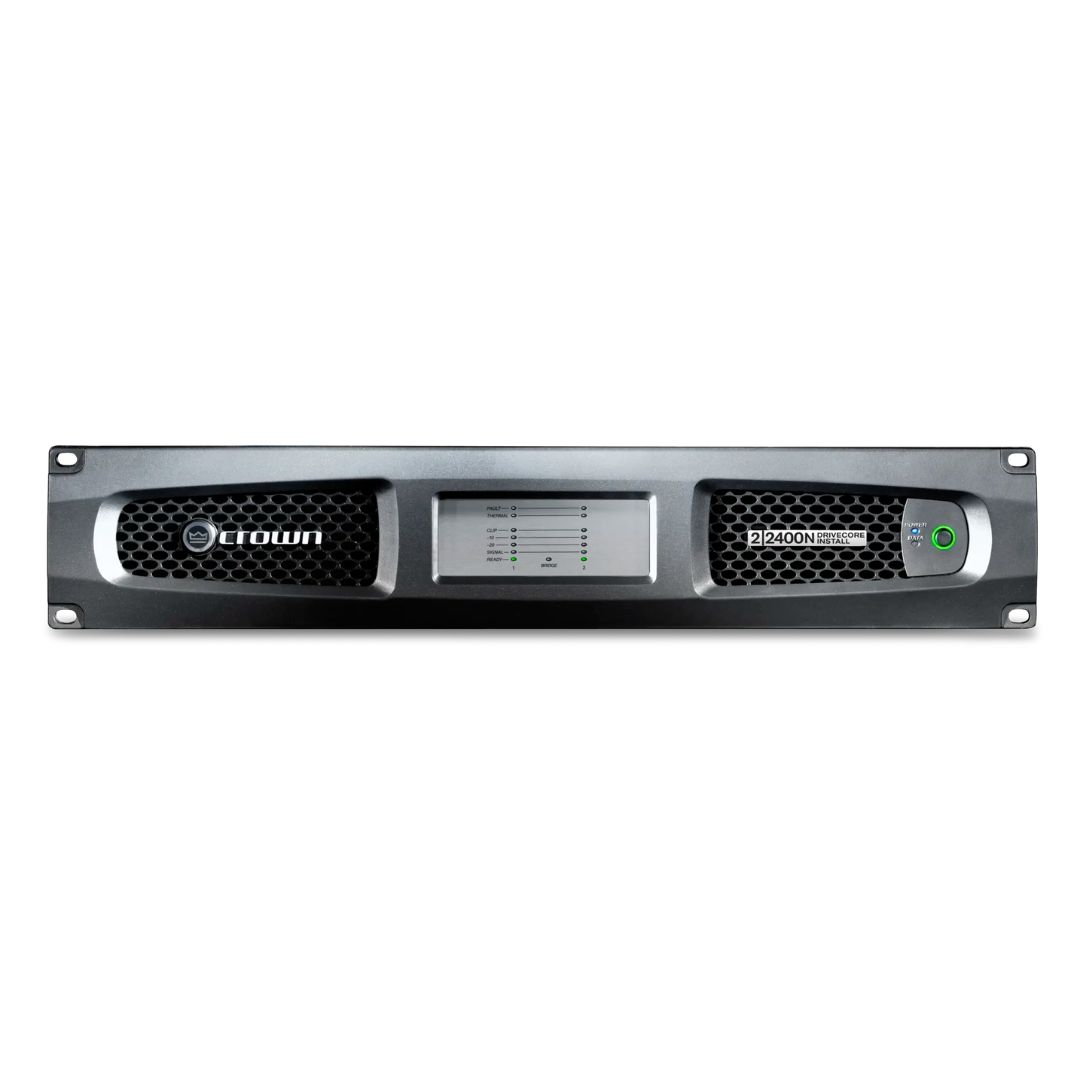

The Crown DCi 2|2400N is a high-performance two-channel power amplifier designed for professional installed audio applications requiring exceptional power, advanced DSP processing, and comprehensive network control. Delivering 2400W per channel at 4Ω, the amplifier supports both low-impedance and 70V/100V distributed audio systems, making it ideal for large-scale commercial, hospitality, education, transportation, and life-safety installations.
Featuring integrated BLU-Link digital audio transport, HiQnet™ network monitoring, programmable GPIO control, and powerful onboard DSP, the DCi 2|2400N provides flexible system integration, reliable operation, and precise loudspeaker management in demanding environments.
Key Features
- Two-channel power amplifier with 2400W per channel @ 4Ω
- Integrated BLU-Link digital audio networking
- Supports both analog and digital audio inputs
- Priority input routing with automatic source failover
- HiQnet™ network monitoring and remote control
- Advanced onboard DSP processing
- LevelMAX™ limiters for loudspeaker protection
- Input and output EQ processing
- Crossover configuration and speaker management
- Delay processing for system alignment
- Matrix mixer functionality
- Speaker line monitoring capability
- Programmable GPIO ports for automation and control
- Supports low-impedance and 70V/100V distributed systems
- Bridgeable output channels for higher power applications
- High-efficiency cooling system with variable-speed fans
- Designed for professional installed audio and life-safety applications
Technical Specifications
Model: Crown DCi 2|2400N
Amplifier Type: Network Power Amplifier with BLU-Link
Output Channels: 2
Power Output: 2400W per channel @ 4Ω
Frequency Response: ±0.25 dB (20 Hz – 20 kHz)
Total Harmonic Distortion (THD): 0.35%
Damping Factor: >5000 (20 Hz – 100 Hz)
Load Impedance (Stereo Mode): 2Ω – 16Ω, 70V/100V
Load Impedance (Bridge Mode): 4Ω – 16Ω, 140V/200V
DSP Functions:
- LevelMAX™ Limiters
- Input/Output EQ
- Crossover
- Delay
- Matrix Mixer
- Speaker Line Monitoring
Audio Networking: BLU-Link
Network Control: HiQnet™
GPIO: Programmable General Purpose I/O
Cooling System: Variable-speed forced-air cooling (front-to-back airflow)
AC Power Requirement: 100–240V AC, 50/60 Hz
Power Connector: 20A IEC
Dimensions (W × H × D):
483 × 89 × 483 mm
(19 × 3.5 × 19 in)
Weight: 10.9 kg (24 lbs)
