Description

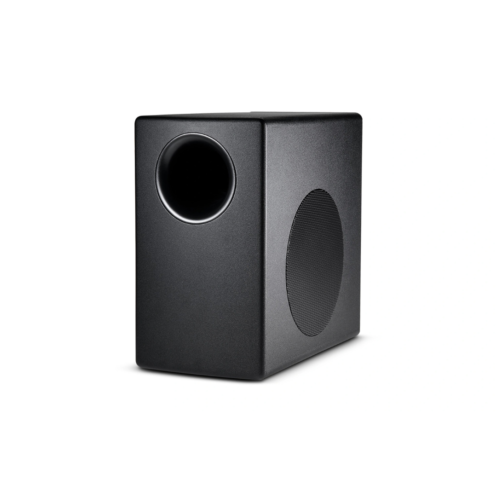

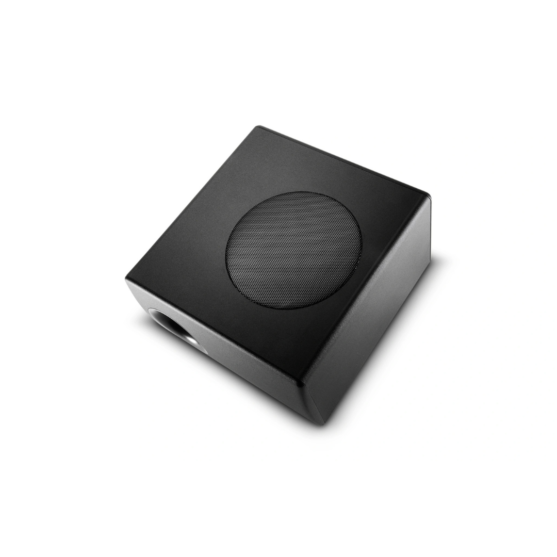

The Control 50S/T is a compact high-performance subwoofer designed to deliver deep low-frequency reinforcement for high-fidelity installed sound systems. It features a powerful 200 mm 8-inch long-excursion driver with a high-mass cone, 4-layer copper voice coil, aluminum former, and rubber half-roll surround for strong bass response and reliable performance. With selectable 70V/100V operation, low-impedance bypass mode, and support for two or four satellite speakers, it is ideal for restaurants, retail spaces, hotels, offices, conference rooms, and commercial background music systems.
More Information
Key Features
- Compact high-performance subwoofer for installed sound systems.
- 150W continuous pink noise power and 600W peak capability.
- 200 mm 8-inch long-excursion low-frequency driver.
- High-mass cone for extended low-frequency response.
- 38 mm 1.5-inch 4-layer copper voice coil.
- Aluminum former for improved transient response.
- Rubber half-roll surround for enhanced bass performance.
- Selectable 70V/100V operation for distributed speaker lines.
- 8 ohm bypass/thru mode for low-impedance systems.
- Supports two or four satellite speakers per system.
- Full system bandwidth from 32 Hz to 20 kHz with compatible satellites.
- Available in black or white finish.
Technical Specification
- Product Type: Installation Subwoofer
- Frequency Range: 32 Hz – 200 Hz (-10 dB)
- Frequency Response: 50 Hz – 150 Hz (±3 dB)
- Power Capacity: 300W Continuous Program Power
- Continuous Pink Noise Power: 150W
- Long-Term Program Power: 200W
- Long-Term Pink Noise Power: 100W
- Sensitivity: 95 dB near corner, 89 dB center of wall
- Maximum SPL: 115 dB average, 121 dB peak near corner
- Maximum SPL Center of Wall: 109 dB average, 115 dB peak
- Nominal Impedance: 8 Ohms in Bypass/Thru Mode
- Transformer Taps: 80W, 40W, 20W, 10W at 70V
- Driver: 200 mm 8-inch Polypropylene Cone Driver
- Voice Coil: 38 mm 1.5-inch 4-Layer Copper-Clad Coil
- Former: Vented Aluminum Former
- Surround: Butyl Rubber Surround
- Input Connectors: Six Removable Locking 2-Pin Connectors
- Maximum Wire Size: 12 AWG / 2.5 mm²
- Enclosure: Structural Plywood with MDF Port and Terminal Panels
- Grille: Painted Zinc-Plated Metal
- Cabinet Dimensions: 356 x 391 x 203 mm
- Wall Bracket Depth: 15 mm
- Mounting Hardware: Zinc-Plated Painted Cold-Rolled Steel
- Net Weight: 9.0 kg
- Shipping Weight: 10.2 kg
