Description

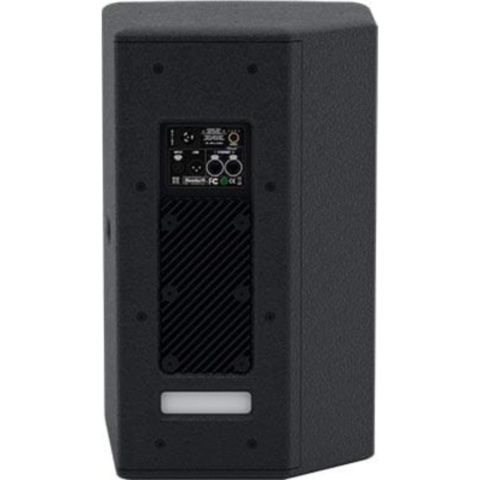

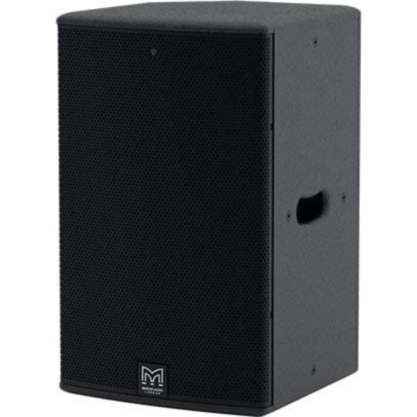

The CDD-LIVE 12 is a compact, high-performance self-powered loudspeaker that delivers exceptional sound quality, high output, and consistent coverage for professional sound reinforcement applications. Featuring Coaxial Differential Dispersion™ technology, integrated DSP, Dante networking, and 2500W of Class D amplification, it is ideal for touring, theatres, Houses of Worship, corporate AV events, concert halls, and stage monitoring.
More Information
Key Features
- Compact self-powered two-way loudspeaker
- Coaxial Differential Dispersion™ technology
- 12″ LF driver with 2.5″ voice coil
- 1″ HF compression driver with 1.7″ voice coil
- 2500W peak Class D amplification
- Integrated DSP with FIR filtering
- Dante audio networking support
- VU-Net software control via TCP/IP
- User-selectable operating presets
- Up to 200ms input delay
- Pole-mount and stage monitor configurations
- Wide-range power supply with PFC
- 15 × M8 rigging points
- Durable plywood enclosure
- Optional IP24 weather-resistant version
Technical Specifications
- Type: Compact, Coaxial Differential Dispersion powered two-way system
- Frequency Response: 62Hz – 20kHz (±3dB), -10dB @ 50Hz
- LF Driver: 12″ (300mm) with 2.5″ (63.5mm) voice coil
- HF Driver: 1″ (25mm) exit compression driver with 1.7″ (44mm) voice coil
- Maximum SPL: 122dB continuous, 128dB peak
- Dispersion: 110°–60° horizontal, 60° vertical (user-rotatable)
- Crossover Frequency: 1.5kHz Active LR8
- Amplifier Power: 2500W total (2000W LF + 500W HF)
- Amplifier Type: Multi-channel Class D
- Audio Inputs: Female XLR, Dante Ethercon
- Audio Output: Male XLR Link
- DSP Functions: PEQ, shelving filters, HPF, FIR filters, delay
- Network Protocols: TCP/IP, UDP/IP
- Cooling: Convection cooled with internal fan
- Power Supply: 85–265V AC, 50/60Hz with PFC
- Power Consumption: 550W
- Mains Connector: Neutrik® Powercon True1
- Enclosure: Multi-laminate plywood
- Finish: Textured black PU coating
- Grille: HEX-perforated steel grille with cloth backing
- Mounting: Pole socket, 15 × M8 mounting points
- Handles: 2 side pocket handles
- Dimensions: 359 × 580 × 373mm
- Weight: 28kg
