Description

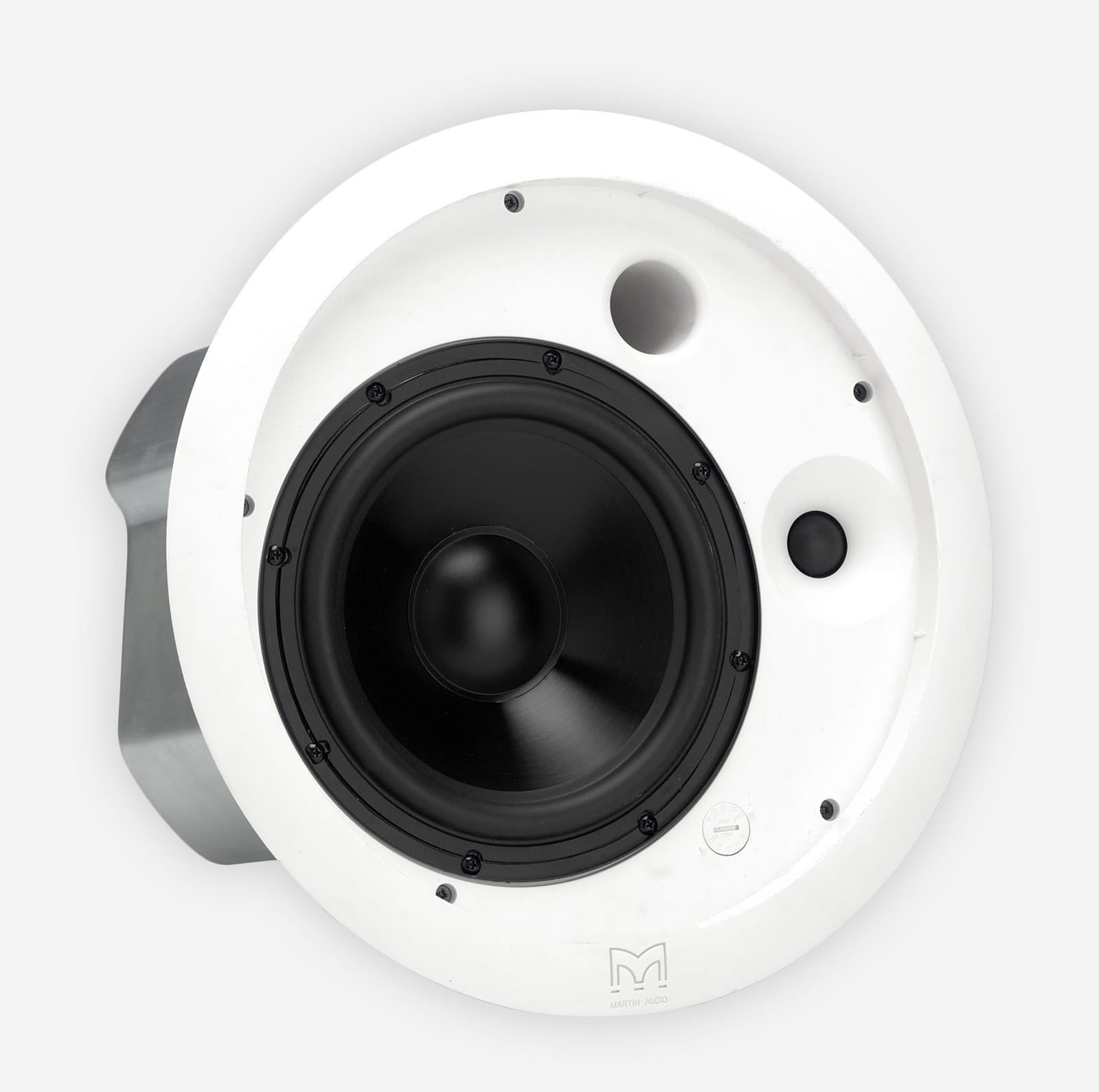

The C8.1T is a high-performance two-way ceiling loudspeaker designed specifically for installations with higher ceilings and acoustically challenging environments. Its high SPL capability and controlled 90° conical dispersion provide excellent speech intelligibility and consistent coverage in reverberant spaces. Featuring an 8″ polypropylene bass driver and a horn-loaded 1″ dome tweeter, the C8.1T delivers clear, natural sound reproduction for commercial, hospitality, educational, and public address applications.
More Information
Key Features
- High-performance two-way ceiling loudspeaker
- Designed for higher ceiling installations
- 8″ (200mm) polypropylene bass driver
- 1″ (25mm) horn-loaded dome tweeter
- Controlled 90° conical dispersion
- High SPL capability for demanding applications
- Steel backcan enclosure
- Integrated 70V/100V line transformer
- Excellent speech intelligibility
- White UV-resistant paintable bezel and grille
- Supplied with tile rails, C-bracket and mounting accessories
- Suitable for commercial and public address installations
Technical Specifications
- Type: Ceiling-Mounted Two-Way Vented Enclosure
- Frequency Response: 80Hz – 18kHz (±3dB)
- Low Frequency Extension: 50Hz (-10dB)
- LF Driver: 8″ (200mm) UL94V-0 Polypropylene Bass Driver
- HF Driver: 1″ (25mm) Dome Tweeter
- Rated Power: 125W AES, 500W Peak
- Sensitivity: 91dB
- Maximum SPL: 110dB Continuous, 116dB Peak
- Nominal Impedance: 16Ω
- Dispersion: 90° Conical up to 7kHz
- Crossover Frequency: 3kHz Passive
- Voltage Taps (100V): 60W, 30W, 15W
- Voltage Taps (70V): 60W, 30W, 15W, 7.5W
Dimensions
- Overall Diameter: 354 mm (13.9 in)
- Depth: 258 mm (10.2 in)
Cut-Out Diameter
- 308 mm (12.14 in)
Weight
- 6.7 kg (14.8 lbs)
