Description

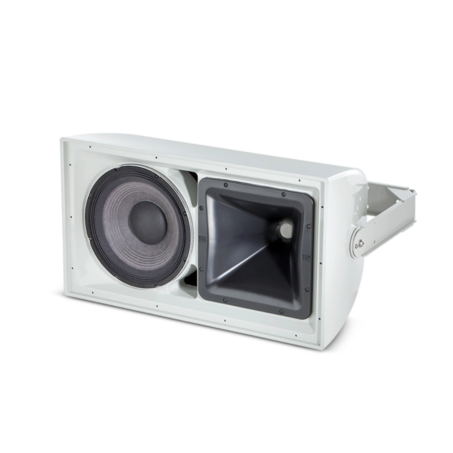

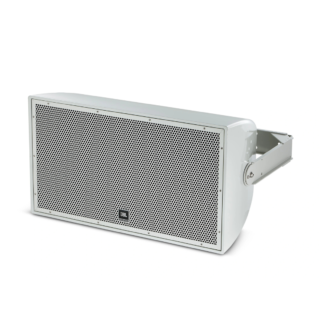

The AW266-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.
More Information
Key Features
- 60° x 60° coverage
- EN 54-24 compliant for life safety applications
- 12-inch JBL 2262H Differential Drive® LF driver
- JBL 2432H high-frequency compression driver
- PT™ Progressive Transition waveguide
- Weather-resistant all-fiberglass enclosure
- 400 W 70V/100V transformer included
- U-type mounting bracket included

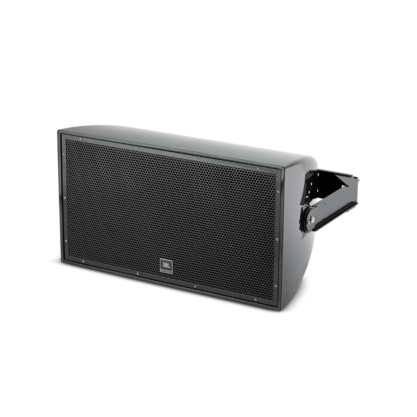

- Available in Gray and Black finish
Technical Specification
- Speaker Type: Passive all-weather loudspeaker
- Configuration: 2-way full-range
- LF Driver: 1 x JBL 2262H, 300 mm / 12 inch Differential Drive® driver
- LF Voice Coil: 75 mm / 3 inch dual voice coil
- HF Driver: JBL 2432H, 38 mm / 1.5 inch exit compression driver
- HF Voice Coil: 75 mm / 3 inch
- Coverage Pattern: 60° x 60° waveguide
- Frequency Range: 54 Hz – 20 kHz
- Frequency Response: 102 Hz – 18 kHz
- Directivity Factor: 15.8
- Directivity Index: 12 dB
- Crossover Frequency: 1.1 kHz
- System Power Rating: 400 W / 1600 W peak, 100 hours
- Maximum SPL at 1m: 125 dB SPL / 131 dB peak
- Maximum SPL at 4m: 112.45 dB
- System Sensitivity: 98 dB SPL, 1W @ 1m
- Sensitivity: 87.16 dB SPL, 1W @ 4m
- Transformer Taps: 70V: 400 W, 200 W, 100 W
- Transformer Taps: 100V: 400 W, 200 W
- Nominal Impedance: 8 ohms
- LF Sensitivity: 96 dB SPL
- HF Sensitivity: 113 dB SPL
- Waveguide: PT-H66HF-1
- Enclosure: Hand-laminated fiberglass, gray gelcoat
- Finish: Gray; Black available as -BK version
- Suspension Attachment: 2 x M10 for included U-bracket, 2 x M6 for aiming stabilization, 1 x M10 rear safety point
- Grille: 16-gauge powder-coated stainless steel with foam and stainless steel mesh
- Input Connector: CE-compliant covered barrier strip terminals
- Environmental Rating: IP55C per IEC 529
- Dimensions: 409 x 732 x 452 mm
- Net Weight: 25.2 kg / 55.5 lb
