Description

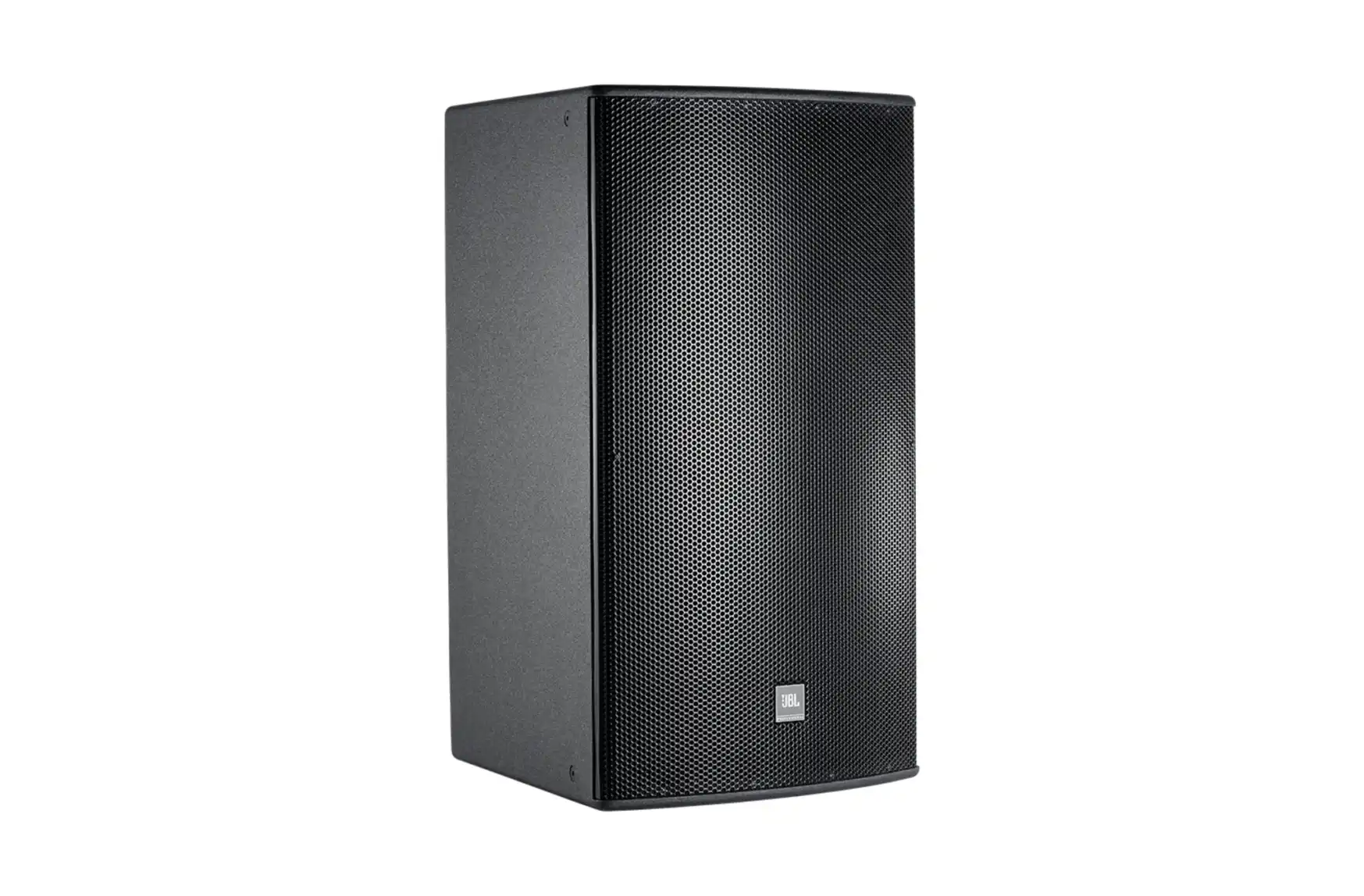

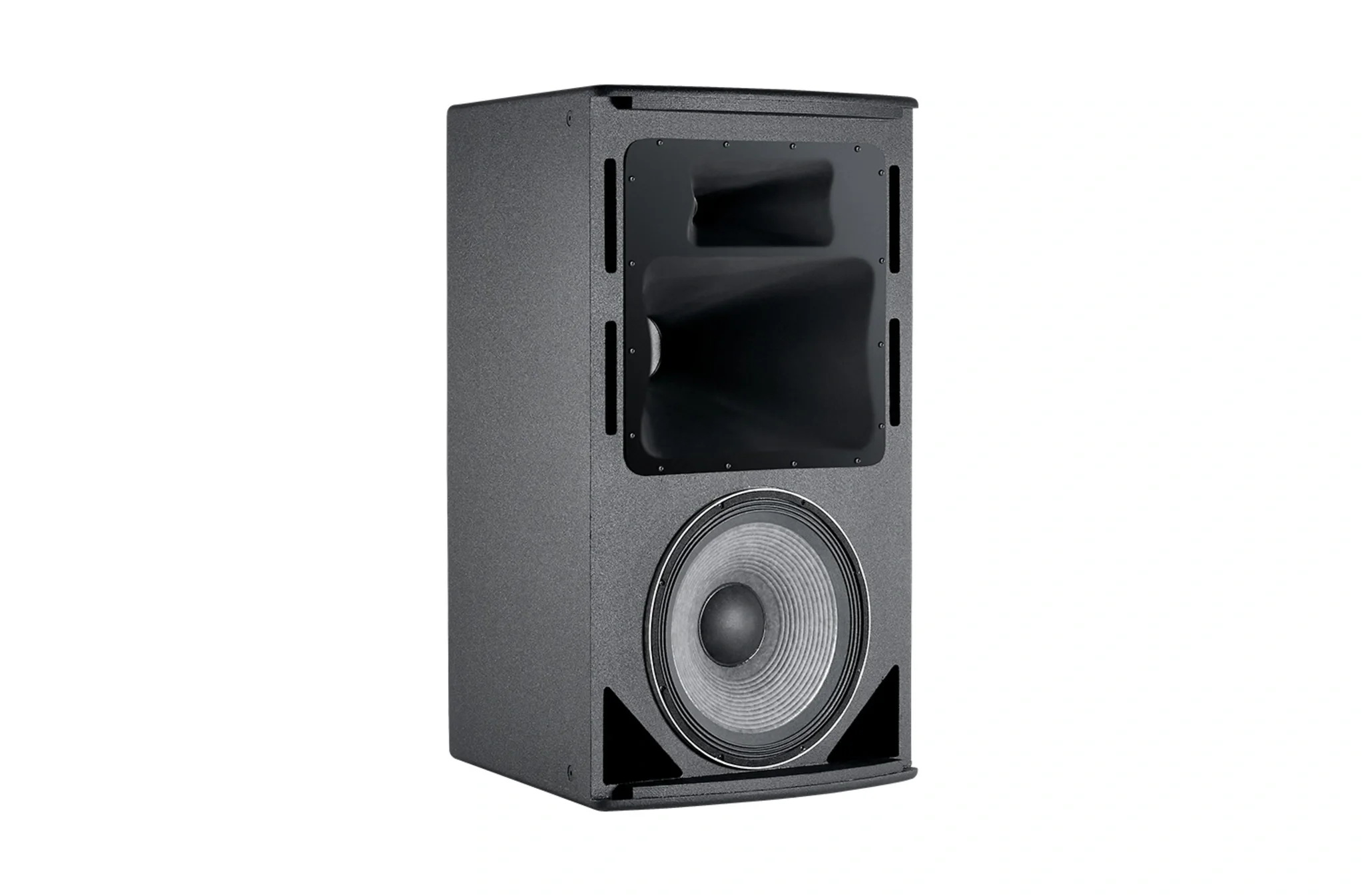

The JBL AM7315/95 is a high-power, 3-way full-range loudspeaker system. It uses a JBL 2265H 15-inch Differential Drive® low-frequency driver, a JBL CMCD-82H 8-inch cone midrange compression driver, and a JBL 2432H high-frequency compression driver. The multi-band PT™ Progressive Transition waveguide provides 90° x 50° coverage and is rotatable for vertical or horizontal cabinet positioning.
More Information
Key Features
- 90° x 50° coverage
- 15-inch JBL 2265H Differential Drive® LF driver
- JBL CMCD-82H cone midrange compression driver
- JBL 2432H high-frequency compression driver
- PT™ Progressive Transition waveguide
- Rotatable waveguide for vertical or horizontal orientation
- Tri-Amp / Bi-Amp switchable operation
- High-slope crossover design
- Optional planar array frame kit
- M10 suspension points for fixed installation
Technical Specification
- Speaker Type: Passive loudspeaker
- Configuration: 3-way full-range
- System Type: 15-inch high-power 3-way loudspeaker
- LF Driver: 1 x JBL 2265H, 380 mm / 15 inch Differential Drive® driver
- LF Voice Coil: 75 mm / 3 inch dual voice coil
- Midrange Driver: JBL CMCD-82H cone midrange compression driver
- Midrange Driver Size: 200 mm / 8 inch
- HF Driver: JBL 2432H, 38 mm / 1.5 inch exit compression driver
- HF Voice Coil: 75 mm / 3 inch
- Coverage Pattern: 90° x 50°
- Frequency Range: 38 Hz – 20 kHz
- Frequency Response: 45 Hz – 18 kHz
- Directivity Factor: 11
- Directivity Index: 10.5 dB
- Crossover Modes: Tri-Amp / Bi-Amp switchable
- Crossover Frequencies: 300 Hz and 2.2 kHz
- LF Power Rating: 1000 W / 4000 W peak, 2 hours
- LF Power Rating: 750 W / 3000 W peak, 100 hours
- MF Power Rating: 350 W / 1400 W peak, 2 hours
- HF Power Rating: 100 W / 400 W peak, 2 hours
- Long-Term System Power Rating LF: 600 W / 2400 W peak, 100 hours
- Long-Term System Power Rating MF/HF: 200 W / 800 W peak, 100 hours
- Maximum SPL LF: 127 dB continuous / 133 dB peak
- Maximum SPL Tri-Amp MF: 133 dB continuous / 139 dB peak
- Maximum SPL Tri-Amp HF: 133 dB continuous / 139 dB peak
- Maximum SPL Bi-Amp MF/HF: 133 dB continuous / 139 dB peak
- Sensitivity LF: 97 dB SPL
- Sensitivity MF: 108 dB SPL
- Sensitivity HF: 113 dB SPL
- Nominal LF Driver Impedance: 8 ohms
- Nominal MF Driver Impedance: 8 ohms
- Nominal HF Driver Impedance: 8 ohms
- Waveguide: PT-K95MH
- Enclosure: Trapezoidal with 15° side angles, 16 mm exterior-grade 11-ply Finnish birch plywood
- Suspension: 13 x M10 threaded attachment points
- Finish: Black DuraFlex™ finish; white available upon request
- Grille: Powder-coated 14-gauge perforated steel grille with acoustically transparent black foam backing

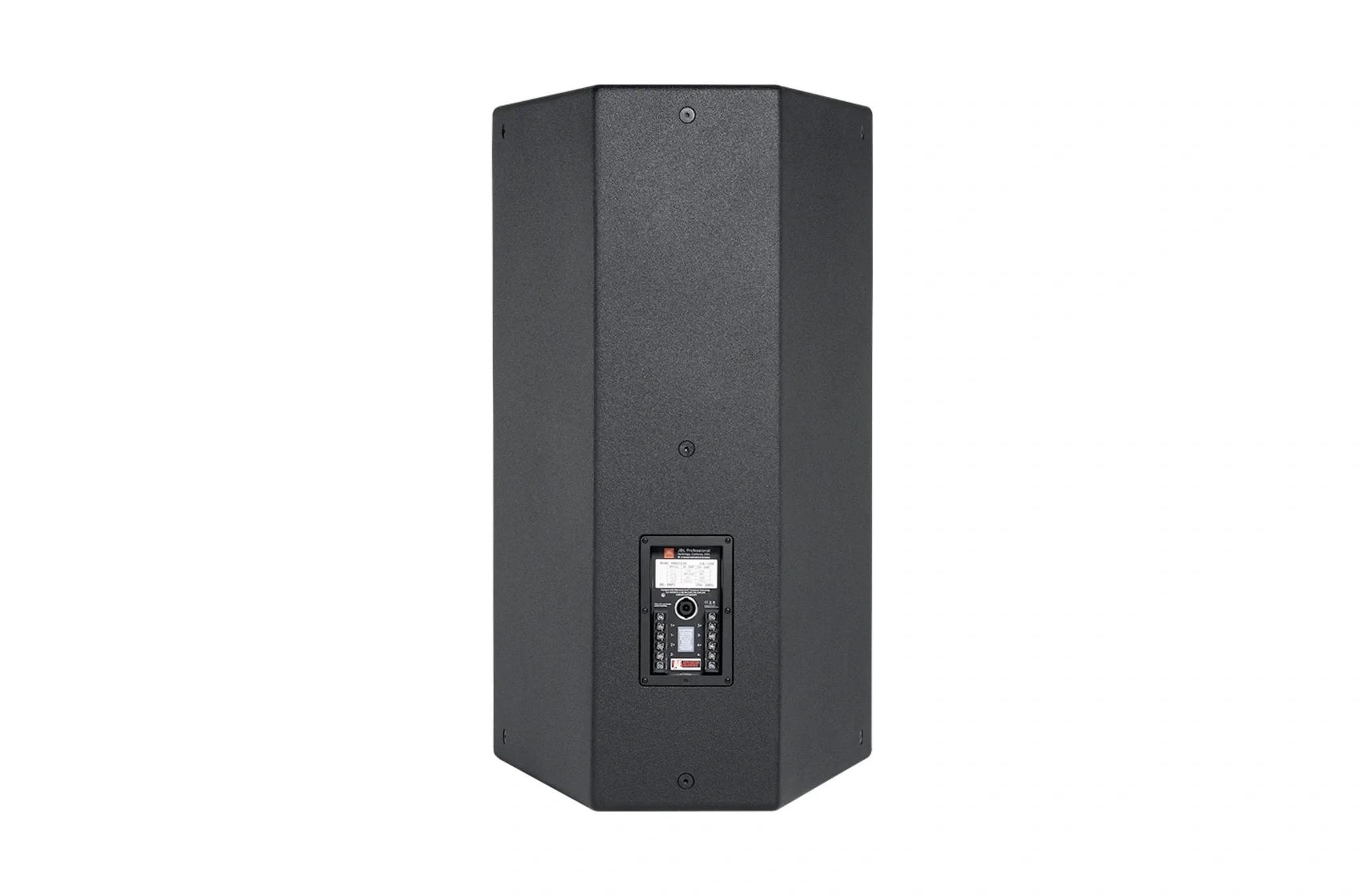

- Input Connector: NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals
- Environmental Rating: Mil-Std 810; IP-x3 per IEC529
- Dimensions: 967 x 561 x 657 mm
- Net Weight: 45.8 kg / 101 lb
