Description

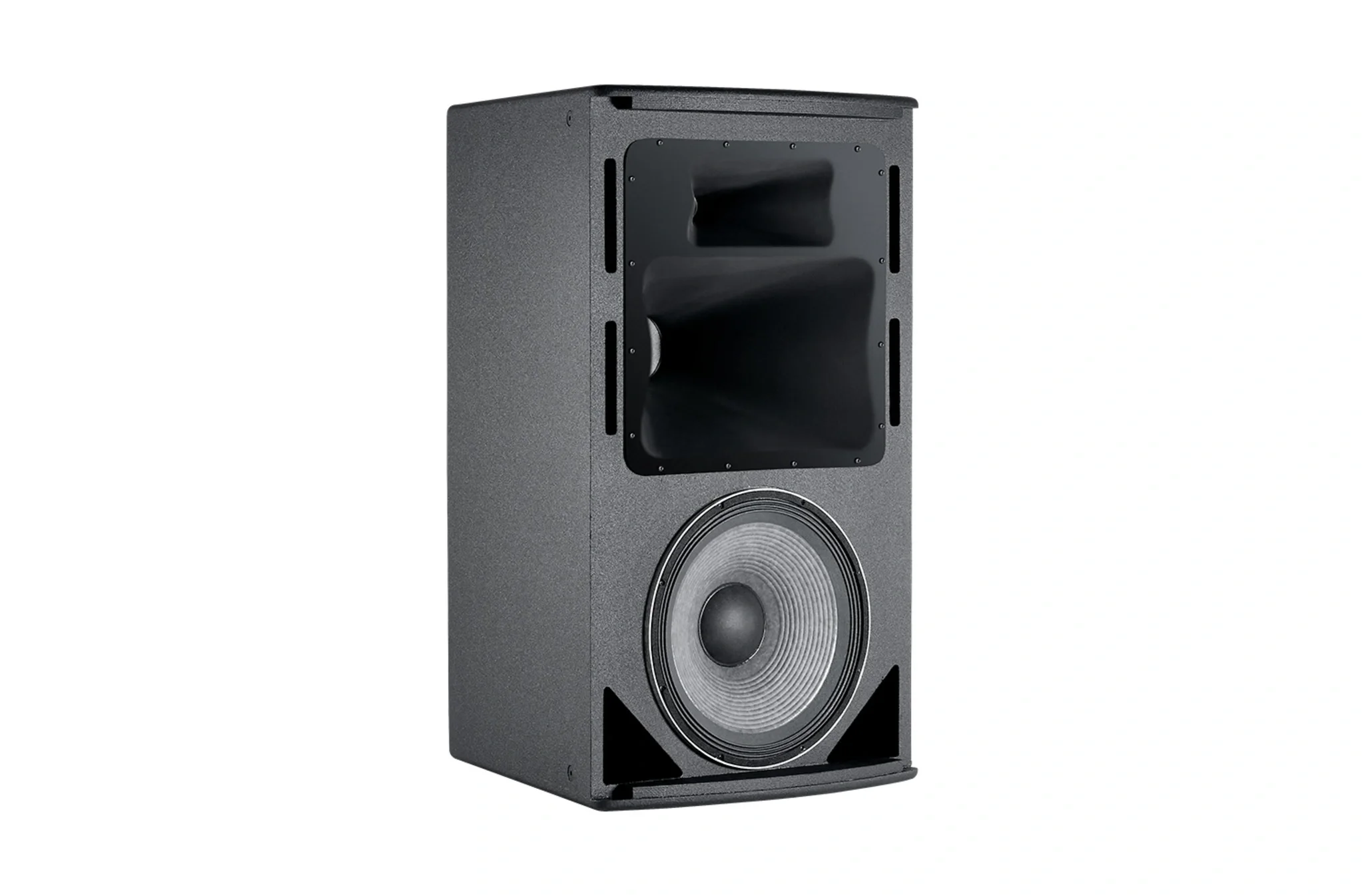

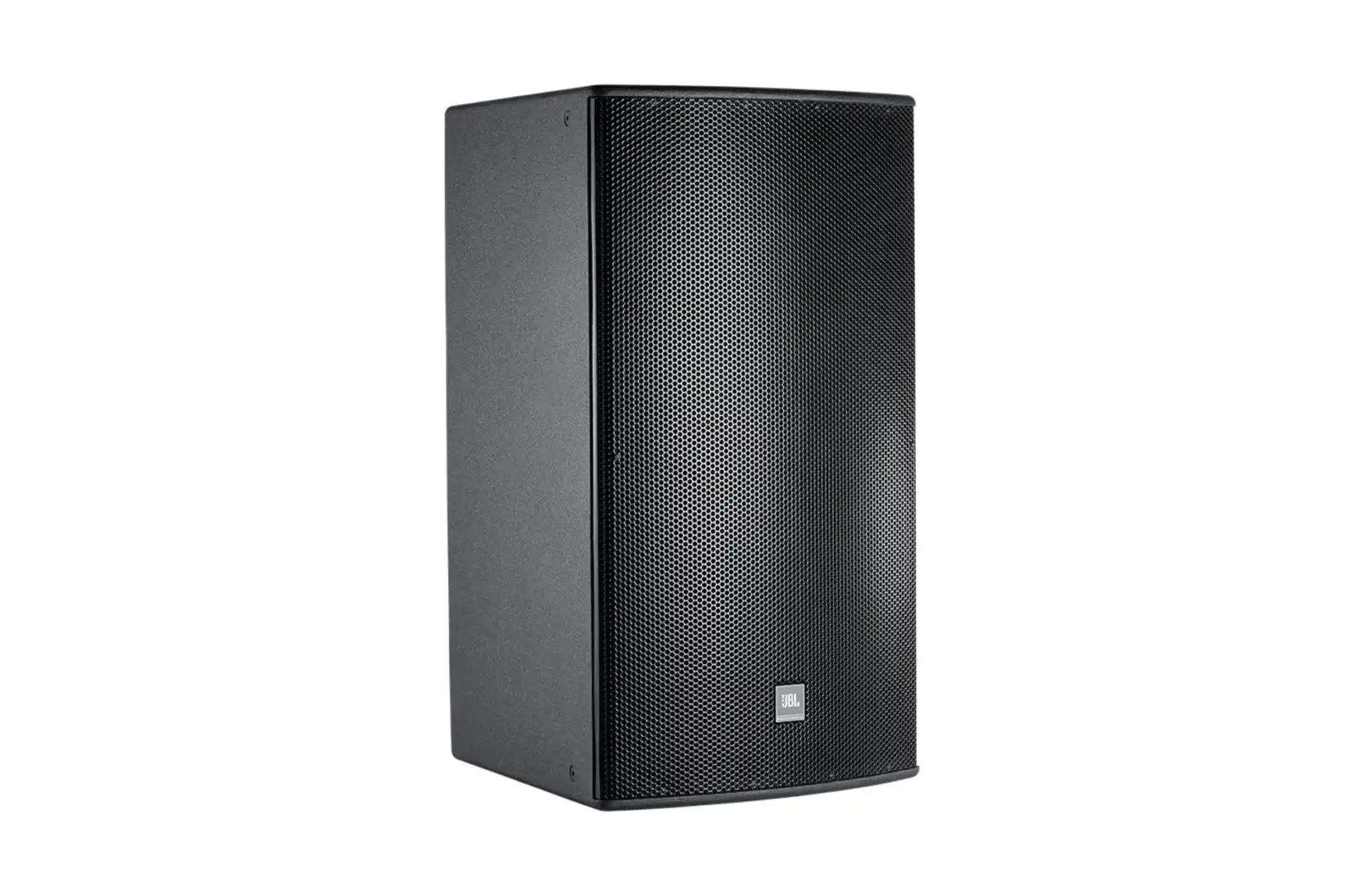

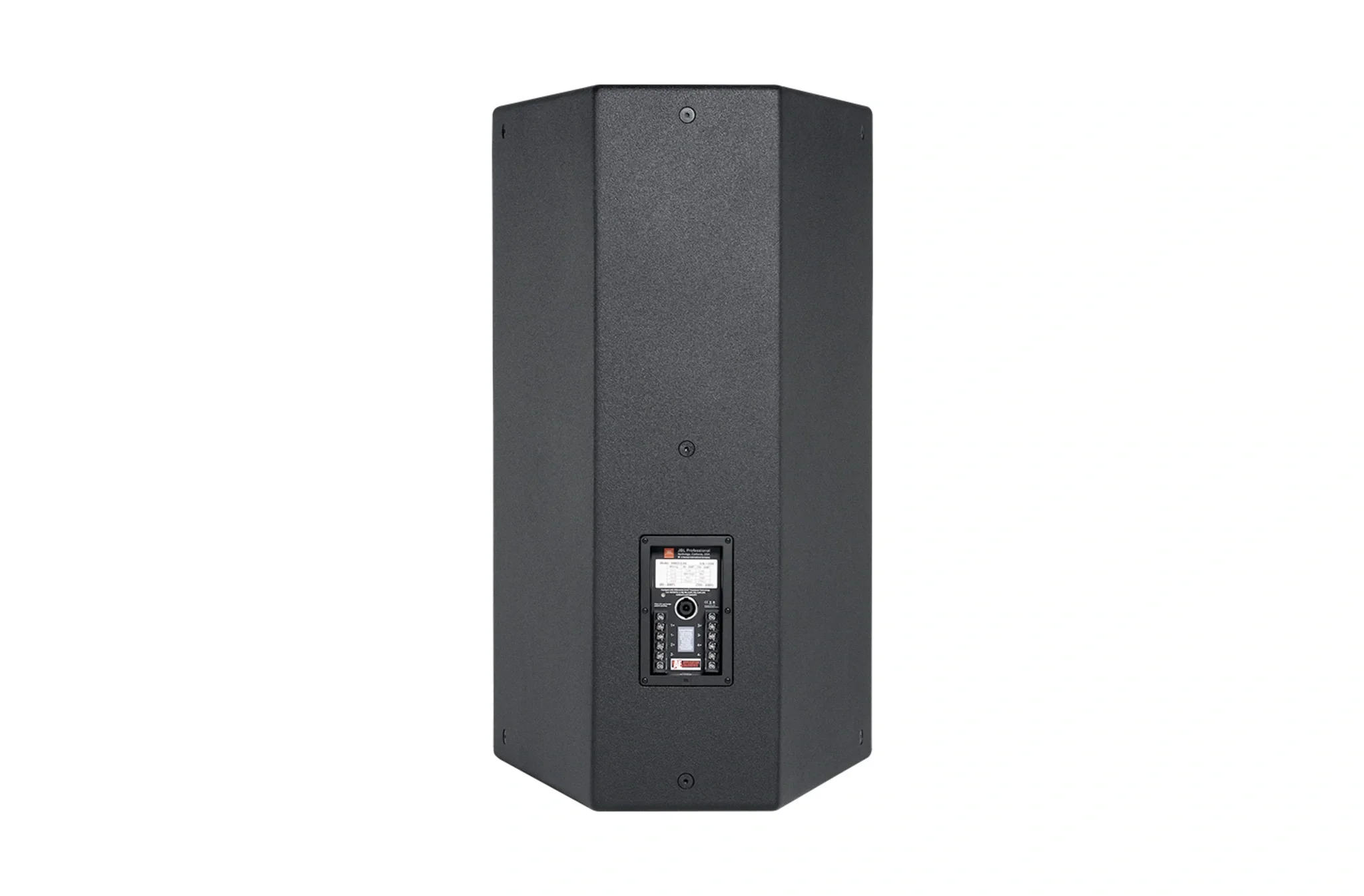

The JBL AM7315/64 is a high-power, 3-way full-range loudspeaker system. It uses a JBL 2265H 15-inch Differential Drive® low-frequency driver, a JBL CMCD-82H 8-inch cone midrange compression driver, and a JBL 2432H high-frequency compression driver. The PT™ Progressive Transition waveguide provides 60° x 40° coverage and is rotatable for vertical or horizontal installation.
More Information
Key Features
- 60° x 40° coverage
- 15-inch JBL 2265H Differential Drive® LF driver
- JBL CMCD-82H cone midrange compression driver
- JBL 2432H high-frequency compression driver
- PT™ Progressive Transition waveguide
- Rotatable waveguide for vertical or horizontal orientation
- Tri-Amp / Bi-Amp switchable operation
- High-slope crossover design
- M10 suspension points for fixed installation
- Suitable for professional installed sound applications
Technical Specification
- Speaker Type: Passive loudspeaker
- Configuration: 3-way full-range
- System Type: 15-inch high-power 3-way loudspeaker
- LF Driver: 1 x JBL 2265H, 380 mm / 15 inch Differential Drive® driver
- LF Voice Coil: 75 mm / 3 inch dual voice coil
- Midrange Driver: JBL CMCD-82H cone midrange compression driver
- Midrange Driver Size: 200 mm / 8 inch
- HF Driver: JBL 2432H, 38 mm / 1.5 inch exit compression driver
- HF Voice Coil: 75 mm / 3 inch
- Coverage Pattern: 60° x 40°
- Frequency Range: 38 Hz – 20 kHz
- Frequency Response: 45 Hz – 18 kHz
- Directivity Factor: 20
- Directivity Index: 13 dB
- Crossover Modes: Tri-Amp / Bi-Amp switchable
- Crossover Frequencies: 300 Hz and 2.3 kHz
- LF Power Rating: 1000 W / 4000 W peak, 2 hours
- LF Power Rating: 750 W / 3000 W peak, 100 hours
- MF Power Rating: 350 W / 1400 W peak, 2 hours
- HF Power Rating: 100 W / 400 W peak, 2 hours
- Long-Term System Power Rating LF: 600 W / 2400 W peak, 100 hours
- Long-Term System Power Rating MF/HF: 200 W / 800 W peak, 100 hours
- Maximum SPL LF: 127 dB continuous / 133 dB peak
- Maximum SPL Tri-Amp MF: 133 dB continuous / 139 dB peak
- Maximum SPL Tri-Amp HF: 135 dB continuous / 141 dB peak
- Maximum SPL Bi-Amp MF/HF: 133 dB continuous / 139 dB peak
- Sensitivity MF/HF Section in Bi-Amp Mode: 108 dB SPL
- LF Nominal Impedance: 8 ohms
- MF Nominal Impedance: 8 ohms
- HF Nominal Impedance: 8 ohms
- Waveguide: PT-K64MH
- Enclosure: Trapezoidal with 15° side angles, 16 mm exterior-grade 11-ply Finnish birch plywood
- Suspension: 13 x M10 threaded attachment points
- Environmental Rating: Mil-Std 810; IP-x3 per IEC529
- Dimensions: 967 x 561 x 657 mm
- Net Weight: 45.8 kg / 101 lb
