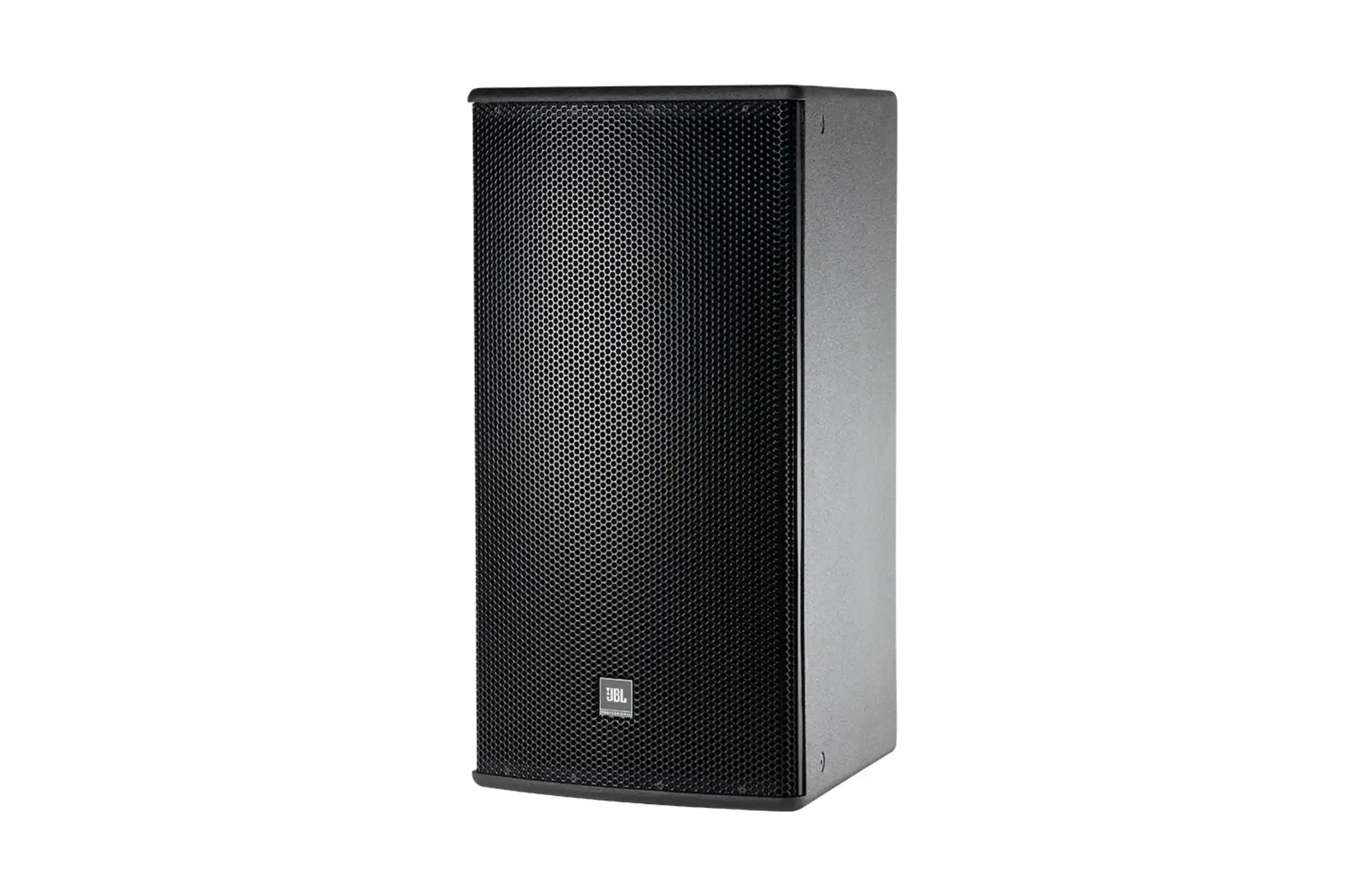

AM7215/66

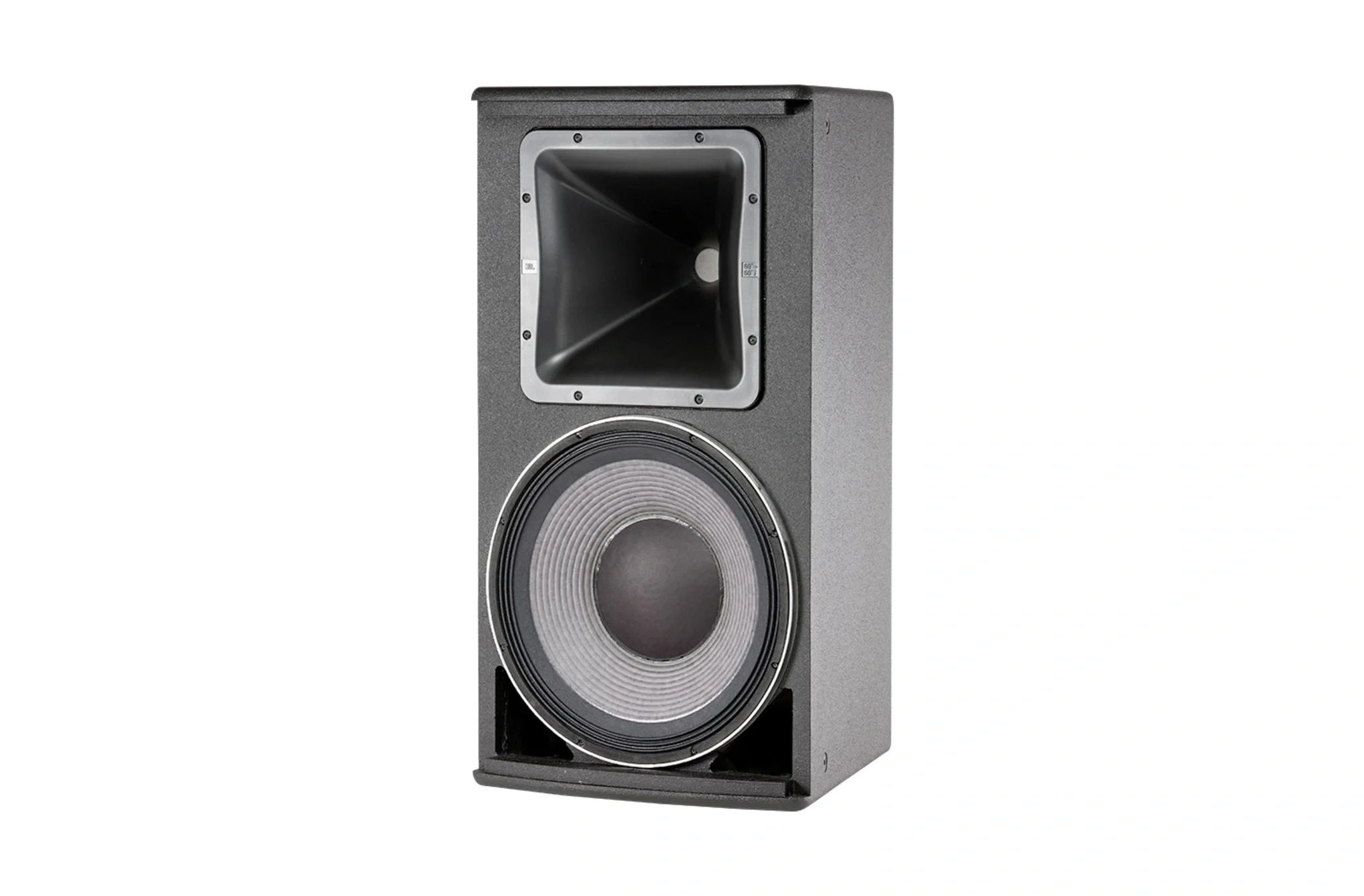

The JBL AM7215/66 is a high-power, lightweight, 2-way full-range loudspeaker system. It uses a JBL 2265H 15-inch Differential Drive® low-frequency driver and a JBL 2432H high-frequency compression driver. The large PT™ Progressive Transition waveguide provides 60° x 60° coverage and is rotatable for vertical or horizontal installation.

More Information

Key Features

60° x 60° coverage
15-inch JBL 2265H Differential Drive® LF driver
JBL 2432H high-frequency compression driver
Large PT™ Progressive Transition waveguide
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp / Passive switchable operation
High-slope passive network
Bi-Amp and Passive Mode FIR tuning support
Available in Black, White, WRC and WRX finishes

Technical Specification

Speaker Type: Passive loudspeaker
Configuration: 2-way full-range
System Type: 15-inch two-way, high-power, full-range
LF Driver: 1 x JBL 2265H, 380 mm / 15 inch Differential Drive® driver
LF Voice Coil: 75 mm / 3 inch dual voice coil
HF Driver: JBL 2432H, 38 mm / 1.5 inch exit compression driver
HF Voice Coil: 75 mm / 3 inch
Coverage Pattern: 60° x 60°
Frequency Range: 34 Hz – 20 kHz
Frequency Response: 40 Hz – 18 kHz
Crossover Modes: Bi-Amp / Passive switchable
Passive Crossover Frequency: 1.8 kHz
LF Power Rating: 1000 W / 4000 W peak, 2 hours
LF Power Rating: 750 W / 3000 W peak, 100 hours
HF Power Rating: 100 W / 400 W peak, 2 hours
Passive Mode Power Rating: 600 W / 2400 W peak, 100 hours
Maximum SPL Bi-Amp Mode LF: 128 dB continuous / 134 dB peak
Maximum SPL Bi-Amp Mode HF: 135 dB continuous / 141 dB peak
Maximum SPL Passive Mode: 124 dB continuous / 130 dB peak
System Sensitivity: 96 dB SPL passive mode
Nominal Impedance: 8 ohms
LF Driver Impedance: 8 ohms
HF Driver Impedance: 8 ohms
Enclosure: Trapezoidal with 15° side angles, 16 mm exterior-grade 11-ply Finnish birch plywood
Suspension: 15 x M10 threaded attachment points
Environmental Rating: Mil-Std 810; IP-x3 per IEC529
Dimensions: 781 x 420 x 503 mm
Net Weight: 27.2 kg / 60 lb
