Description

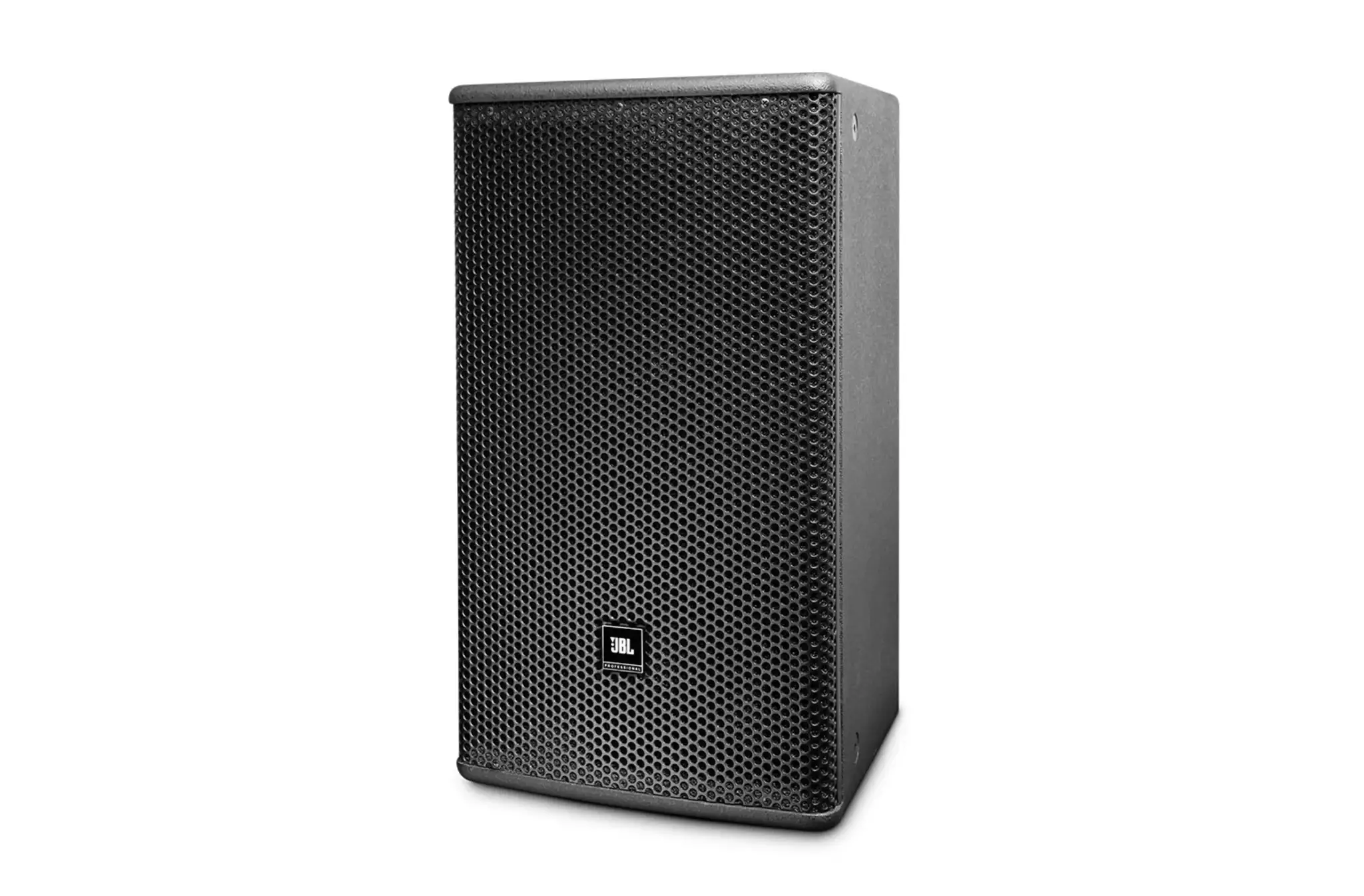

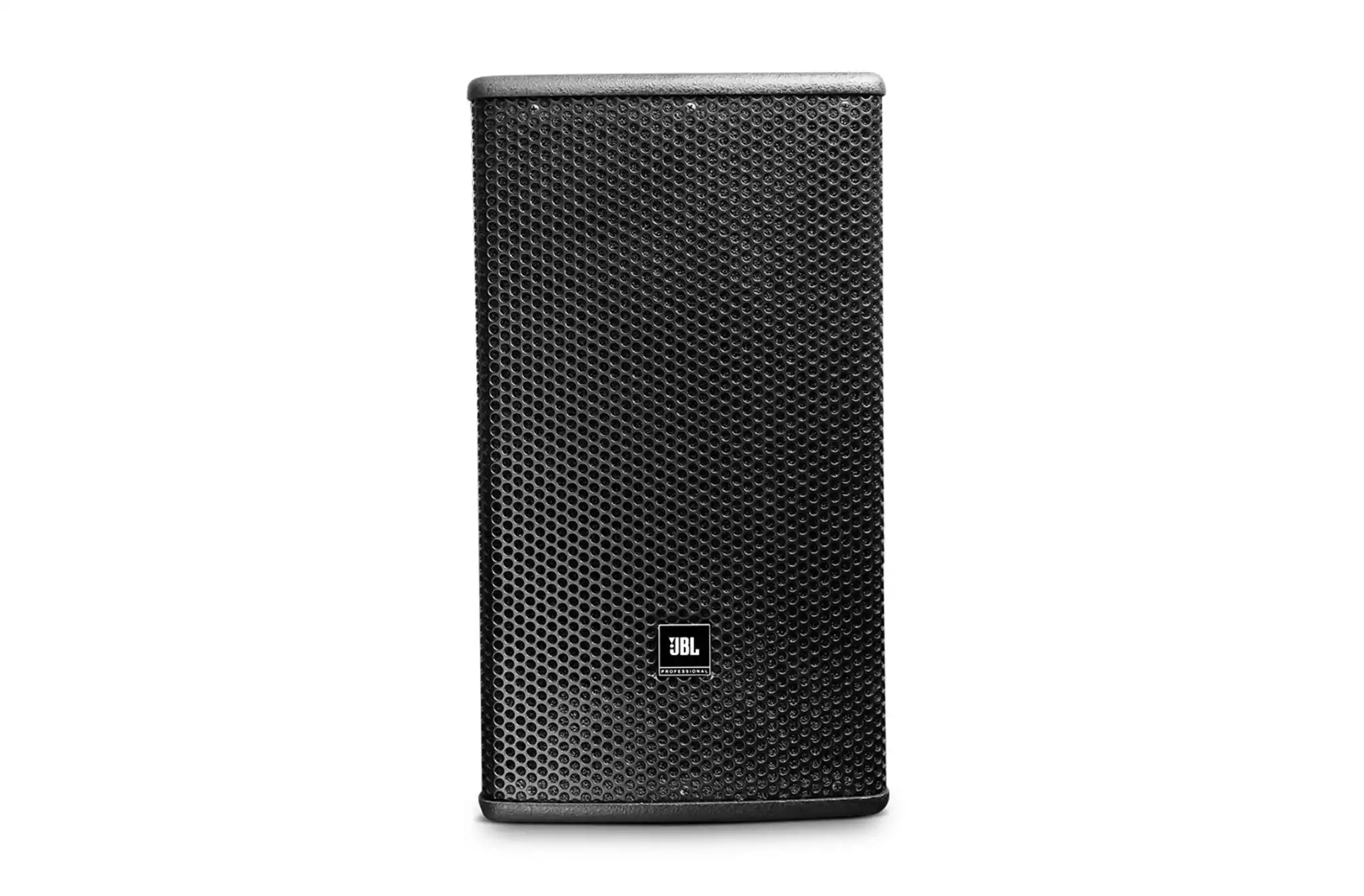

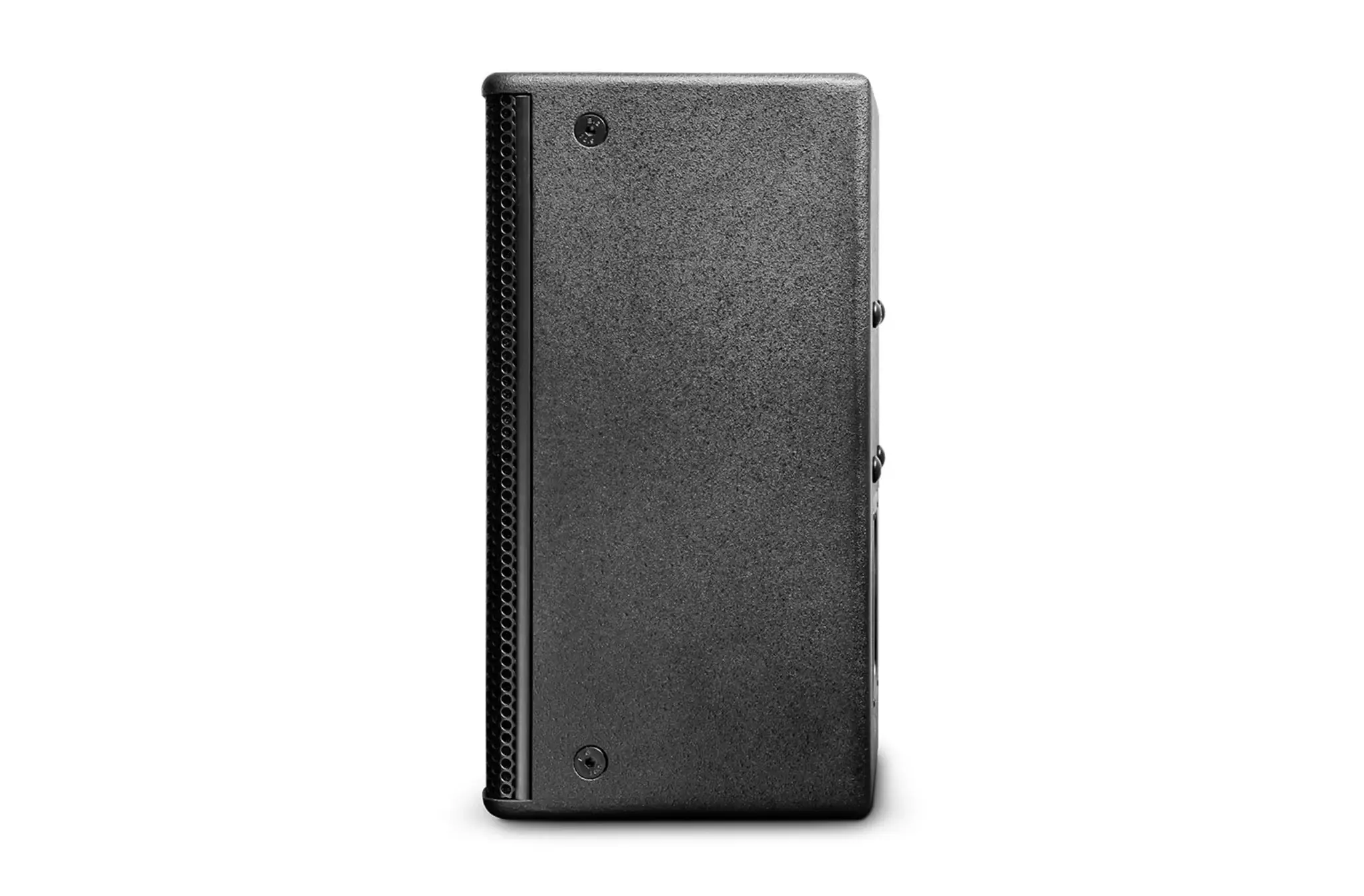

8-inch 2-Way Speaker with 90° x 50° Horn

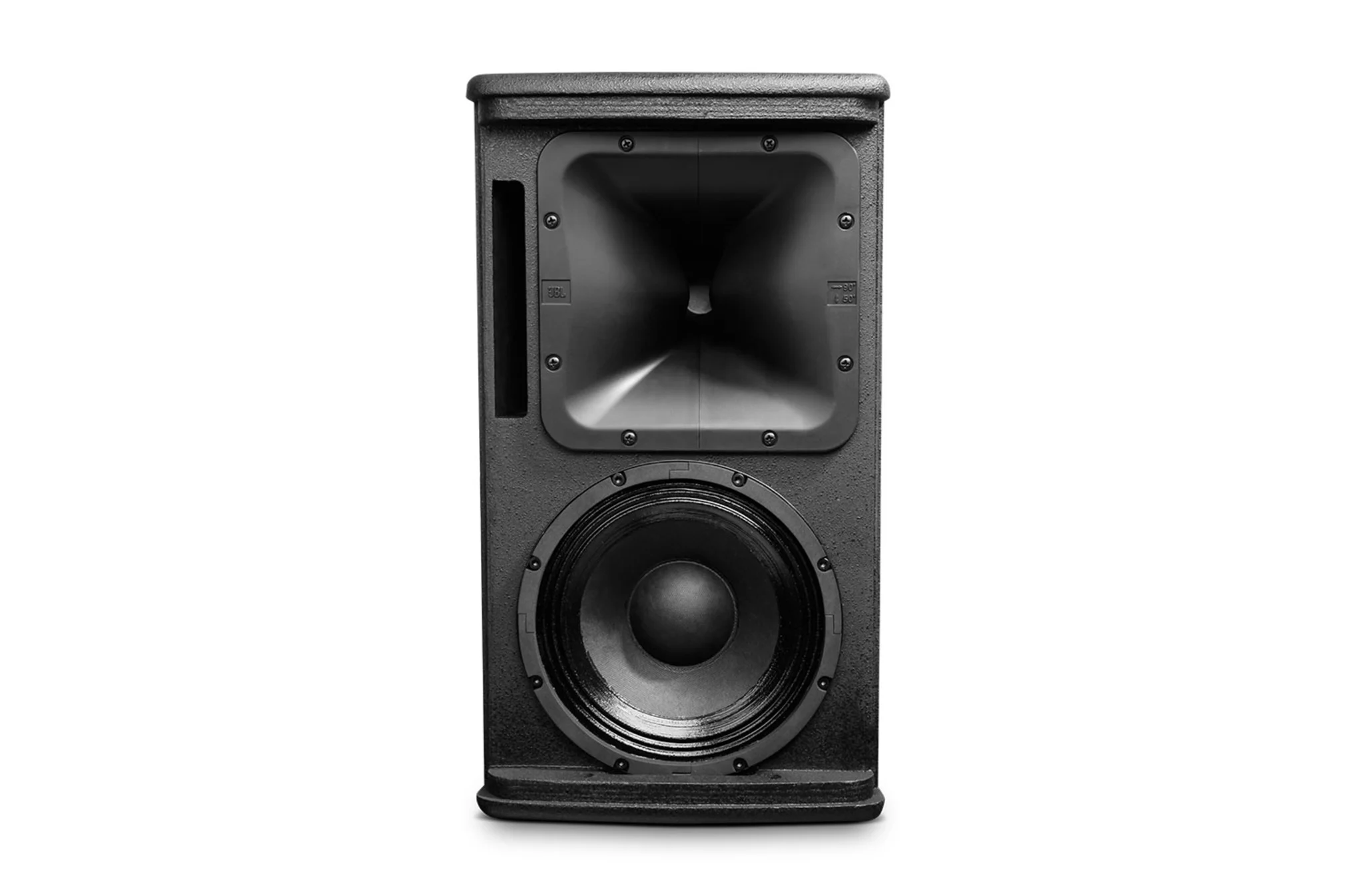

AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
More Information
Key Features
- Compact enclosure
- 209 mm (8 in) LF transducer
- 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1″) diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple Attachment Points for Ultimate Flexibility
Technical Specifications
- Type: Compact 8″ 2-Way Passive Loudspeaker
- LF Driver: 1 × 8″ / 209 mm woofer
- HF Driver: 1 × 2414H-C 1″ compression driver
- Coverage Pattern: 90° × 50° rotatable waveguide
- Power Handling: 150W Continuous / 300W Program / 600W Peak
- AES Power: 250W / 1000W Peak
- Frequency Response: 90 Hz – 18 kHz
- Frequency Range: 70 Hz – 20 kHz
- Impedance: 8Ω
- Sensitivity: 94 dB
- Max SPL: 116 dB / 122 dB Peak
- Crossover: 2 kHz
- Connectors: Dual Neutrik NL4 + screw terminals
- Cabinet: 15 mm multi-ply hardwood plywood
- Mounting: M10 suspension points
- Finish: Black textured paint, white optional
