Description

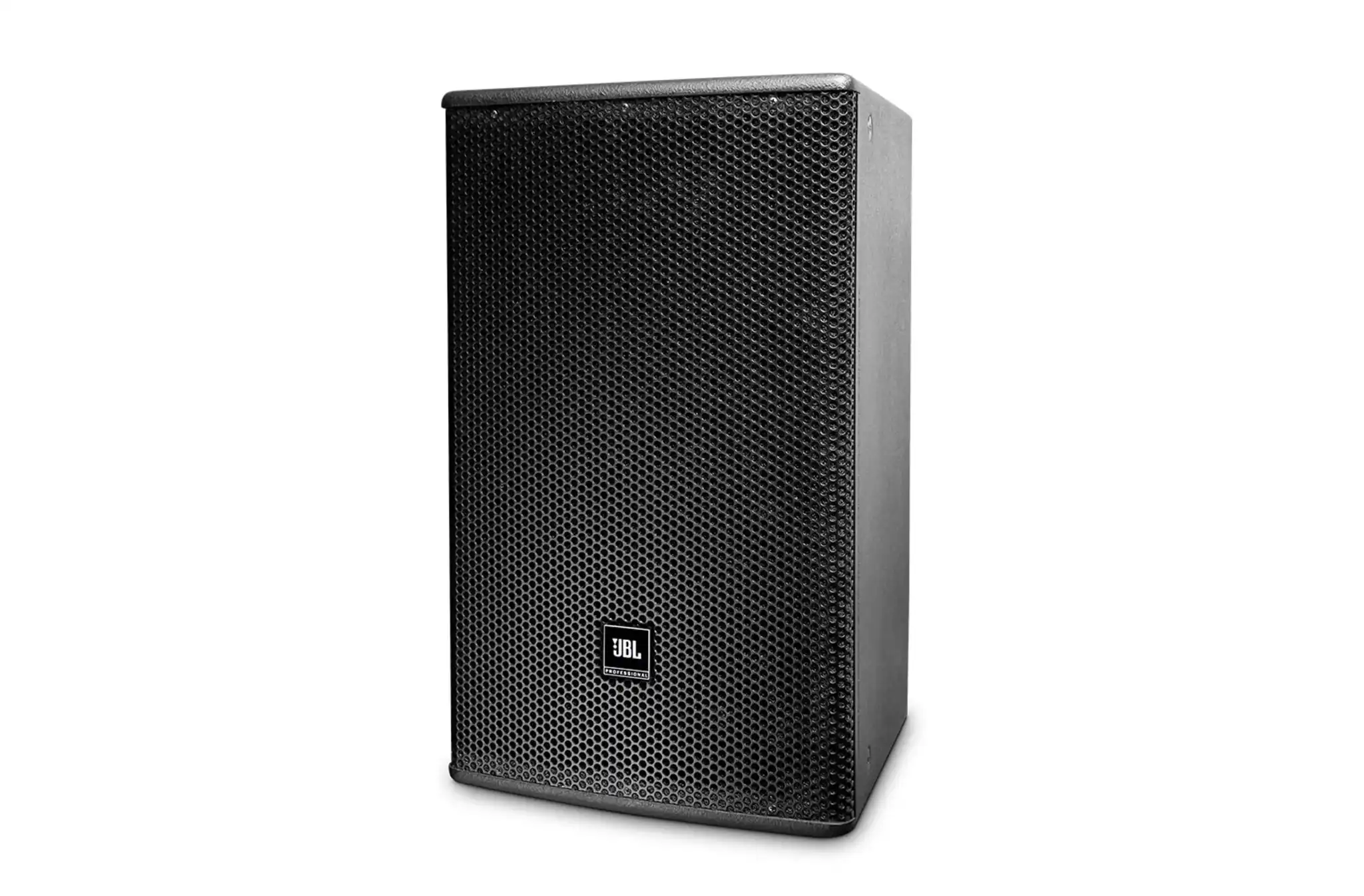

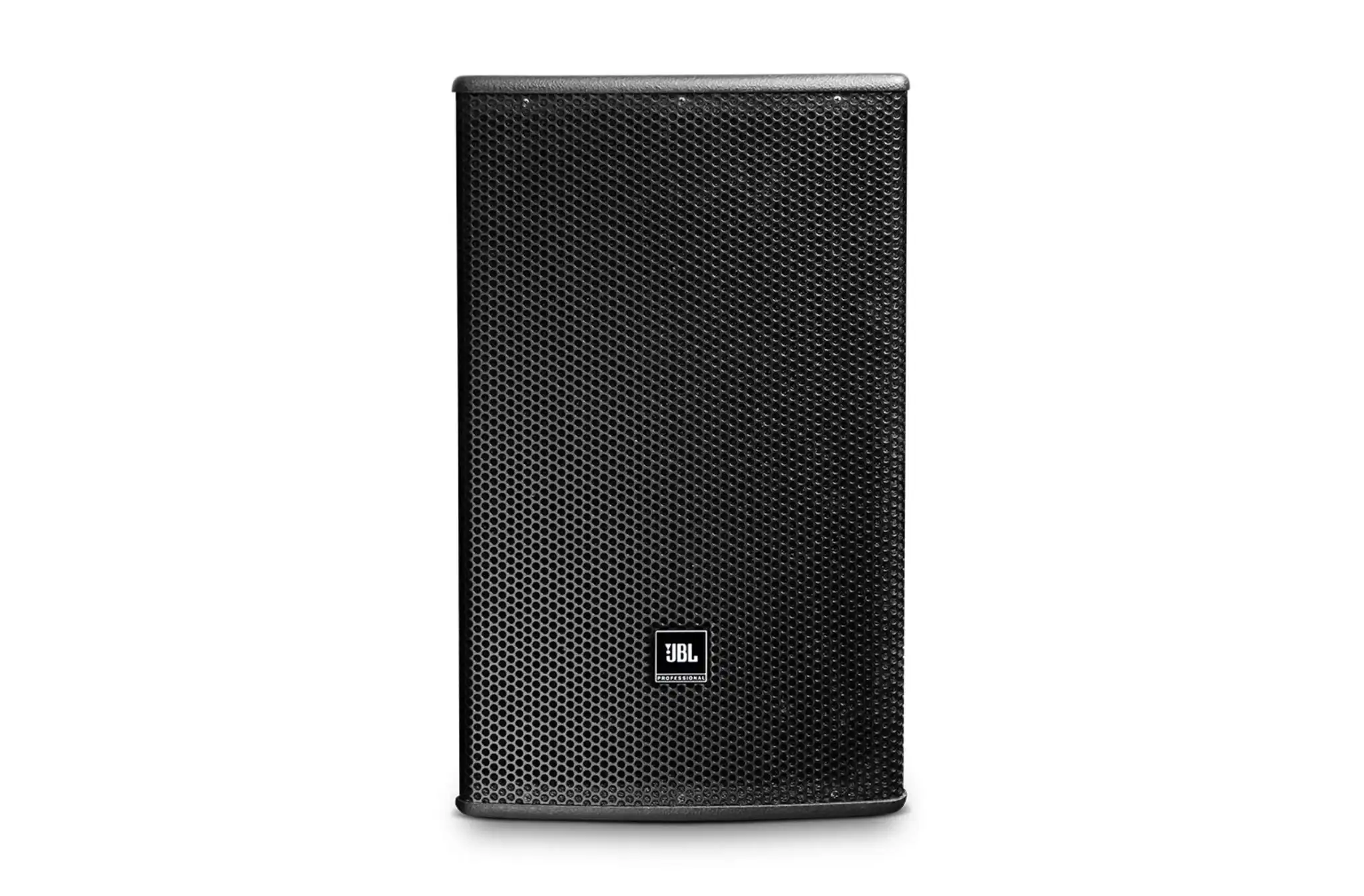

12-inch 2-Way Speaker with 60° x 60° Horn

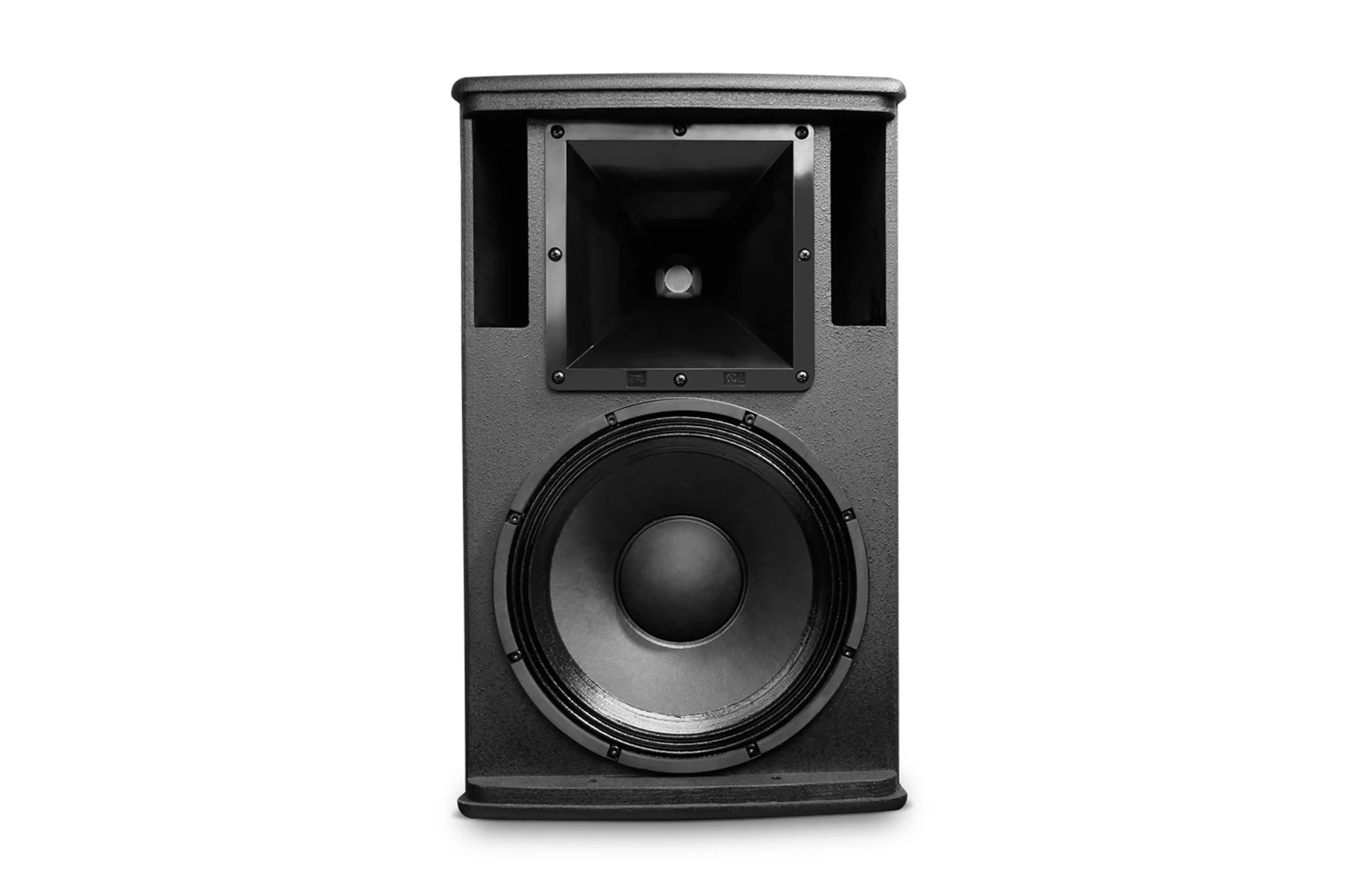

AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC266 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
More Information
Key Features
- Robust 15mm enclosure with black textured finish
- 310 mm (12 in) LF transducer
- 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5″) diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
Technical Specifications
- Type: Compact Dual 6.5″ 2-Way Passive Loudspeaker
- LF Driver: 2 × 6.5″ / 165 mm woofers
- HF Driver: 1 × 2414H-C 1″ compression driver
- Coverage Pattern: 60° × 60° rotatable waveguide
- Power Handling: 300W Continuous / 600W Program / 1200W Peak
- Frequency Response: 95 Hz – 18 kHz
- Frequency Range: 75 Hz – 20 kHz
- Impedance: 8Ω
- Sensitivity: 93 dB
- Max SPL: 118 dB / 124 dB Peak
- Crossover: 2 kHz
- Connectors: Dual Neutrik NL4 + screw terminals
- Cabinet: 15 mm multi-ply hardwood plywood
- Mounting: M10 suspension points
- Finish: Black textured paint, white optional
