Description

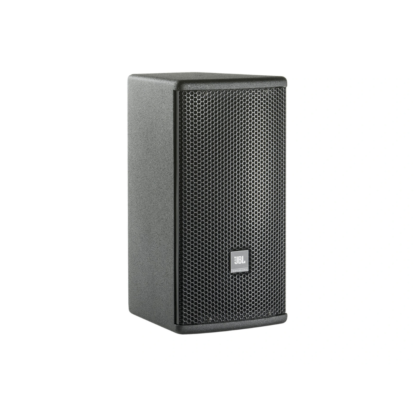

An extension of the industry-leading AE Series, the AE Compact family consists of high output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25″ point-and-shoot box to dual 8″ loudspeaker system that are specifically designed for better serving the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1″ dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1″ exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL’s Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.
More Information
Key Features

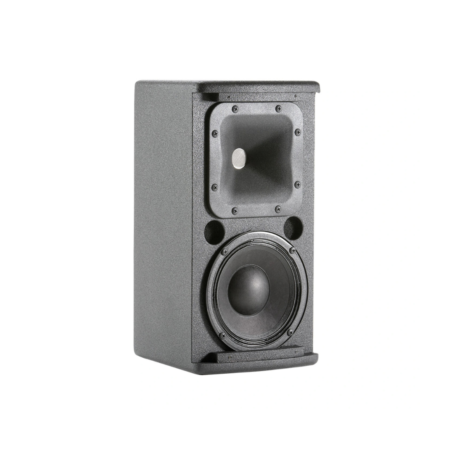

- 1” Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
- 165 mm (6.5 in) LF transducer
- Ultra compact enclosure
- 320W Program
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
Technical Specifications
- Type: Ultra Compact 2-Way Passive Loudspeaker
- LF Driver: 6.5″ / 165 mm
- HF Driver: 1″ Exit Compression Driver
- Coverage: 90° × 90°
- Power: 160W Continuous / 320W Program / 640W Peak
- Frequency Response: 65 Hz – 18 kHz
- Frequency Range: 55 Hz – 20 kHz
- Impedance: 16Ω
- Sensitivity: 90 dB
- Max SPL: 110 dB
- Connectors: Dual Neutrik NL4 + Screw Terminal
- Dimensions: 381 × 199.4 × 226.1 mm
- Weight: 7.2 kg
- Mounting: U-Bracket / OmniMount compatible
- Finish: Black DuraFlex, White optional
