Description
The YVC-1000 is a professional unified communications speakerphone system designed for medium to large conference rooms. Featuring separate control and microphone units, USB and Bluetooth connectivity, and advanced Yamaha audio processing technologies, it delivers clear and natural communication for web conferencing, remote meetings, and presentations. Its scalable design supports optional extension microphones, making it suitable for flexible meeting environments.
More Information
Key Features
- Professional conference speakerphone system

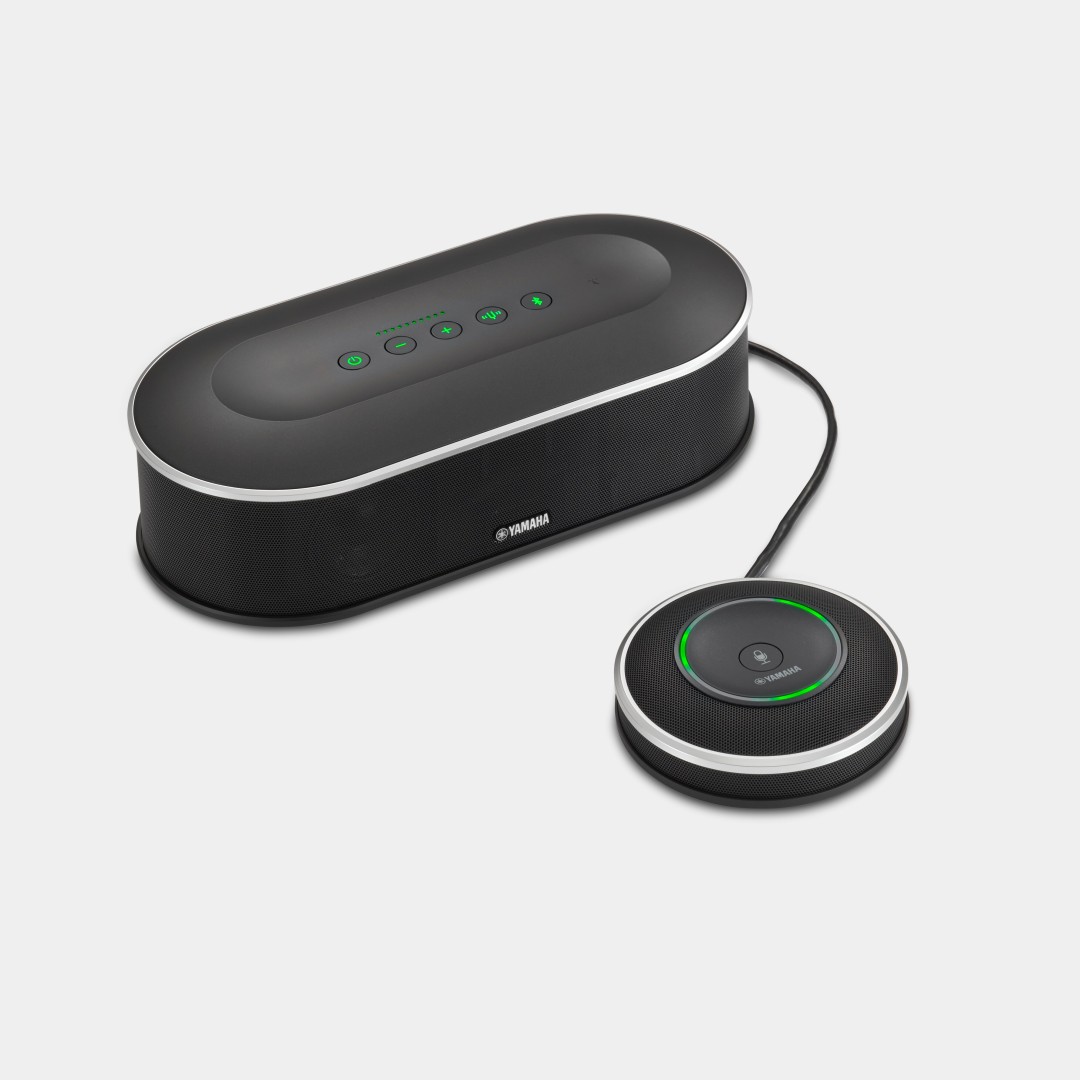

- Separate control unit and microphone design
- USB, Bluetooth, and NFC connectivity
- 360° microphone coverage with three unidirectional microphones
- Full-range built-in speaker
- Supports external speakers via RCA outputs
- Advanced adaptive echo cancellation and noise reduction
- Automatic gain control and room EQ optimization
- Expandable with optional YVC-MIC1000EX extension microphones
- Compatible with Windows, macOS, and Chrome OS
Audio Features
- Microphones: 3 × Unidirectional microphones
- Pickup Coverage: 360°
- Built-in Speaker: Full-range speaker ×1
- Maximum Volume: 95 dB SPL
- Frequency Response: 100 Hz – 20 kHz
Signal Processing Technologies
- Adaptive Echo Canceller
- Noise Reduction
- Automatic Tracking
- Automatic Gain Control
- Automatic Room EQ
- Dereverberation
- Automatic Audio Tuning
Connectivity & Interfaces

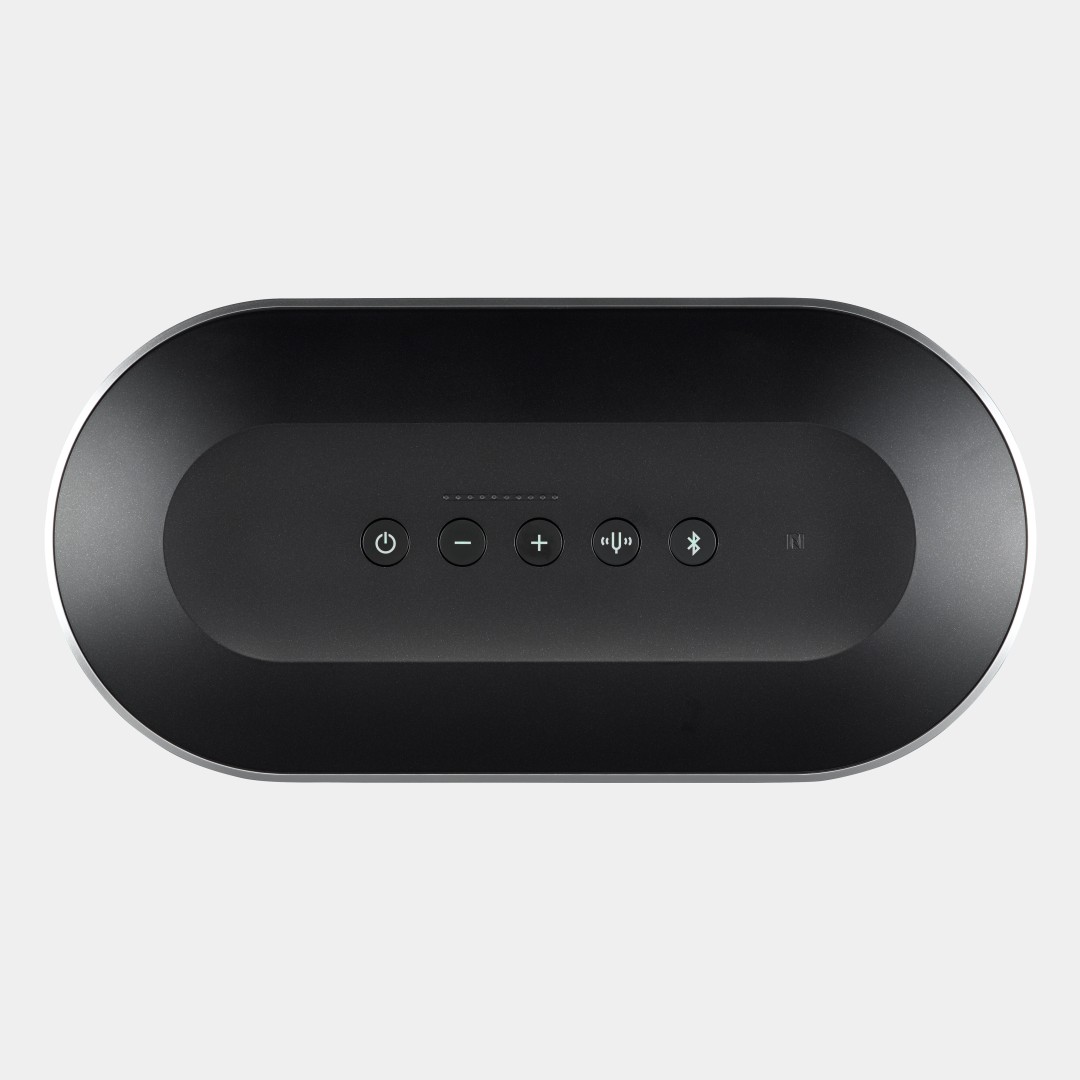

Control Unit
- USB 2.0 High Speed (Type-B)
- Bluetooth
- NFC (Near Field Communication)
- Stereo RCA Audio Input
- Stereo RCA Audio Output
- External Speaker Output ×2 (RCA)
- Power Terminal
- Microphone Terminal

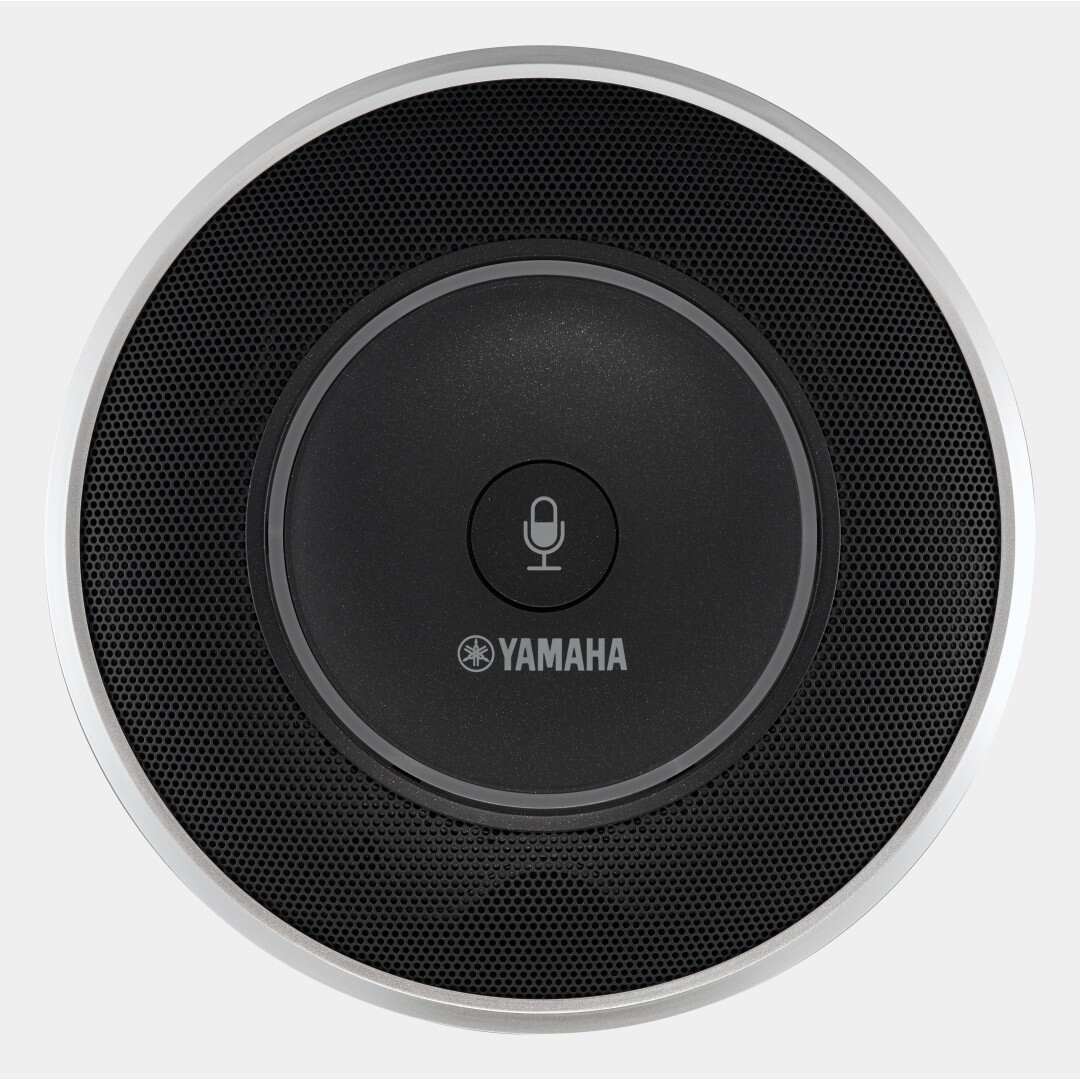

Microphone Unit
- Input and Output Terminals
System Compatibility
- Windows 11
- Windows 10 (32-bit / 64-bit)
- macOS 11 / 12 / 13
- Chrome OS
Voice Guidance Languages
- English
- Japanese
- Chinese
- Korean
- French
- Spanish
- German
Power Specifications
- Power Consumption:
- 20W (1 microphone connected)
- 35W (5 microphones connected)
- Power Supply:
- AC 120V (USA/Canada)
- AC 220–240V (UK/Europe/Russia)
Operating Environment
- Temperature: 0°C – 40°C
- Humidity: 20% – 85% (non-condensing)
Dimensions & Weight
Control Unit
- Size: 332 × 95 × 162 mm
- Weight: 1.8 kg
Microphone Unit
- Size: 136 × 36 × 136 mm
- Weight: 0.4 kg
