Description

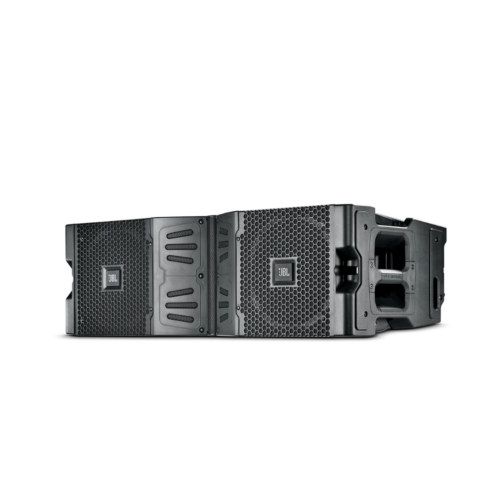

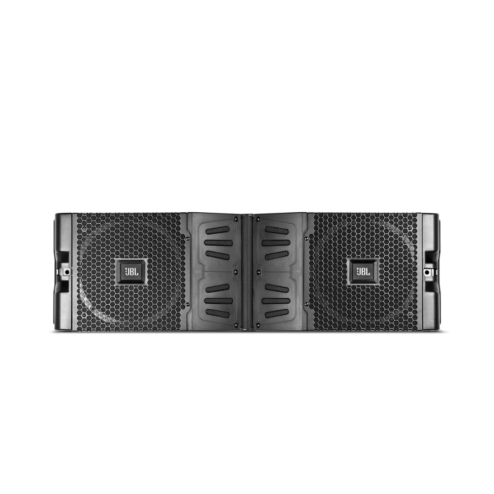

VTX V20 features the advanced technology and extraordinary performance of the groundbreaking VTX V25 in a smaller format, high power density 3-way system complemented by a new suspension system that provides efficient transport, fast setup and precise configuration. All VTX V20 components have been specifically engineered to provide stable 105 degree horizontal coverage and effective line source array coupling in the vertical plane while delivering linear, transparent sound up to surprisingly high output levels for its diminutive size.
More Information
- Differential Drive Technology
- 4th generation advanced high frequency waveguide
- Small Format Version of Patented D2 Dual Compression Driver
- ASM Suspension System
- V5 System Integration
Technical Specification
- Model: JBL VTX V20
- System Type: 3-Way High Directivity Line Array Element with D2 Technology
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- Horizontal Coverage (-6 dB): 105° nominal
- Maximum Peak Output: 139 dB
- System Amplification: Crown Audio I-Tech HD
- Nominal Impedance Active Mode: LF: 2 × 8 ohms, MF: 8 ohms, HF: 8 ohms
- Nominal Impedance Passive Mode: LF: 16 ohms, MHF: 8 ohms

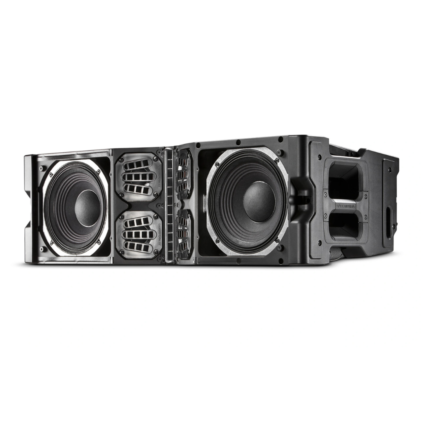

- LF Driver: 2 × JBL 2261H 10-inch Neodymium Differential Drive® woofer
- MF Driver: 4 × JBL 2164H ultra-linear mid-frequency drivers
- HF Driver: 3 × JBL D2415K Dual Diaphragm compression drivers
- Dimensions (H × W × D): 279 mm × 910 mm × 403 mm
- Dimensions in Inches: 11″ × 35.9″ × 15.8″
- Net Weight: 40 kg / 88 lb
