Description

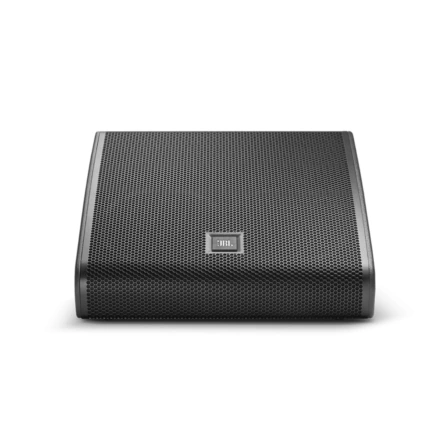

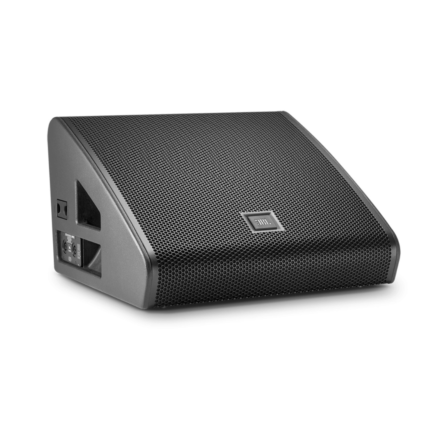

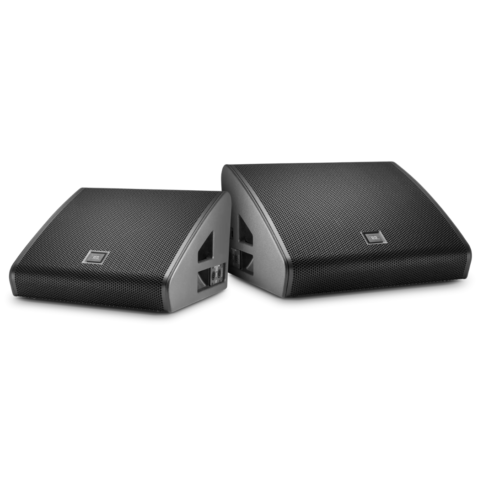

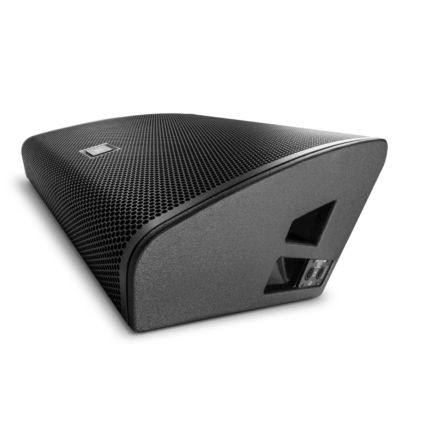

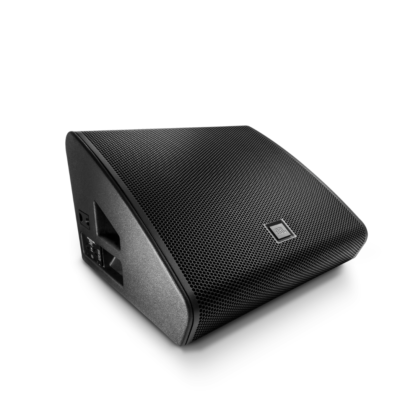

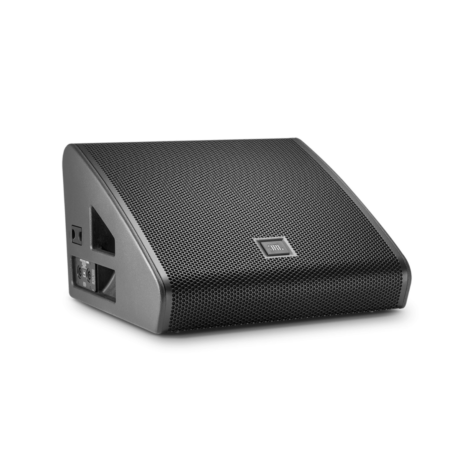

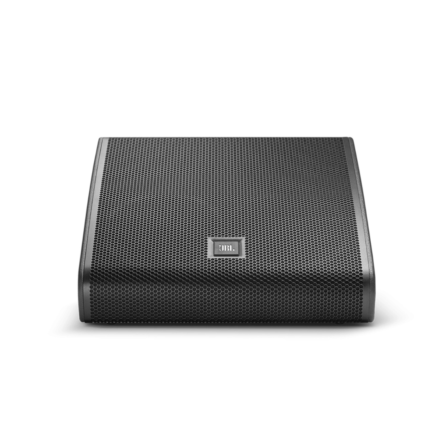

The JBL VTX M20 is a low-profile, compact professional stage monitor designed for touring, live sound, and high-profile broadcast applications. It uses 2 x JBL 2261H 10-inch Differential Drive® LF drivers and 1 x JBL D2430H D2 dual-diaphragm HF driver with a 60° x 60° waveguide.
More Information
Key Features
- Dual 10-inch professional stage monitor
- Low-profile compact monitor design
- Suitable for touring and broadcast applications
- 60° x 60° high-frequency waveguide
- JBL Image Control Waveguide Technology
- 2 x JBL 2261H Differential Drive® LF drivers
- JBL D2430H D2 dual-diaphragm compression driver
- Passive and Bi-Amp operation modes
- Crown Audio I-Tech HD processing support
- 30° monitor angle
- Finnish birch plywood enclosure
Technical Specification
- Model: JBL VTX M20
- Speaker Type: Professional stage monitor
- System Type: Dual 10-inch stage monitor
- Frequency Range (-10 dB): 55 Hz – 19.5 kHz
- Coverage Pattern (-6 dB): 60° horizontal x 60° vertical
- System Input Power Rating Passive: 1250 W continuous, IEC / 100 hour
- System Input Power Rating Active LF: 1250 W continuous, IEC / 100 hour
- System Input Power Rating Active HF: 100 W continuous, IEC / 100 hour
- Maximum SPL at 1m: 136 dB, preset VTX M20 FR
- System Latency: 3.33 ms
- System Processing: Crown Audio I-Tech HD Series
- Recommended Amplifier: Crown Audio I-Tech 4x3500HD
- Nominal Impedance Passive: 4 ohms
- Nominal Impedance Active LF: 4 ohms
- Nominal Impedance Active HF: 8 ohms

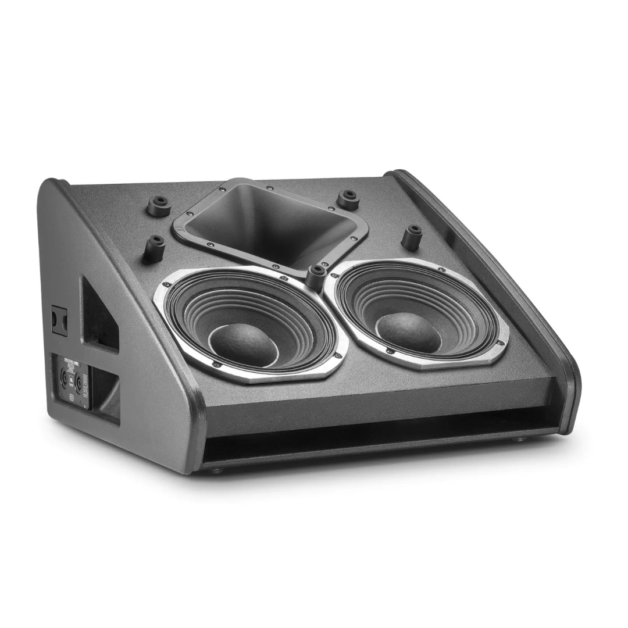

- LF Driver: 2 x JBL 2261H, 254 mm / 10 inch diameter
- LF Voice Coil: Dual 76 mm / 3 inch voice coil
- LF Technology: NDD® / Differential Drive®, Direct Cooled™

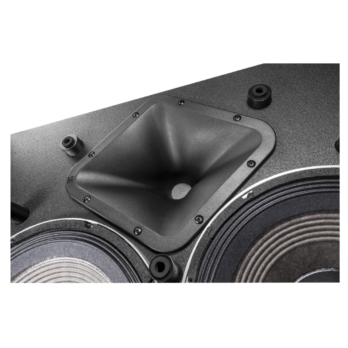

- HF Driver: 1 x JBL D2430H D2 dual-diaphragm compression driver
- HF Voice Coil: Dual 76 mm / 3 inch voice coil
- Monitor Angle: 30°
- Enclosure: 18 mm, 11-ply Finnish birch plywood
- Grille: Powder-coated 14-gauge hex-perforated steel with acoustically transparent black cloth backing
- Input Connectors Passive: Neutrik® Speakon® NL4, selectable pins 1± or pins 2±
- Input Connectors Active: Neutrik® Speakon® NL4, pins 1± LF and pins 2± HF
- Dimensions: 342.9 x 575.0 x 515.3 mm
- Dimensions in Inches: 13.6 x 22.6 x 20.3 inch
- Net Weight: 23 kg / 51 lb
