Description

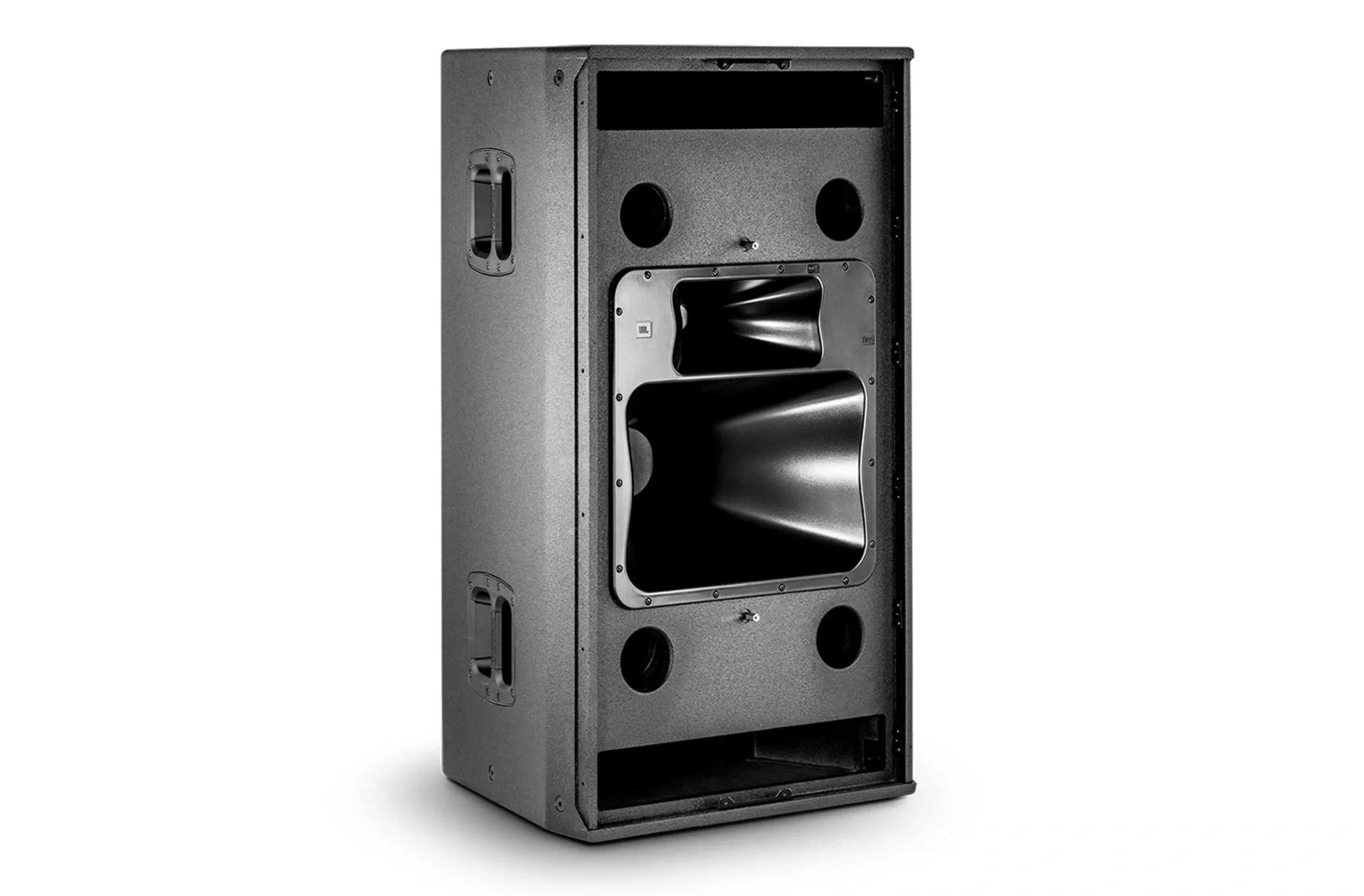

The JBL VTX F35/95 is a high-output 3-way full-range loudspeaker with 90° x 50° coverage. It is designed for high-power side-fill, mains speaker, and point-source applications where high-impact and high-fidelity audio is required. It uses dual 15-inch LF drivers, an 8-inch MF driver, and JBL’s D2 high-frequency compression driver.
More Information
Key Features
- High performance dual 15-inch 3-way loudspeaker
- 90° horizontal x 50° vertical coverage
- D2 Dual Diaphragm Dual Voice Coil HF compression driver
- 2 x JBL 2265H 15-inch LF drivers
- 1 x JBL 2169H 8-inch MF driver
- Differential Drive™ and Direct Cooled™ transducer technology
- 4-channel quad-amp design: LF / LF / MF / HF
- Designed for Crown Audio I-Tech HD amplification
- Integrated M10 mounting points
- Black DuraFlex™ finish
- Lightweight trapezoidal enclosure
Technical Specification
- Model: JBL VTX F35/95
- Speaker Type: Passive 3-way loudspeaker
- System Type: High Performance Dual 15-inch 3-Way Loudspeaker
- Frequency Range (-10 dB): 39 Hz – 18 kHz
- Coverage Pattern (-6 dB): 90° horizontal x 50° vertical
- System Input Power Rating LF: 2 x 800 W continuous, IEC / 100 hour
- System Input Power Rating MF: 270 W continuous, IEC / 100 hour
- System Input Power Rating HF: 100 W continuous, IEC / 100 hour
- Maximum Peak Output: 143 dB
- System Amplification: Crown Audio I-Tech HD Series
- Recommended Amplifier: Crown Audio I-Tech 4x3500HD
- Required Amplifier Channels: 4-channel quad-amp, LF / LF / MF / HF
- Number of Cabinets per Circuit: 3 x VTX F35
- System Impedance LF: 2 x 8 ohms
- System Impedance MF: 8 ohms
- System Impedance HF: 8 ohms
- Low Frequency Driver: 2 x JBL 2265H, 15 inch diameter, dual 3 inch voice coil, NDD®, Direct Cooled™
- Mid Frequency Driver: 1 x JBL 2169H, 8 inch diameter, 3 inch dual voice coil, Neodymium Differential Drive®, Direct Cooled™
- High Frequency Driver: 1 x JBL D2430H, D2 dual diaphragm, dual 3 inch voice coil
- Enclosure: 18 mm, 11-ply Baltic birch plywood
- Finish: Black DuraFlex™ finish
- Handles: Integral recessed handles
- Suspension: Integrated M10 mounting points

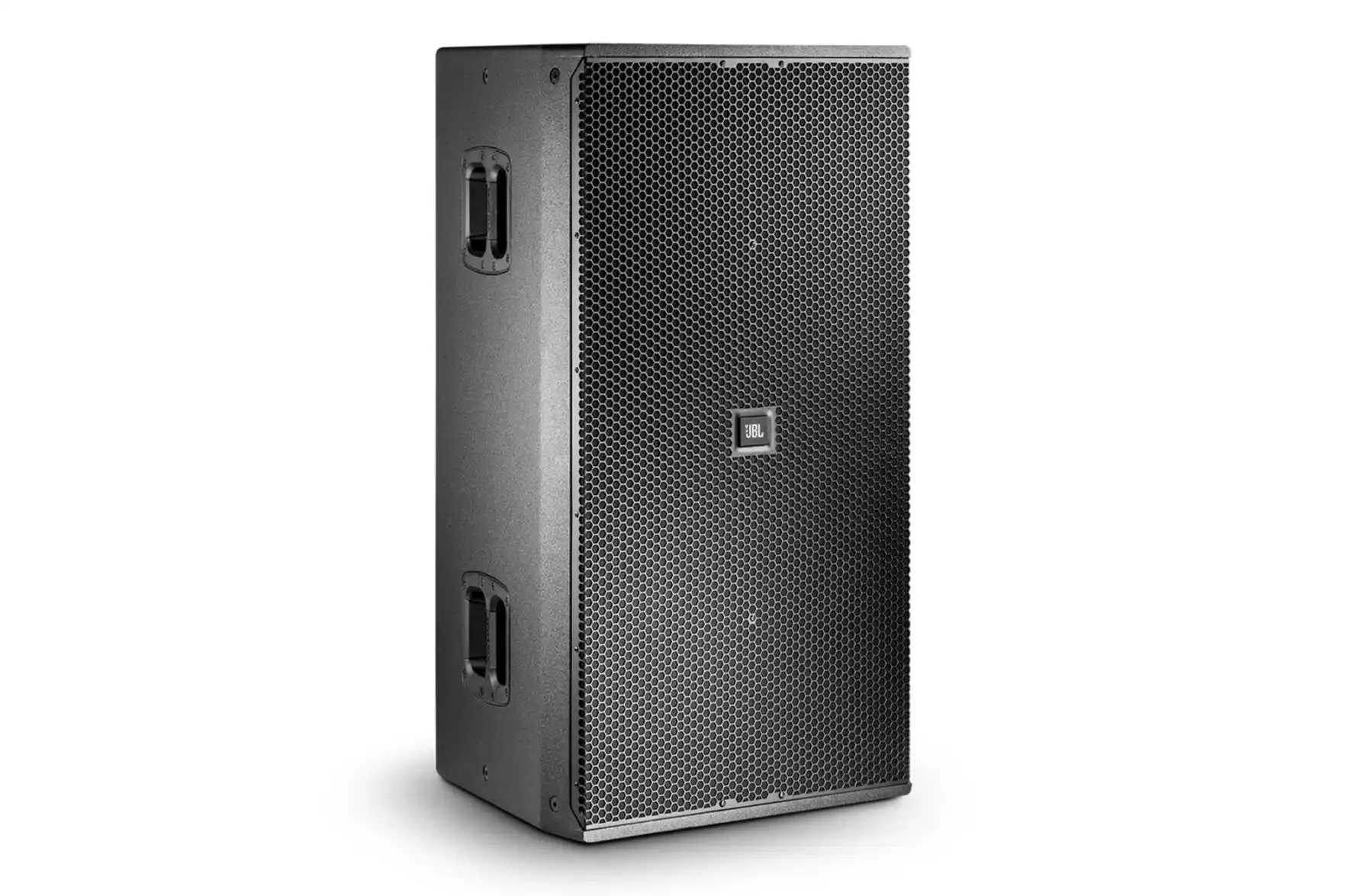

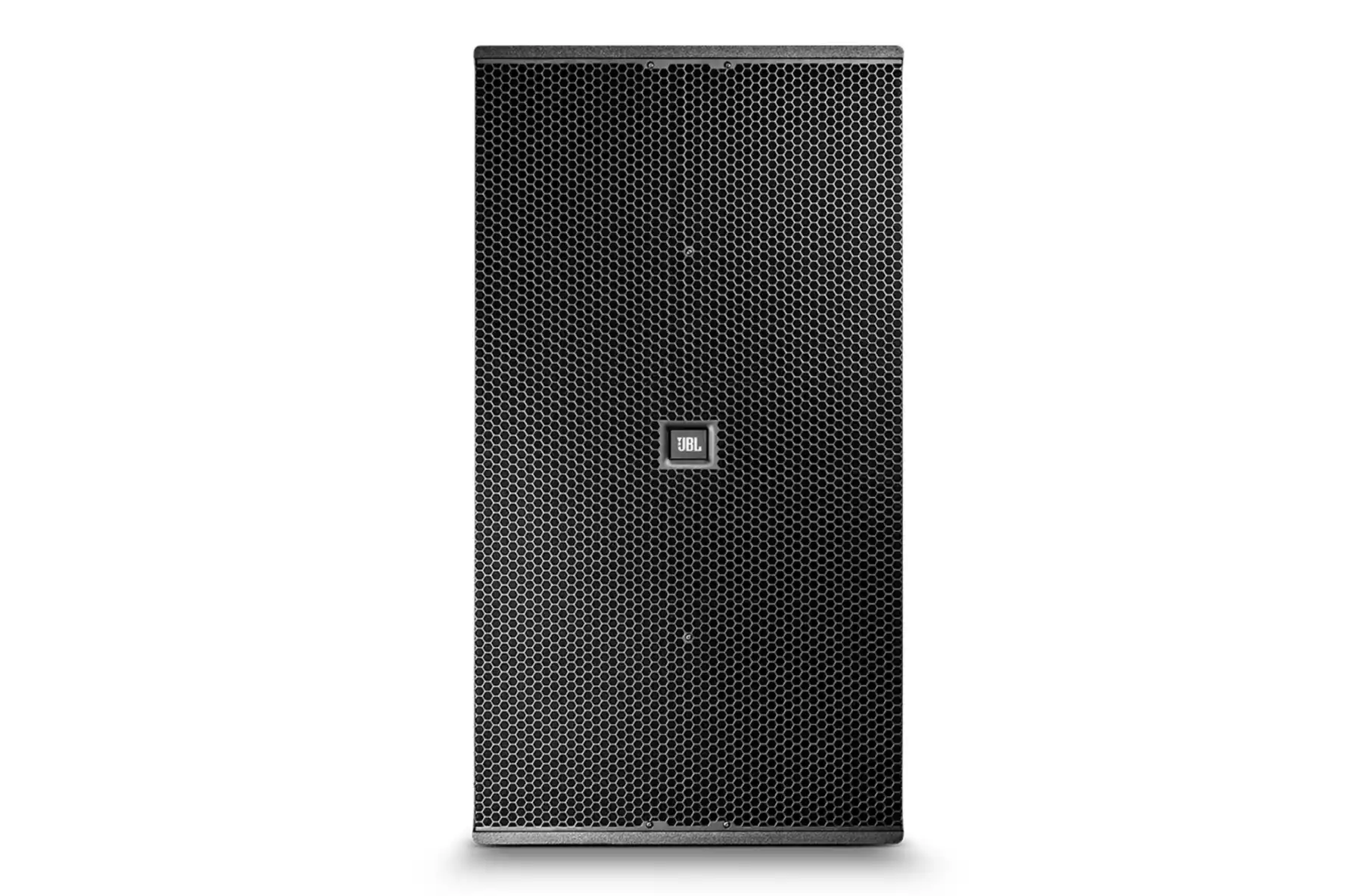

- Grille: Powder-coated 14-gauge hex-perforated steel with acoustically transparent black cloth backing

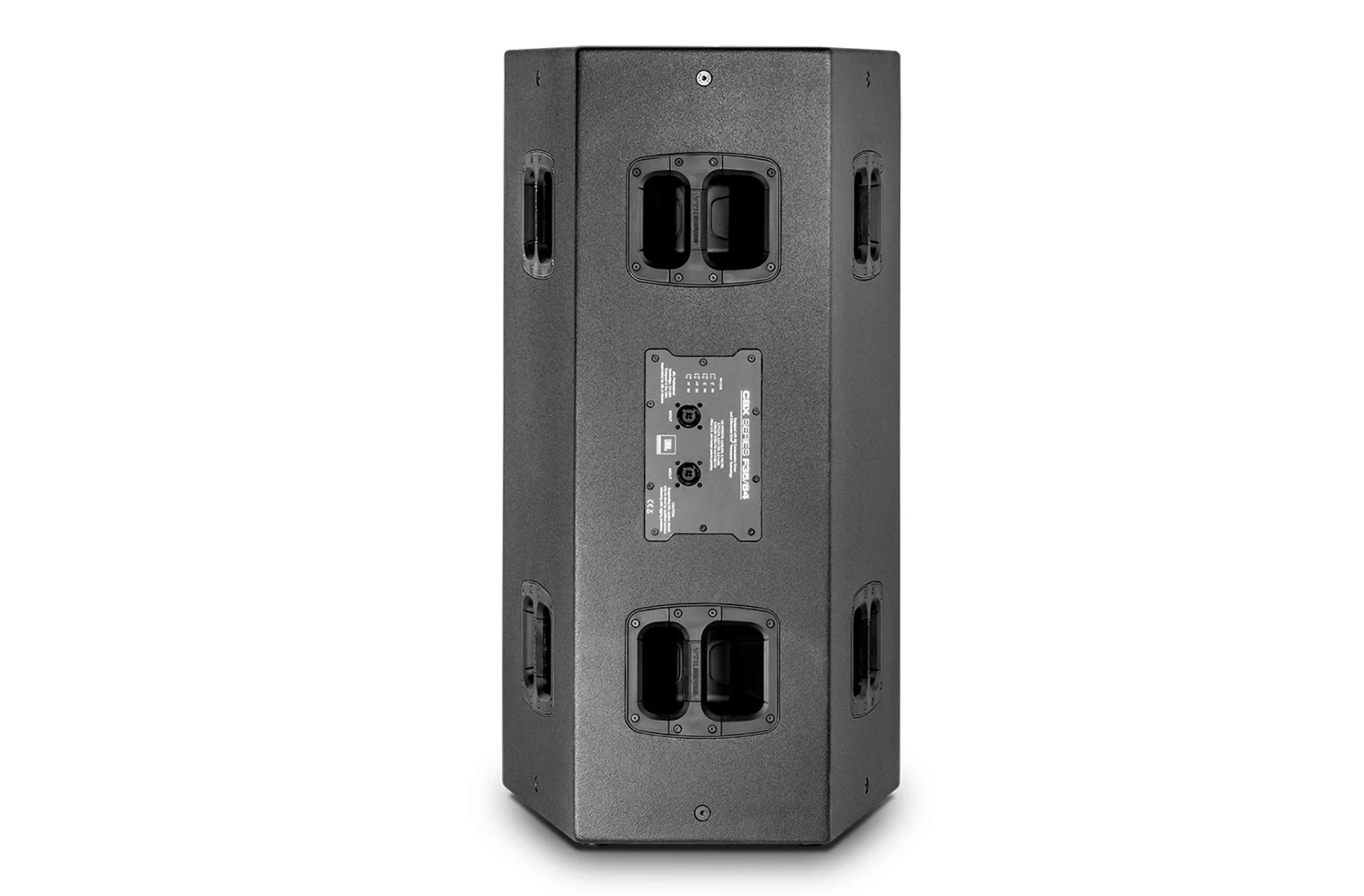

- Input Connectors: 2 x Neutrik® SpeakON® NL-8
- Pin Assignment: Pins 1± LF, Pins 2± LF, Pins 3± MF, Pins 4± HF
- Dimensions: 1051.5 x 568.9 x 528.3 mm
- Dimensions in Inches: 41.4 x 22.4 x 20.8 inch
- Net Weight: 52.6 kg / 116 lb
