Description

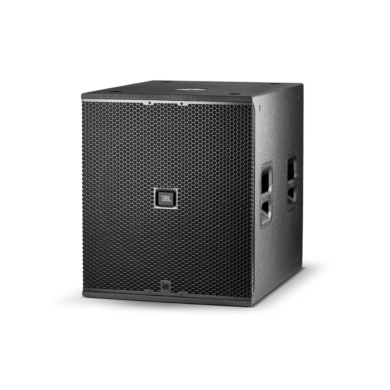

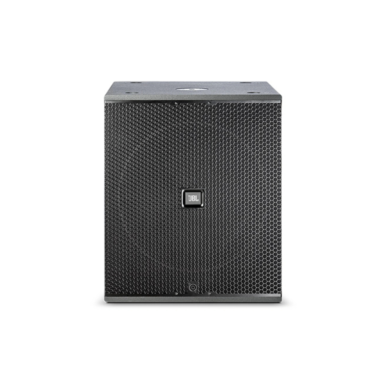

The JBL VTX F18S is a compact high-power single 18-inch subwoofer designed as the low-frequency companion for JBL VTX F Series loudspeakers. It uses the JBL 2269H 18-inch Differential Drive® transducer with dual voice coil, neodymium magnet, and Direct Cooled™ technology.
More Information
Key Features
- 18-inch compact subwoofer
- JBL 2269H Differential Drive® transducer
- 2000 W continuous / 8000 W peak AES 2-hour power handling
- Massive 3.5-inch peak-to-peak linear excursion capability
- Reverse-cardioid arrayable with front NL4 connector
- Reinforced M20 extension rod receptacle
- 16 x M10 mounting points
- 4 convenient handle locations
- Attachment plates included for stacked F18S + F12/F15 configurations
- Black DuraFlex™ finish
Technical Specification
- Model: JBL VTX F18S
- Speaker Type: Passive subwoofer
- System Type: High-power single 18-inch Differential Drive® subwoofer

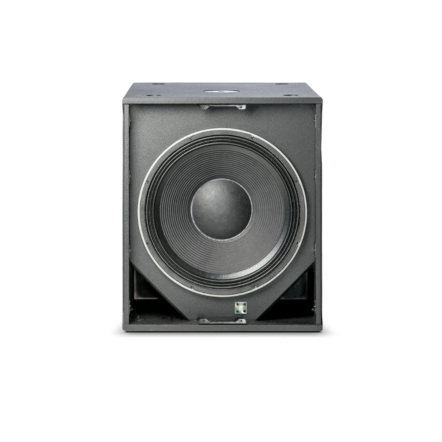

- LF Driver: 1 x JBL 2269H, 460 mm / 18 inch
- Voice Coil: 100 mm / 4 inch dual coil
- Driver Technology: Neodymium Differential Drive®, Direct Cooled™ transducer
- Frequency Range (-10 dB): 24 Hz – 100 Hz
- Frequency Response (±3 dB): 32.5 Hz – 80 Hz
- Sensitivity: 97 dB half-space
- Nominal Impedance: 8 ohms
- Transducer Power Rating: 2000 W continuous / 8000 W peak, AES 2-hour
- Maximum SPL at 1m: 133 dB, preset VTX F18S 80
- Enclosure: 18 mm, 11-ply Baltic birch plywood
- Finish: Black DuraFlex™ finish
- Mounting Points: 16 x M10
- Pole Mount: Reinforced M20 extension rod receptacle

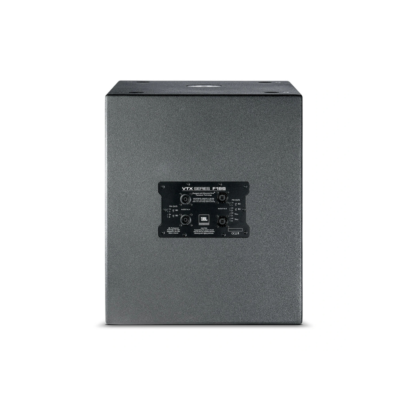

- Input Connector: NL4 connector, including front NL4 for cardioid configuration
- Handles: 4 integrated handles
- Dimensions: 640.1 x 548.6 x 713.7 mm
- Dimensions in Inches: 25.2 x 21.6 x 28.1 inch
- Net Weight: 45.4 kg / 100 lb
