Description

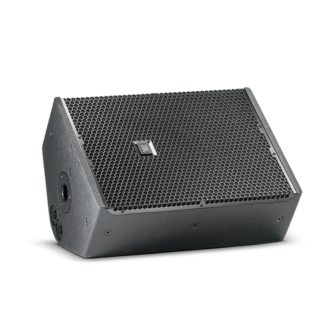

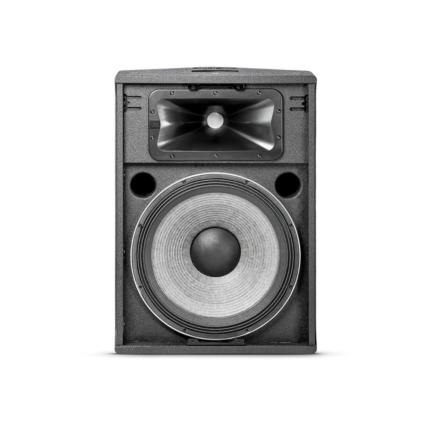

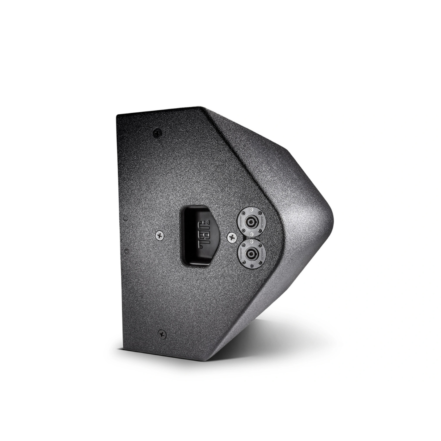

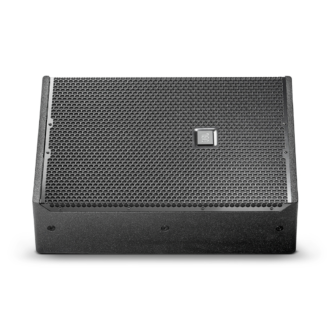

The JBL VTX F15 is a premium 2-way multi-purpose loudspeaker designed for front-of-house, satellite/subwoofer systems, stage monitoring, and fill speaker applications. It uses a 15-inch JBL 2265H Differential Drive® woofer and JBL D2430K D2 dual-diaphragm compression driver with 90° x 50° coverage.
More Information
Key Features
- 15-inch bi-amplified 2-way loudspeaker
- 90° x 50° coverage pattern
- JBL 2265H 15-inch Differential Drive® LF driver
- JBL D2430K D2 dual-diaphragm compression driver
- Suitable for FOH, stage monitor, fill, and satellite applications
- Compact multi-purpose enclosure
- High SPL output
- Neodymium Differential Drive® woofer
- Direct Cooled™ transducer technology
- Professional touring-grade cabinet
Technical Specification
- Model: JBL VTX F15
- Speaker Type: Passive / bi-amplified loudspeaker
- System Type: 2-way premium multi-purpose loudspeaker
- LF Driver: 1 x JBL 2265H, 15-inch diameter, dual 3-inch voice coil, neodymium Differential Drive®, Direct Cooled™ transducer
- HF Driver: 1 x JBL D2430K D2 dual-diaphragm, dual voice coil compression driver
- Coverage Pattern: 90° x 50°
- Frequency Range (-10 dB): 43 Hz – 21.5 kHz, short throw mode / free field
- Frequency Range (-10 dB): 42 Hz – 21.5 kHz, monitor mode / half-space
- Frequency Response (±3 dB): 59 Hz – 20 kHz, short throw mode / free field
- Frequency Response (±3 dB): 58 Hz – 20 kHz, monitor mode / half-space
- Sensitivity LF: 98 dB
- Sensitivity HF: 108 dB
- Nominal Section Impedance LF: 8 ohms
- Nominal Section Impedance HF: 20 ohms
- LF Power Rating: 1000 W continuous / 4000 W peak
- HF Power Rating: 200 W continuous / 800 W peak
- Maximum Peak Output: 134 dB, preset VTX F15 80
- Dimensions: 640.1 x 457.2 x 327.7 mm
- Dimensions in Inches: 25.2 x 18.0 x 12.9 inch
- Net Weight: 22.9 kg / 50.5 lb
