Description

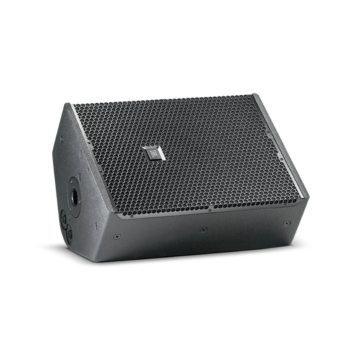

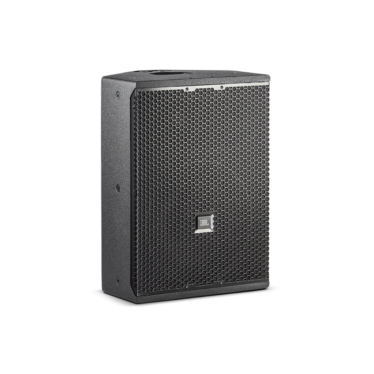

The JBL VTX F12 is a premium 2-way multi-purpose loudspeaker designed for FOH, satellite/subwoofer systems, stage monitoring, and fill speaker applications. It uses a 12-inch JBL 2262H Differential Drive® woofer and JBL D2430K D2 dual-diaphragm compression driver with 90° x 50° coverage.
More Information
Key Features
- 12-inch bi-amplified 2-way system
- 90° x 50° Progressive Transition Waveguide
- JBL 2262H 12-inch Differential Drive® LF driver
- JBL D2430K D2 dual-diaphragm compression driver
- Premium multi-purpose loudspeaker design
- Suitable for FOH, monitor, fill, and satellite applications
- BSS Audio OmniDriveHD V5 processing support
- Designed for Crown ITechHD and Crown VRack systems
- JBL HiQnet Performance Manager control support
- Integral pole mount socket
- 16 x M10 suspension points
Technical Specification
- Model: JBL VTX F12
- Speaker Type: Passive / bi-amplified loudspeaker
- System Type: 2-way premium multi-purpose loudspeaker

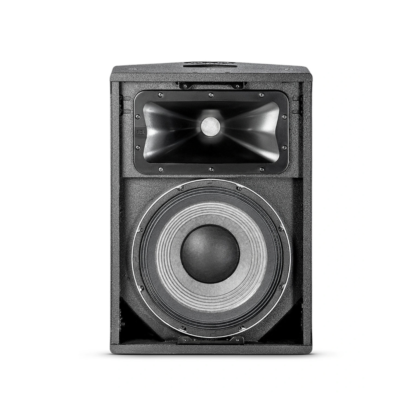

- LF Driver: 1 x JBL 2262H, 12-inch diameter, dual 3-inch voice coil, neodymium Differential Drive®, Direct Cooled™ transducer
- HF Driver: 1 x JBL D2430K D2 dual-diaphragm, dual voice coil compression driver
- Coverage Pattern: 90° x 50°
- Frequency Range (-10 dB): 51 Hz – 21.5 kHz, short throw mode / free field
- Frequency Range (-10 dB): 44 Hz – 21.5 kHz, monitor mode / half-space
- Frequency Response (±3 dB): 69 Hz – 20 kHz, short throw mode / free field
- Frequency Response (±3 dB): 58 Hz – 20 kHz, monitor mode / half-space
- Sensitivity LF: 96 dB
- Sensitivity HF: 108 dB
- Nominal Section Impedance LF: 8 ohms
- Nominal Section Impedance HF: 20 ohms
- LF Power Rating: 1000 W continuous / 4000 W peak
- HF Power Rating: 200 W continuous / 800 W peak
- Maximum Peak Output: 132 dB, preset VTX F12 80

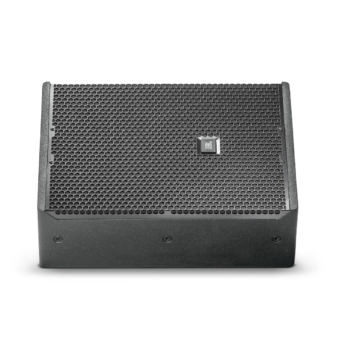

- Enclosure: Symmetrical stage monitor cabinet with 53° angle
- Cabinet Material: 18 mm, 11-ply Baltic birch plywood
- Finish: Black DuraFlex™ finish

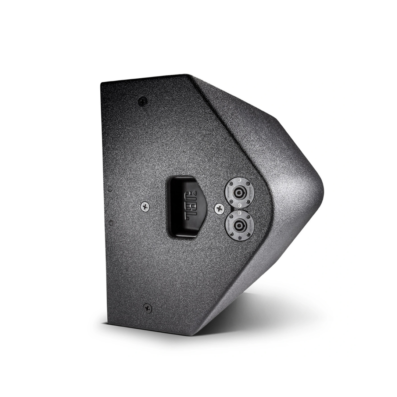

- Handle: Integral recessed handle
- Mounting: Integral 35 mm pole mount socket
- Suspension: 16 x M10 mounting points
- Optional Accessories: U-bracket and SS5-BK extension rod
- Dimensions: 548.6 x 396.2 x 304.8 mm
- Dimensions in Inches: 21.6 x 15.6 x 12 inch
- Net Weight: 19.1 kg / 42 lb
