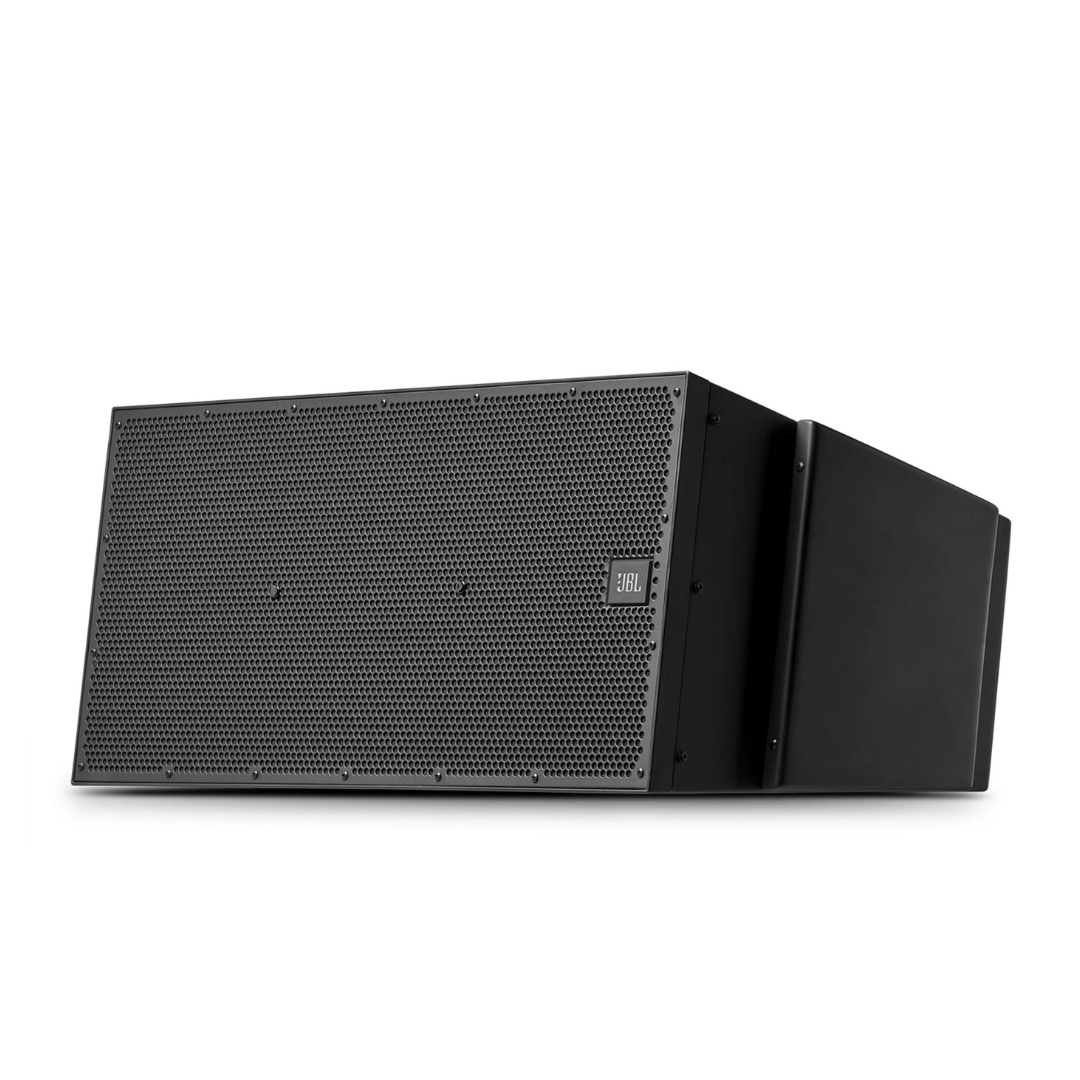

Description

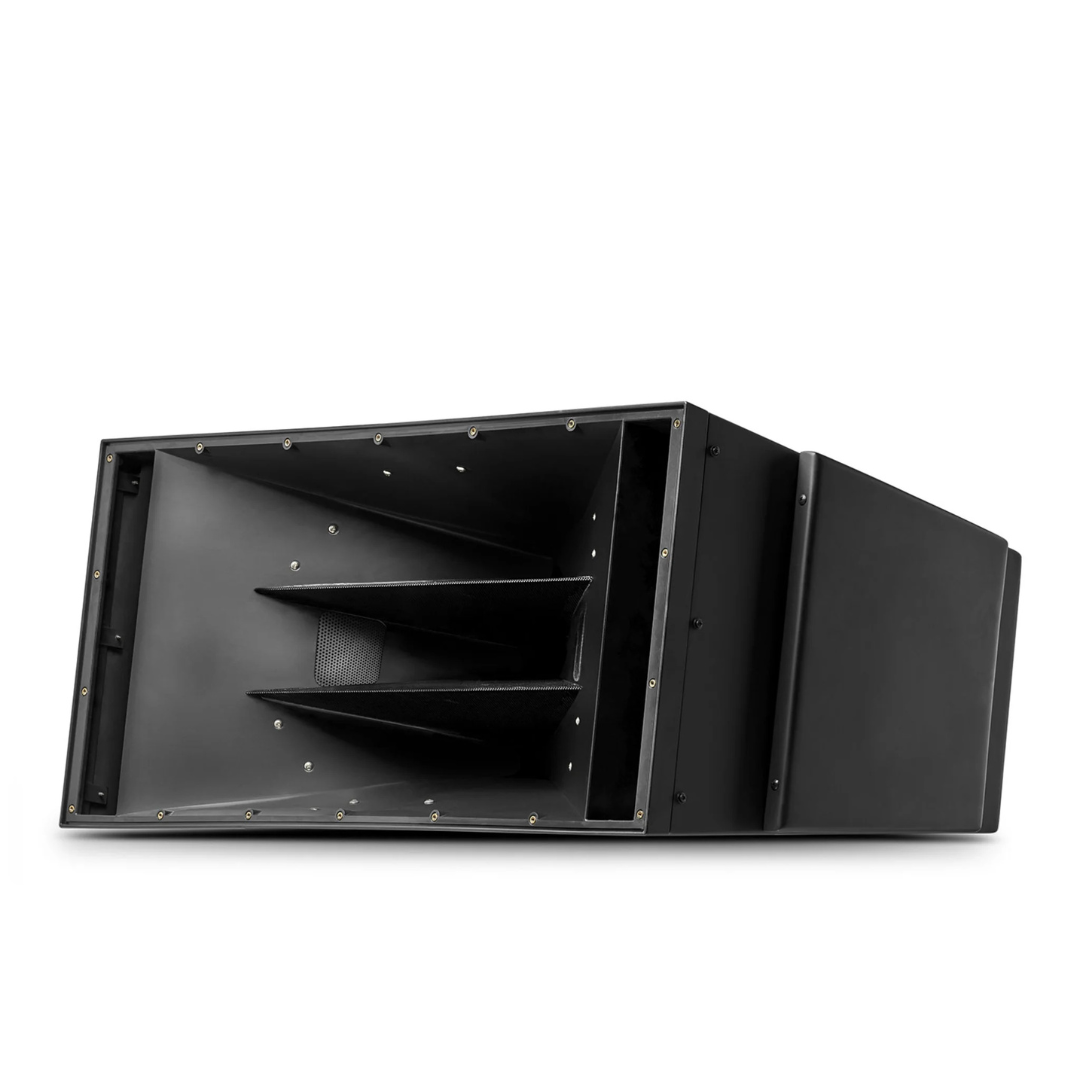

The VLA-C2100 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors.
The low-frequency section utilizes dual 2261 10” Differential Drive® 3” voice coil drivers.

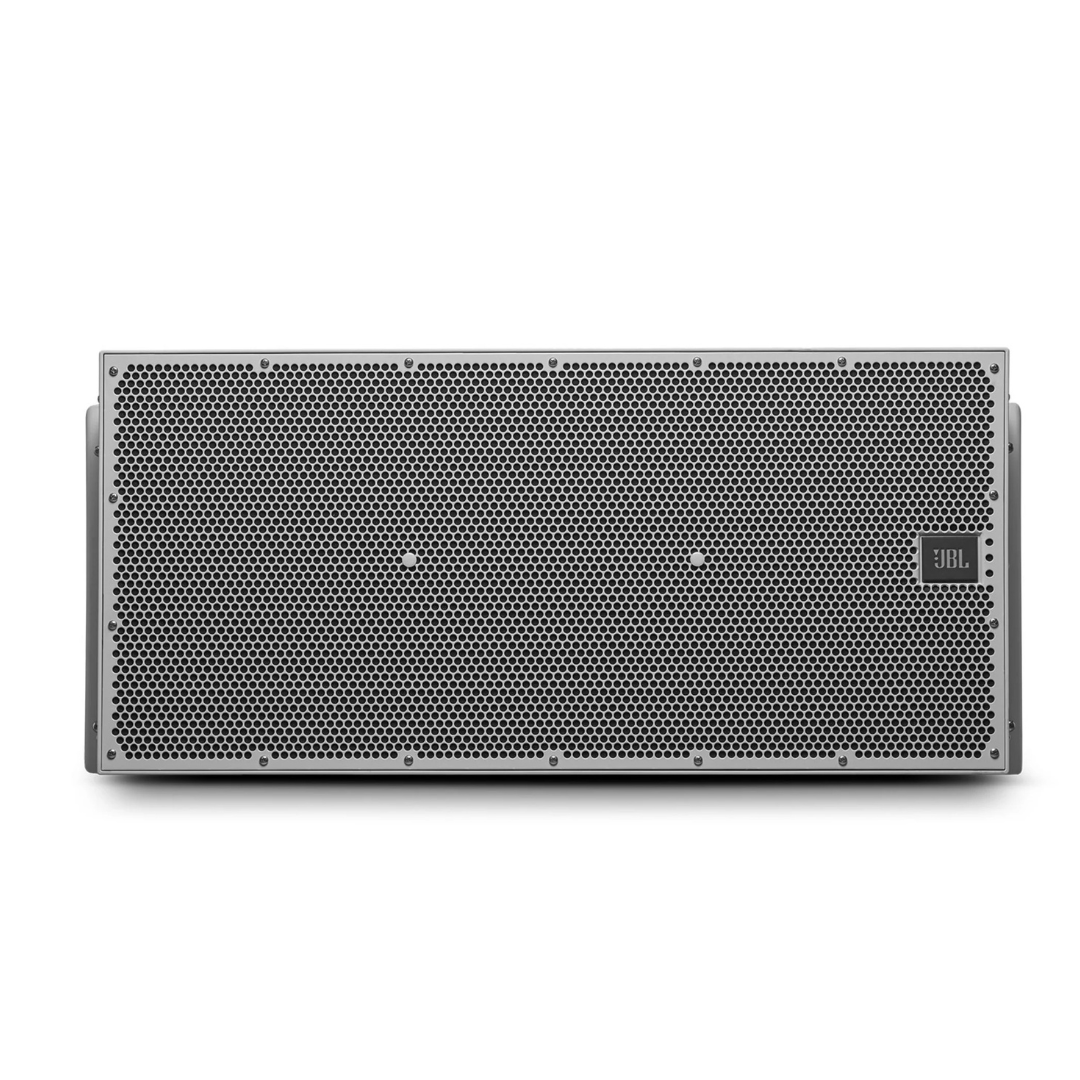

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.
The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.
More Information
- Compact line array module optimized for permanent install applications
- Advanced technology component transducers for low weight and high output
- Outdoor IP55 rated enclosure for protection from dust and water
- Comprehensive rigging points for creating a line array configuration
- Fiberglass box construction and weatherized components
- Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
- 100° horizontal coverage pattern
Technical Specification
- Model: JBL VLA-C2100
- System Type: Two-Way Full Range Loudspeaker
- LF Driver: 2 × 2261FF, 10-inch Neodymium Differential Drive® woofer
- HF Driver: 3 × 2415K D2 Dual Diaphragm Dual Voice Coil Compression Driver
- Frequency Range (-10 dB): 86 Hz – 18 kHz
- Frequency Response (±3 dB): 109 Hz – 15.3 kHz
- Power Rating Full Range: 800 W Continuous / 3200 W Peak
- Power Rating Bi-Amp LF: 800 W Continuous / 3200 W Peak
- Power Rating Bi-Amp HF: 150 W Continuous / 600 W Peak
- Maximum SPL: 131 dB continuous average / 137 dB peak
- Coverage Pattern: 100° horizontal; vertical varies with array size and configuration
- Recommended Amplifiers: Crown DCi Family with DSP
- Enclosure Material: Fiberglass shell with gelcoat finish and 18 mm birch plywood internal bracing
- Grille: Powder-coated 14-gauge hex-perforated steel grille
- Environmental Rating: IP55 per IEC529
- Terminals: CE-compliant covered barrier strip terminals
- Available Colors: Gray / Black
- Dimensions (H × W × D): 381 mm × 848 mm × 460 mm
- Dimensions in Inches: 15.0″ × 33.4″ × 18.1″
- Net Weight: 37.7 kg / 83 lbs
- Shipping Weight: 44.0 kg / 97 lbs
