Description

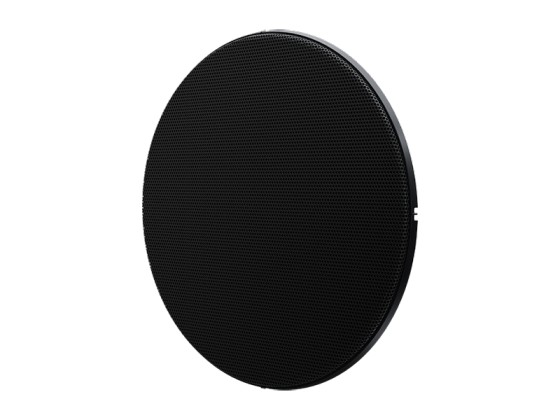

The Up 6 is a high-performance 6-inch full-range ceiling loudspeaker designed for commercial audio installations requiring higher sound levels, improved bass response, and wider coverage. It is ideal for restaurants, bars, hotels, retail stores, offices, educational facilities, and hospitality venues where both music quality and speech intelligibility are important.
More Information
Key Features
- 6” coaxial driver
- Discreet size
- Unobtrusive design
- 16 ohm or 70/100V line operation
- Range of power taps
- Wide conical coverage pattern
- Integrated mounting hardware
- Pendant and bezel-less grille accessory available
Technical Specifications
- Speaker Type: Full-range passive ceiling speaker
- Driver: 6″ (152 mm) coated paper cone
- Frequency Response: 65 Hz – 18 kHz (±3 dB)
- Power Handling: 40 W AES, 80 W Peak
- Impedance: 8 Ω
- Sensitivity: 91 dB (1 W/1 m)
- Maximum SPL: 107 dB continuous, 110 dB peak
- Dispersion: 130° conical
- Transformer Taps (70V): 40 W, 20 W, 10 W, 5 W
- Transformer Taps (100V): 40 W, 20 W, 10 W
- Connector: 4-pin Euroblock with loop-through connection
- Cut-out Diameter: 248 mm
- Dimensions: 272 mm diameter × 205 mm depth
- Weight: Approximately 2.8 kg
