Description

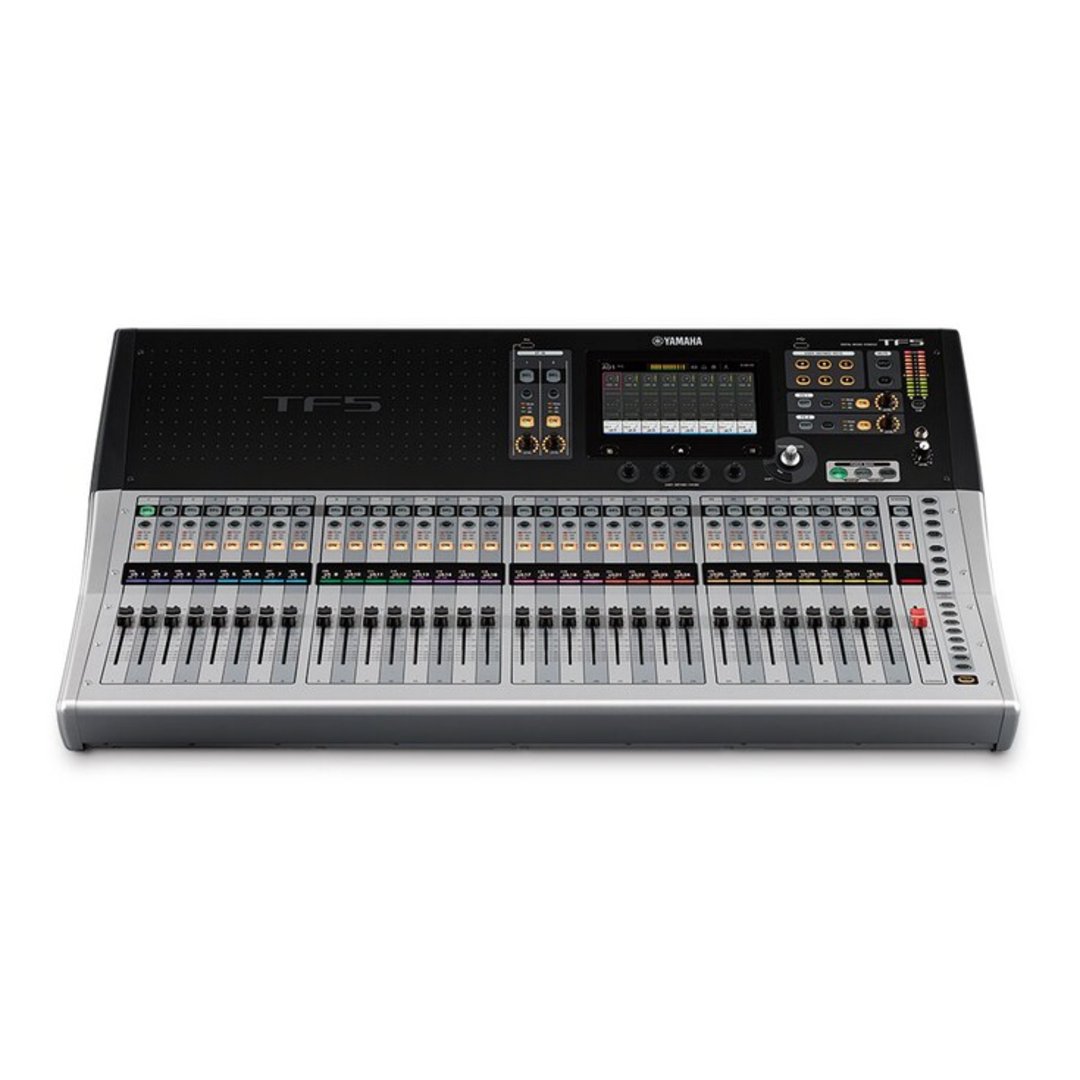

The Yamaha TF5 is a professional digital mixing console designed for live sound reinforcement, touring, houses of worship, theaters, corporate events, and recording applications. As the flagship model of the TF Series, it combines advanced digital audio processing with an intuitive user interface, making it suitable for both experienced engineers and newcomers to digital mixing.
More Information
Key Features
- 33 motor faders (32 channels + 1 master)
- 48 input mixing channels (40 mono + 2 stereo + 2 return)
- 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
- 8 DCA groups with Roll-out
- 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
- 16 analog XLR outputs
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
- 8 Effects and 10 GEQ
- 1 expansion slot for NY64-D audio interface card
Technical Specifications
- Mixer Type: Digital Mixing Console
- Input Channels: Up to 48 channels (40 mono + 2 stereo + 2 return)
- Local Inputs: 32 Mic/Line Inputs (XLR/TRS Combo)
- Local Outputs: 16 XLR Outputs
- Microphone Preamps: 32 Yamaha D-PRE Preamps
- Motorized Faders: 33 (32 channel faders + 1 master fader)
- Mix Buses: 20 Aux Buses
- Stereo Buses: 1 Stereo Bus + 1 Sub Bus
- Matrix Buses: 8
- Effects Processors: 8 Stereo Multi-Effects Units
- Graphic EQ: 31-band Graphic EQ
- Dynamics Processing: Compressor and Gate on all input channels
- Touchscreen Display: 10.1-inch Color Touch Panel
- Scene Memory: 200 Scenes
- USB Audio Interface: 34 × 34 channels
- Recording: Direct USB recording and playback
- Sampling Rate: 48 kHz / 24-bit
- Phantom Power: +48V per input channel
- Remote Control: Windows, macOS, iPad, and Android devices
- Expansion Slot: NY64-D Dante Card Compatible
- Frequency Response: 20 Hz – 20 kHz (+0.5 dB / −1.5 dB)
- Total Harmonic Distortion (THD): Less than 0.05%
- Power Supply: AC 100–240 V, 50/60 Hz
- Power Consumption: Approximately 120 W
- Dimensions: 828 mm (W) × 599 mm (D) × 225 mm (H)
