Description

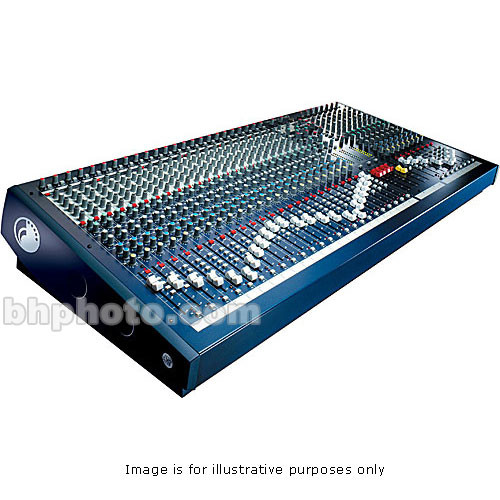

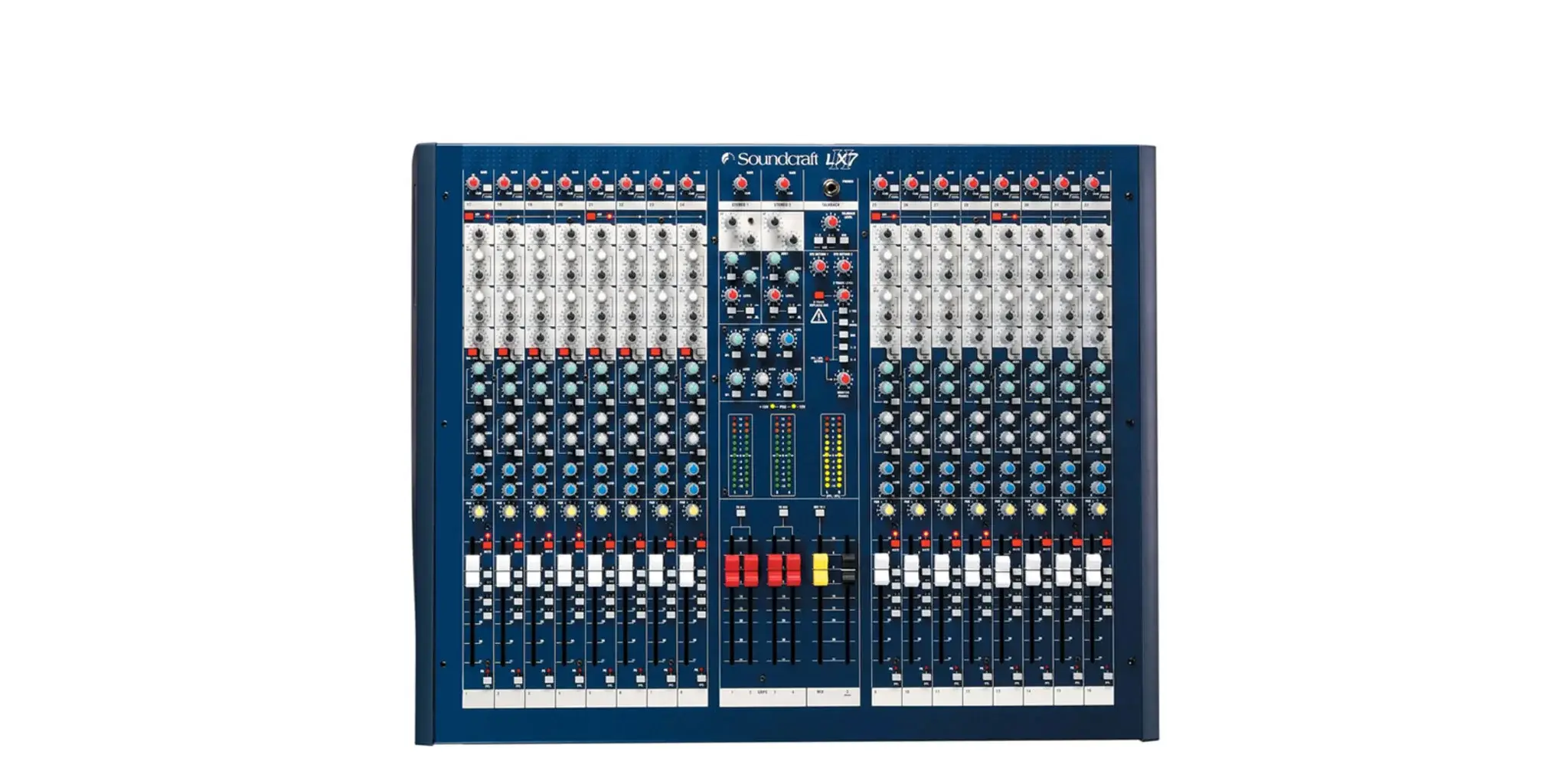

The Soundcraft LX7II is a professional analog mixing console designed for live sound reinforcement, touring bands, theatres, houses of worship, and installed audio systems. Building on the success of the original LX7, the LX7II incorporates Soundcraft’s renowned GB30 microphone preamps and a high-performance 4-band EQ section derived from the flagship MH Series consoles. Combining exceptional sound quality, flexible routing, and rugged reliability, the LX7II is an ideal choice for demanding audio applications.
More Information
Key Features
- Professional analog mixing console
- High-quality Soundcraft GB30 microphone preamps
- 4-band EQ with dual swept mid-frequency controls
- Based on MH3 and MH4 console technology
- Up to 32 mono input channels
- Four stereo inputs/returns
- Four subgroup outputs
- Dedicated mono (center) output
- Direct outputs on first 16 channels
- Six auxiliary sends for monitors and effects
- Durable construction for touring and installed applications
- Designed for live sound, theatres, and houses of worship
Technical Specifications
- Brand: Soundcraft
- Model: LX7II
- Product Type: Analog Mixing Console
- Microphone Preamps: Soundcraft GB30 Series
- EQ Section: 4-Band EQ with Swept Mid Frequencies
- Mono Inputs: Up to 32 Channels
- Stereo Inputs/Returns: 4
- Subgroups: 4
- Main Outputs: Left, Right, and Mono (Center)
- Total Mix Outputs: 7
- Direct Outputs: First 16 Input Channels
- Auxiliary Sends: 6
- Recording Capability: Multi-Track Recording via Direct Outputs
- Console Architecture: Analog Live Sound Mixing Platform
- Applications: Live Sound, Touring, Theatres, Houses of Worship, Installed Audio Systems
- Design Heritage: Based on Soundcraft MH3 and MH4 Consoles
- Manufacturer: Soundcraft
