Description

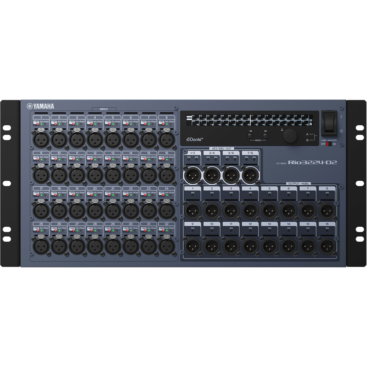

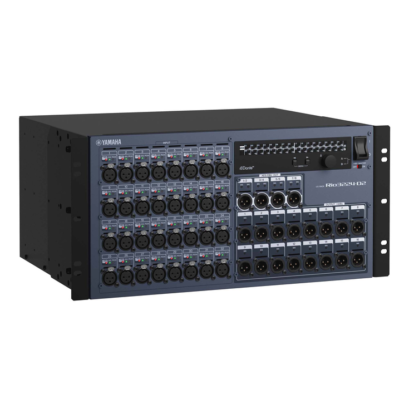

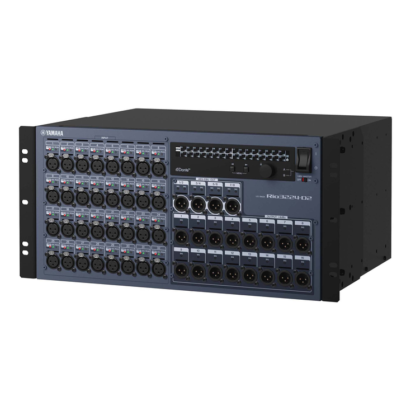

This high-capacity, high-performance I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.
More Information
Key Features
- Dante-enabled professional I/O rack (2nd generation R Series)
- 32 analog mic/line inputs with Yamaha high-quality head amps
- 16 analog outputs for system routing and stage distribution
- 8 AES/EBU digital outputs for digital system integration
- Remote controllable gain and preamps from compatible consoles
- Dual redundant Dante network ports (Primary & Secondary)
- Built-in display for monitoring and system status
- High reliability design for touring and installed sound systems
- Compatible with Yamaha RIVAGE PM, CL, and QL series consoles
- Low-latency audio transmission over Dante network
- Rack-mountable stagebox design for professional setups
Technical Information
- 32 analog inputs and 16 outputs, and 8 digital outputs.

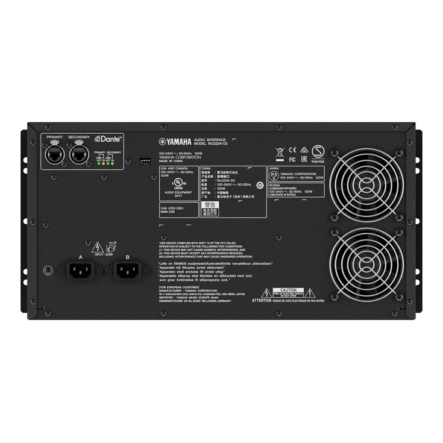

- Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
- Comprehensive display and local control of gain and other parameters.
- Dual power supply units are built in for high reliability.
- Power consumption: 120W
- Dimensions (WxHxD): 480 x 220 x 368mm (18.9″ x 8.7″ x 14.5″)
- Net Weight: 13.5 kg (29.8 lbs)
