Description

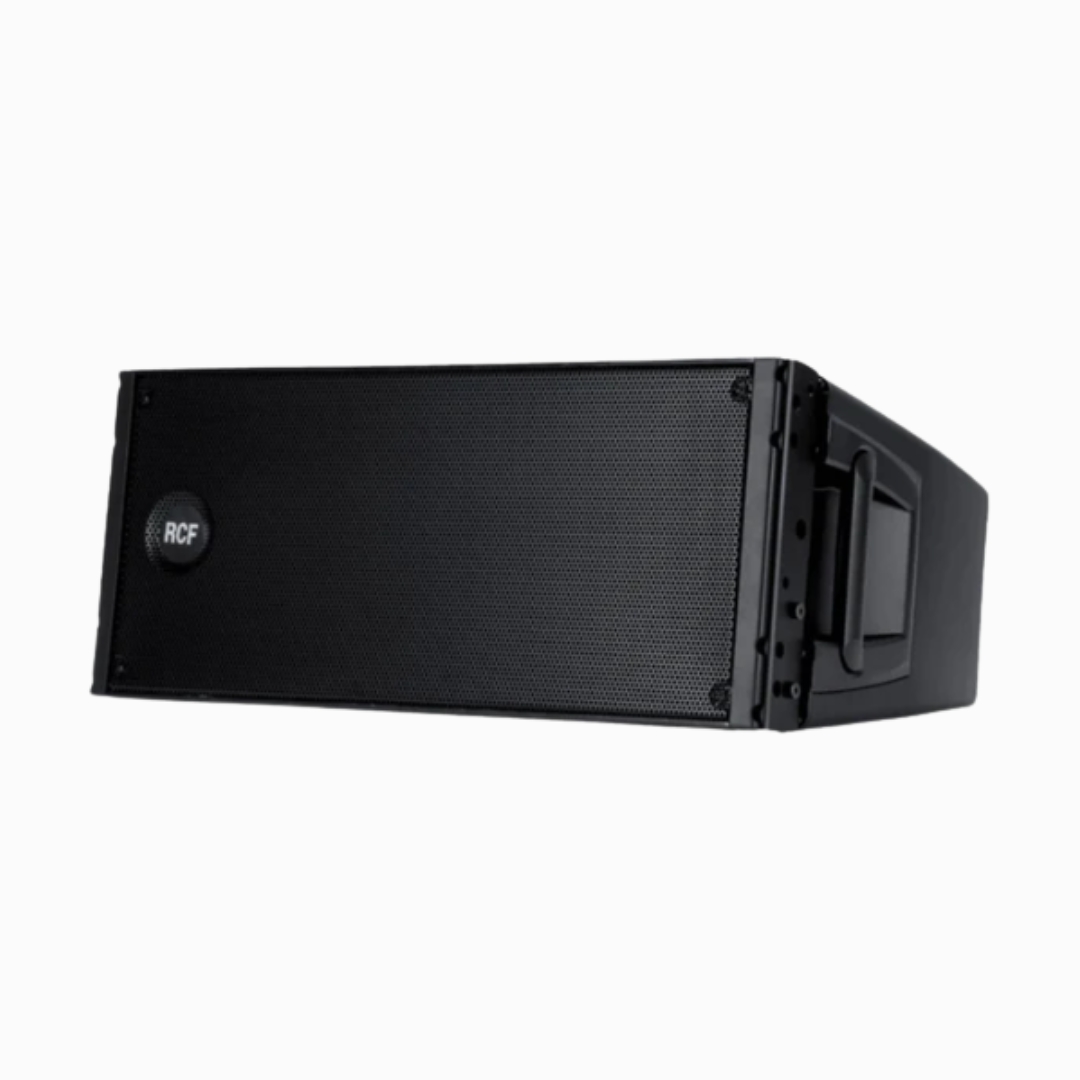

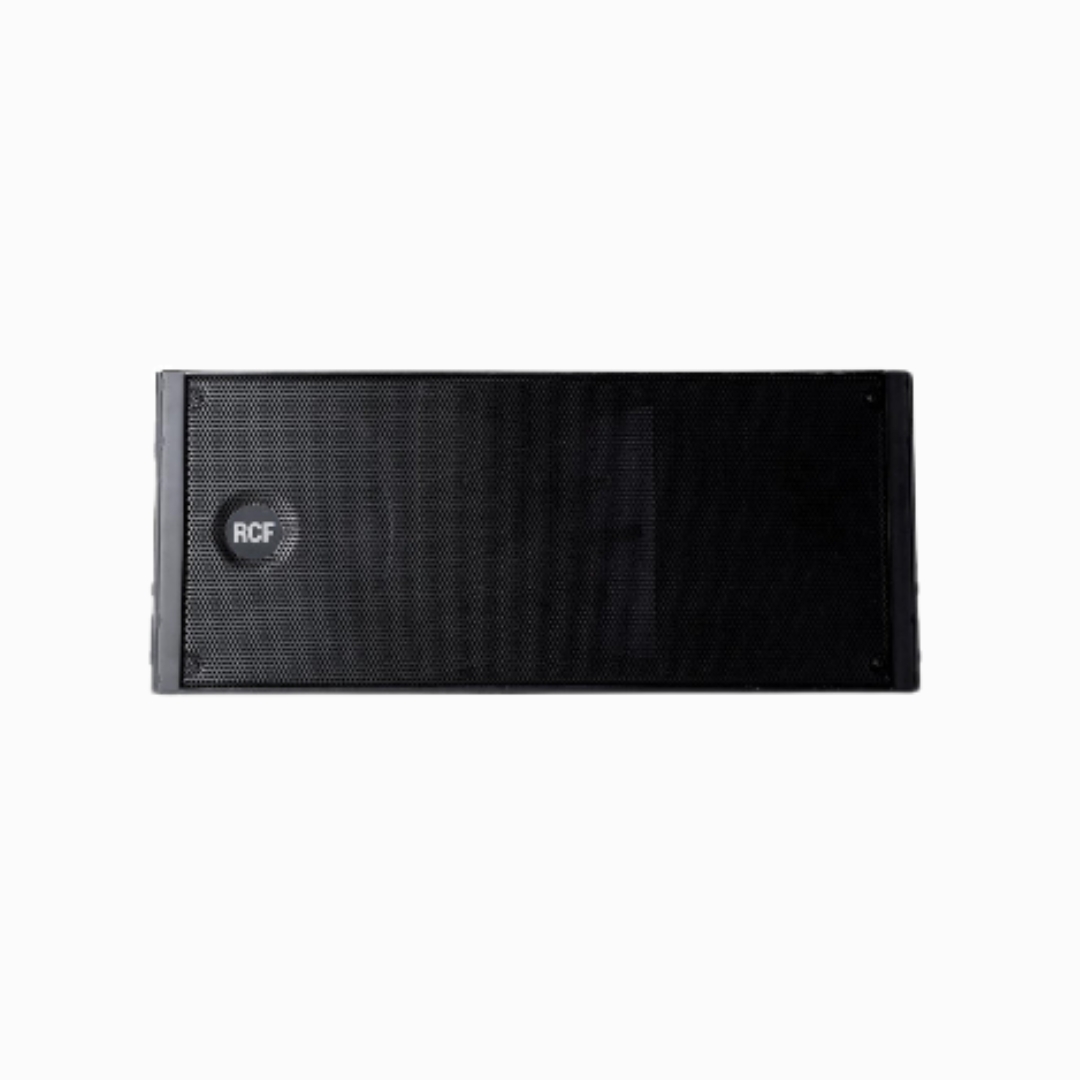

The careful acoustic design, no-compromise transducers, and a unique, composite cabinet design make the HDL 20-A the preferred tool of many professionals. Perfect for live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice when line array performance is needed, and a fast and easy setup is a must. The system is powered by a 1400 Watt Peak Power 2-way digital amplifier, and sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high-curving situations. The system features state-of-the-art RCF transducers, two powerful 10” for a solid bass reproduction, and a large-format 3” voice coil compression driver to deliver vocal clarity and high definition with incredible dynamics. The HDL 18-AS is the ideal flyable bass complement for the HDL 20-A array system.

More Information

  • 1400 Watt Peak power – 700 Watt RMS
  • 135 dB max SPL
  • 55 Hz 20 kHz frequency response
  • 2 x 10″ Woofers
  • 1 x 3″ Compression Driver
  • DSP-controlled input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally reinforced with wood

Technical Specification

  • ACOUSTICAL SPECIFICATIONS-
  • Frequency Response: 55 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 135 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 15°
  • TRANSDUCERS-
  • Compression Driver: 1 x 2.0”, 3.0” v.c
  • Woofer: 2 x 10”, 2.5” v.c

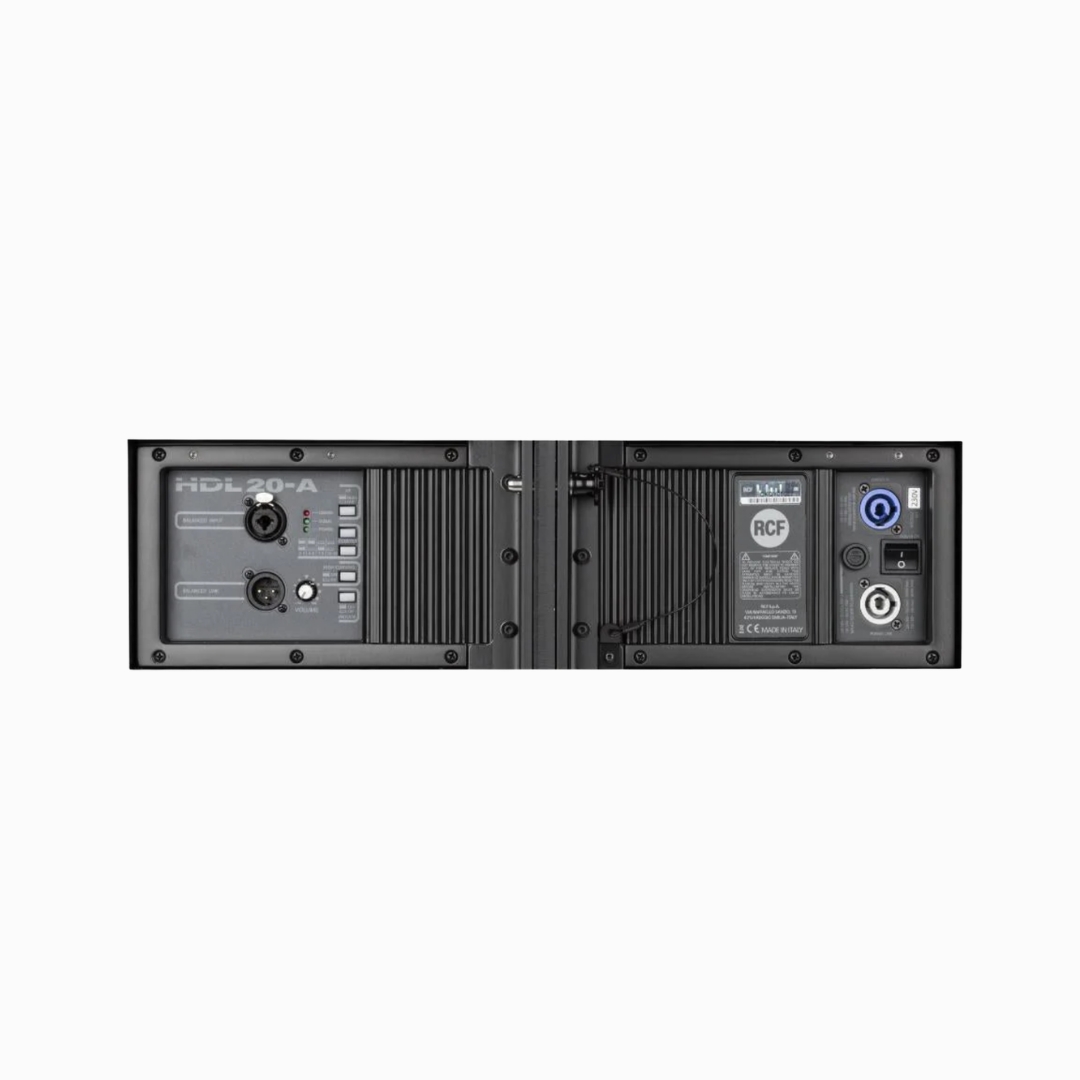

  • INPUT/OUTPUT SECTION-
  • Input signal: bal/unbal. Input connectors: XLR
  • Output connectors: XLR
  • Input sensitivity: – 2 dBu/+4 dBu
  • PROCESSOR SECTION-
  • Crossover Frequencies: 800 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Cluster, HF, High curving, Indoor
  • POWER SECTION-
  • Total Power: 1400 W Peak, 700 W RMS
  • High frequencies: 400 W Peak, 200 W RMS
  • Low frequencies: 1000 W Peak, 500 W RMS
  • Cooling: Convection
  • Connections: Powercon
  • IN/OUTPHYSICAL SPECIFICATIONS-
  • Cabinet/Case Material: PP Composite
  • Hardware: Rigging flyware
  • Handles: 2 sides, 2 back
  • Grille: Steel
  • Color: Black
  • SIZE-
  • Height: 294 mm / 11.57 inches
  • Width: 705 mm / 27.76 inches
  • Depth: 445 mm / 17.52 inches
  • Weight: 30.2 kg / 66.58 lbs
