Description

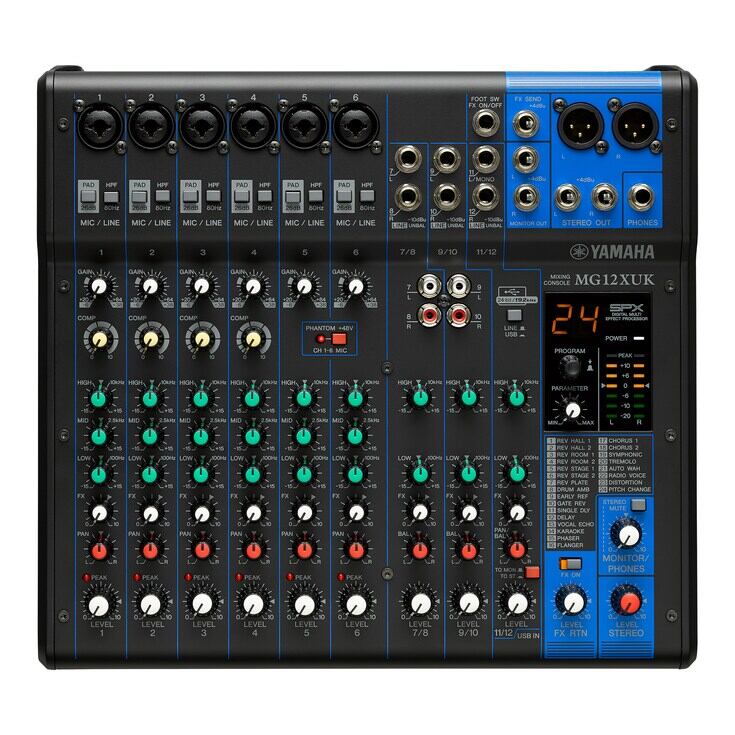

The Yamaha MG12XUK is a compact 12-channel analog mixing console designed for livestreaming, podcasting, small live performances, DJs, churches, rehearsal rooms, and home studios. It is a simplified version of the MG12XU, offering USB recording, Yamaha’s D-PRE microphone preamps, and SPX digital effects in a smaller and more affordable format.
More Information
Key Features
- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (6 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit / 192kHz 2in / 2out USB Audio functions
Technical Specifications
- Mixer Type: Analog mixer with USB audio interface
- Channels: 12 inputs
- Mic Inputs: 6 microphone inputs
- Line Inputs: 12 line inputs
- Channel Layout: 6 mono + 3 stereo channels
- Mic Preamps: Yamaha D-PRE Class-A preamps
- Phantom Power: +48V
- USB Audio Interface: 2-in / 2-out USB Audio Class 2.0
- Audio Resolution: 24-bit / 192 kHz
- Compressors: One-knob compressors
- EQ: 3-band EQ
- Effects Processor: Yamaha SPX digital effects
- Effects Programs: 24 built-in effects
- Stereo Bus: 1 Stereo Bus
- AUX Sends: 1 AUX send (shared with FX)

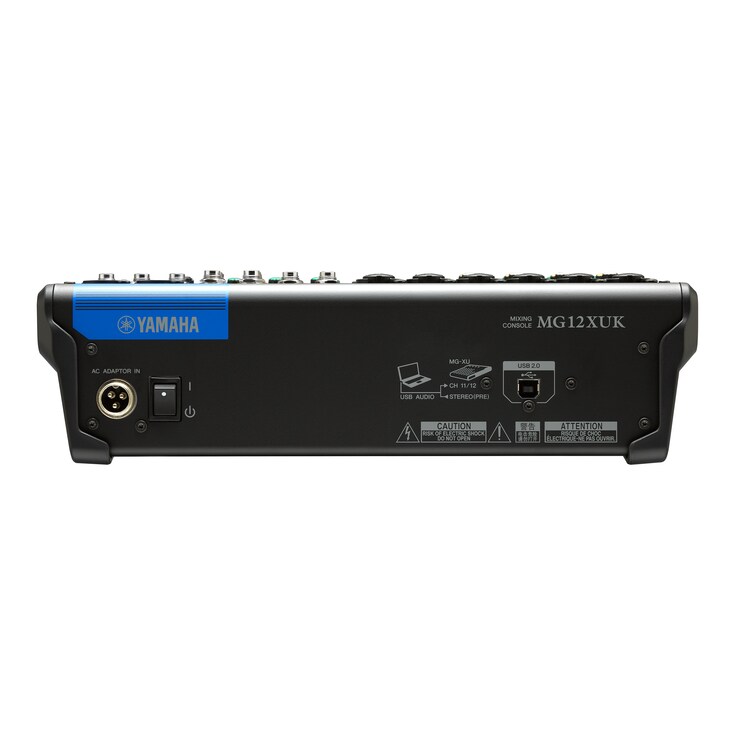

- Outputs: Stereo Out, Monitor Out, Headphone Out
- USB Port: USB Type-B
- Footswitch Support: Yes
- Dimensions: 315 × 91 × 297 mm
- Weight: 3.0 kg
