Description

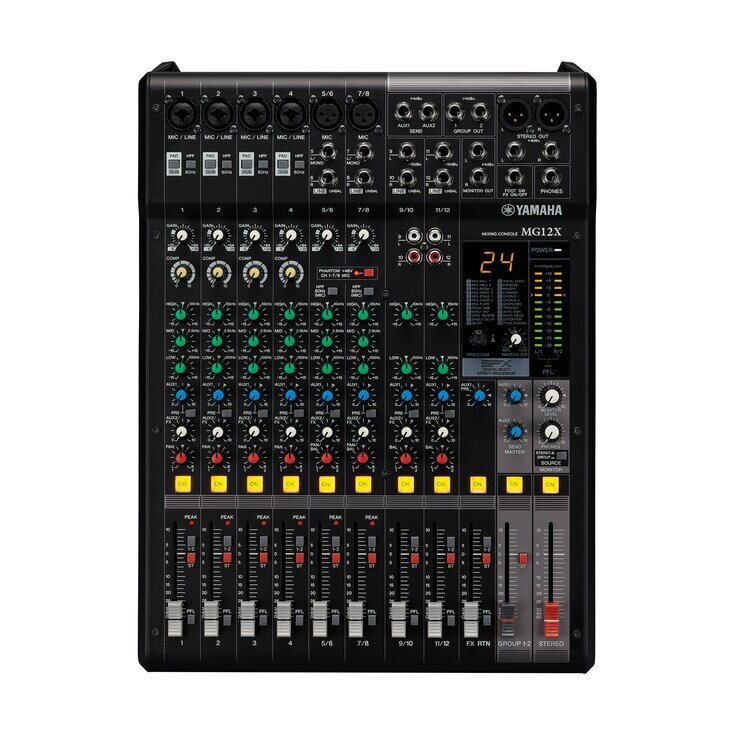

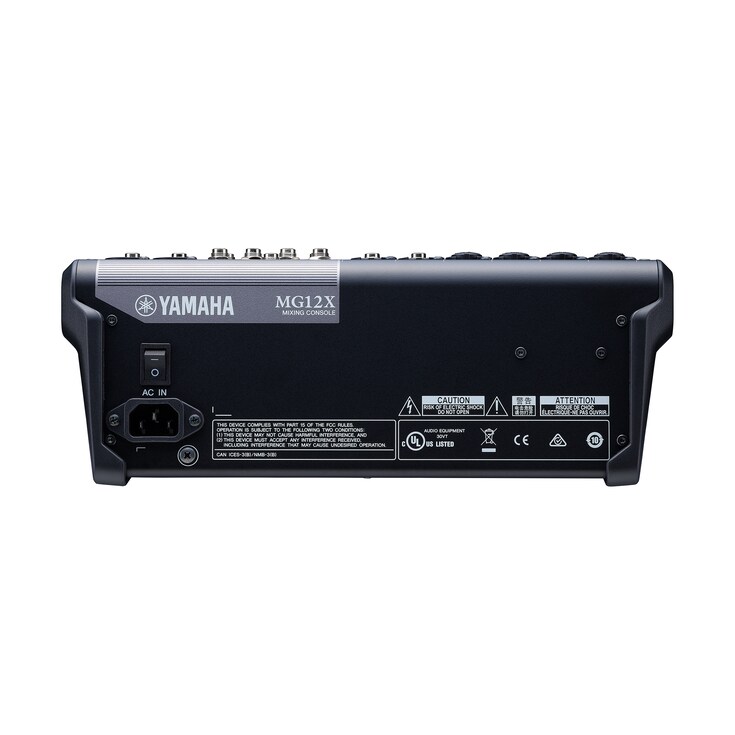

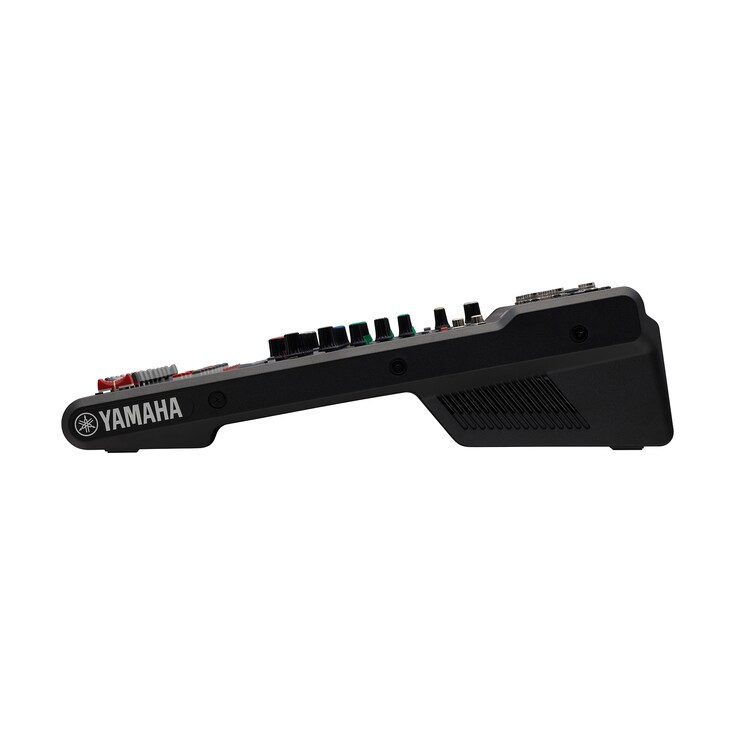

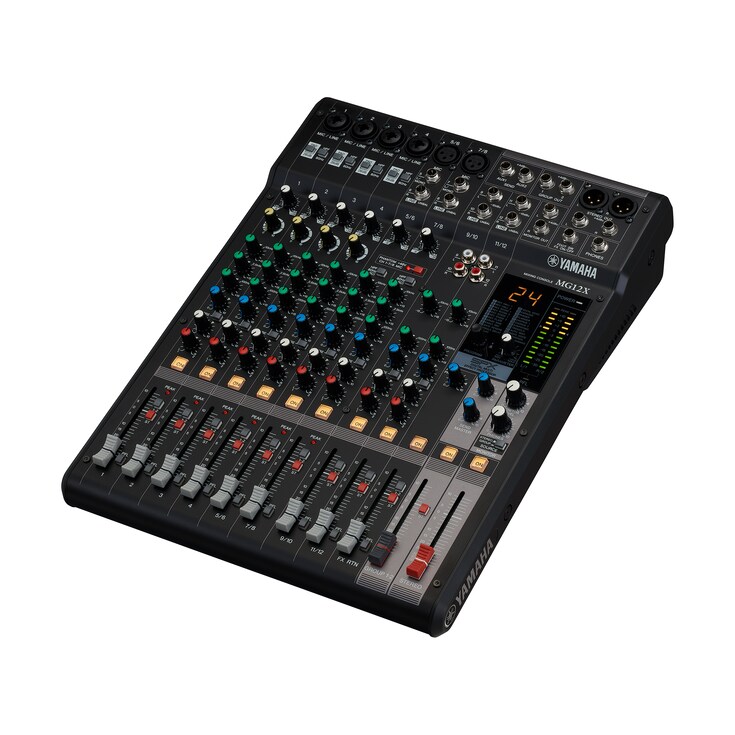

The Yamaha MG12X is a 12-channel analog audio mixer designed for live sound, small bands, churches, events, karaoke setups, and basic studio mixing. It is part of Yamaha’s MG series and focuses on clean sound quality, simple control, and built-in effects, but it does not include a USB audio interface (unlike MG12XU).
More Information
Key Features
- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
Technical Specifications
- Mixer Type: Analog mixing console
- Channels: 12 inputs total (4 mono + 4 stereo configuration)
- Mic Inputs: Up to 6 microphone inputs
- Preamps: Yamaha D-PRE Class-A preamps for low-noise, natural sound
- Phantom Power: +48V for condenser microphones
- EQ: 3-band EQ on mono channels
- Compressors: 1-knob compressors on mono channels for quick vocal/instrument control
- High-Pass Filter: 80 Hz low-cut filter on mic channels
- AUX Sends: 2 AUX buses (including FX send)
- Group Buses: 2 group buses + stereo master bus
- Effects: Built-in SPX digital effects processor (reverb, delay, chorus, etc.)
- Effects Presets: 24 SPX programs
