Description

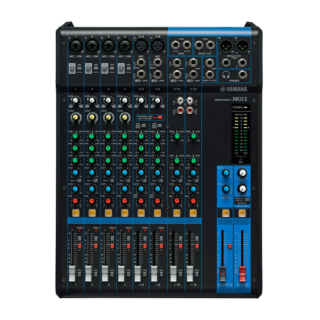

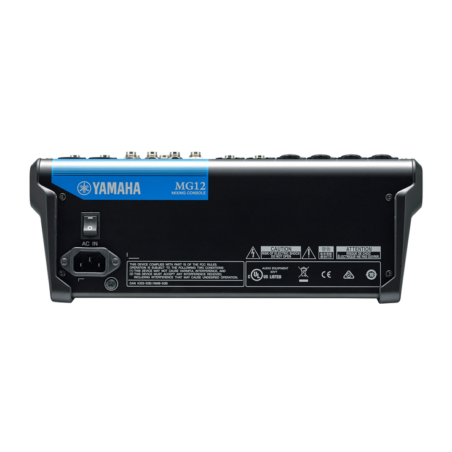

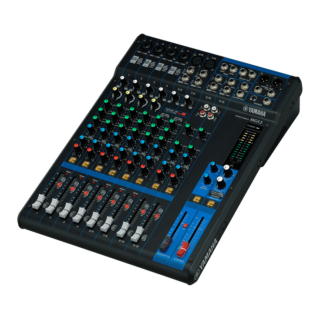

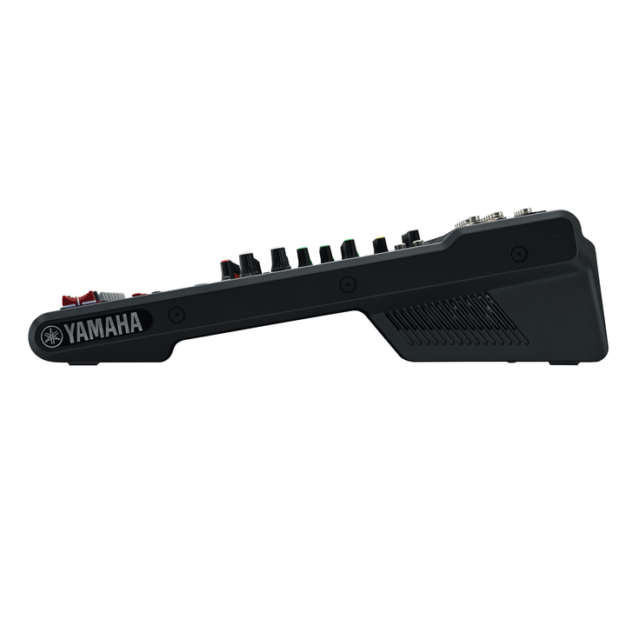

The Yamaha MG12 is a 12-channel analog audio mixer designed for live sound, small bands, churches, karaoke systems, and basic studio setups. It focuses on clean Yamaha sound quality, simple analog control, and reliable performance, but it does not include USB recording or computer interface features.
More Information
Key Features
- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
Technical Specifications
- Type: Analog mixing console (no USB interface)
- Channels: 12 inputs total
- Mic Inputs: Up to 6 microphone inputs (XLR/TRS combo)
- Line Inputs: 12 line inputs (4 mono + 4 stereo configuration)
- Mic Preamps: Yamaha D-PRE Class-A preamps for clean, natural sound
- Phantom Power: +48V support for condenser microphones
- EQ: 3-band EQ on mono channels
- High-Pass Filter: 80 Hz low-cut filter on mic channels
- Compressors: 1-knob compressors on selected channels
- AUX Sends: 2 AUX sends (including FX routing)
- Group Buses: 2 group buses + stereo master bus
- Effects: SPX digital effects (reverb, delay, chorus, etc.)
