Description

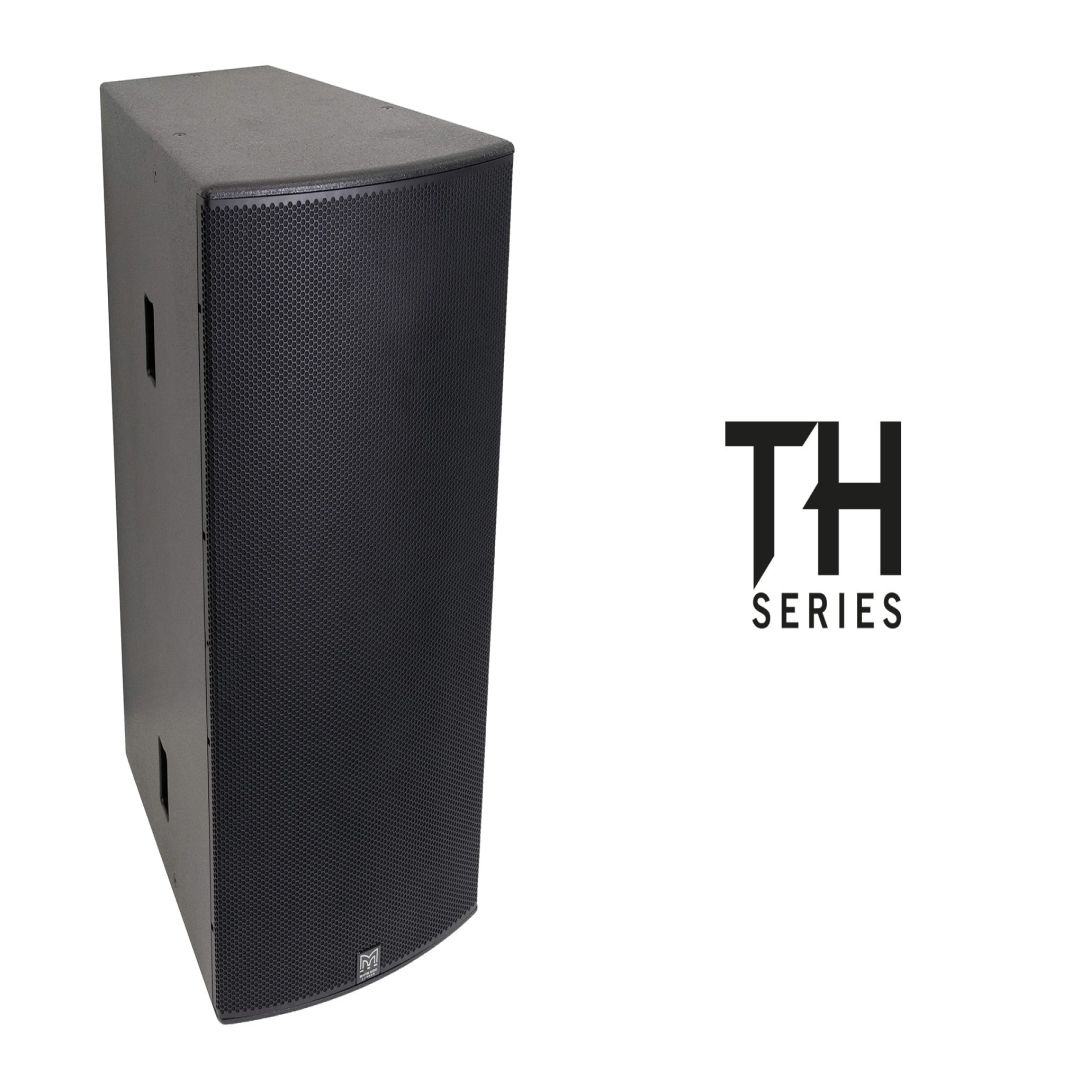

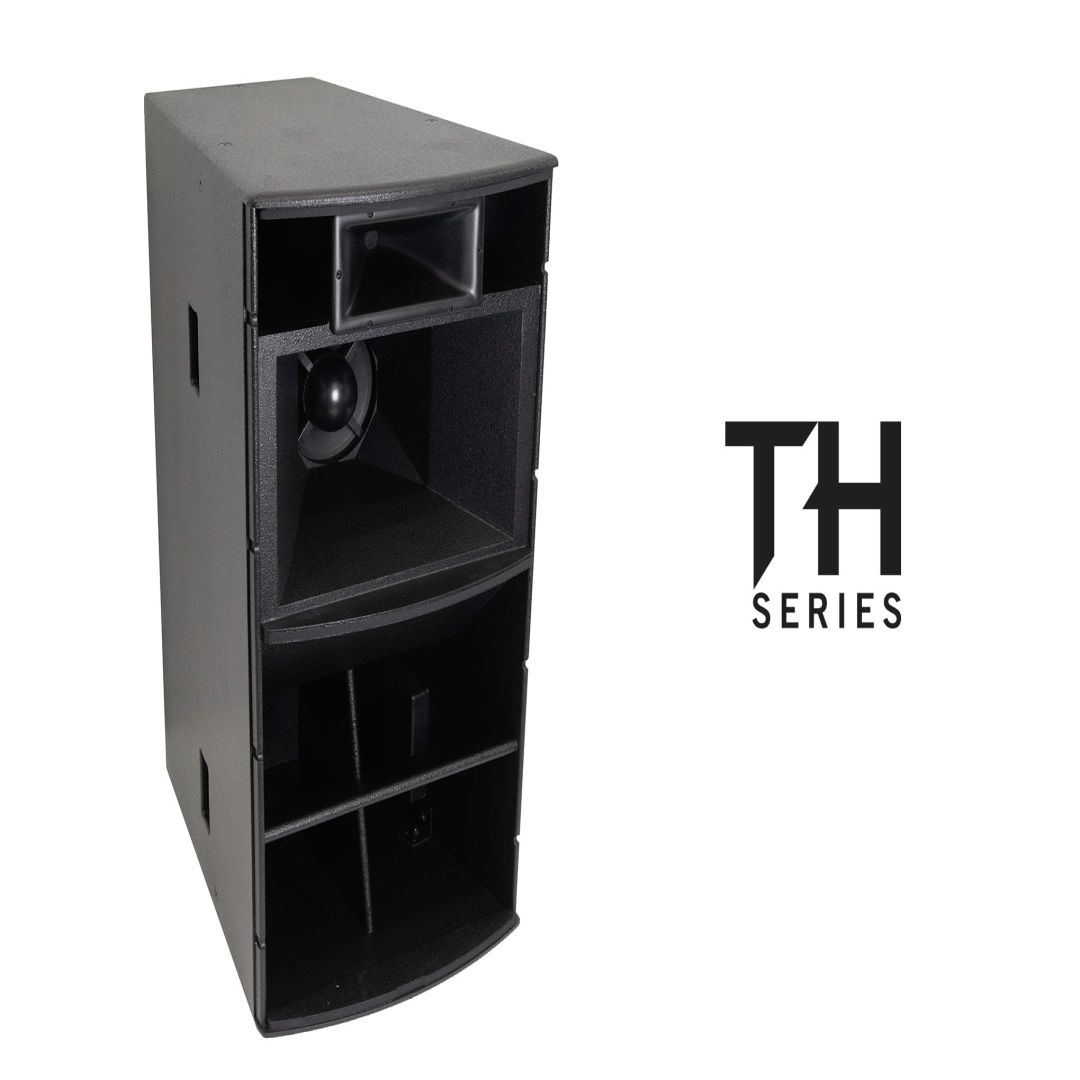

The Martin Audio THV is a very high-performance, fully horn-loaded three-way loudspeaker system designed to deliver exceptional output, efficiency, and long-throw performance from a single wide-bandwidth enclosure. Featuring Martin Audio’s Hybrid® horn technology, the THV combines a powerful 15-inch low-frequency driver, a dedicated 10-inch horn-loaded midrange driver, and a high-frequency compression driver to provide outstanding clarity, projection, and impact. Its vertical format design makes it ideal for medium to large-scale venues, nightclubs, live music venues, and installed sound systems where high SPL and controlled coverage are essential.
More Information
Key Features
- Three-way bi-amplified Hybrid® fully horn-loaded loudspeaker
- Wide-bandwidth system with exceptional output capability
- 15″ low-frequency driver with 4″ voice coil
- 10″ horn-loaded midrange driver with 2.5″ voice coil
- 1″ exit high-frequency compression driver
- Fully horn-loaded design for maximum efficiency and projection
- Peak SPL of 139dB
- Controlled 70° × 40° dispersion pattern
- Rugged multi-laminate birch plywood enclosure
- Durable textured black finish
- Integrated castors and pocket handles for easy transportation
- Multiple M10 mounting points for installation flexibility
Technical Specifications
- Type: Three-Way Bi-Amp Trapezoid Hybrid® Fully Horn Loaded Loudspeaker
- Frequency Response: 50Hz – 18kHz (±3dB)
- Drivers:
- LF: 15″ (380mm) driver with 4″ (100mm) voice coil
- MF: 10″ (250mm) driver with 2.5″ (63.5mm) voice coil
- HF: 1″ (25mm) exit compression driver
- Rated Power:
- LF: 750W AES, 3000W Peak
- MF + HF: 300W AES, 1200W Peak
- Sensitivity:
- LF: 104dB
- MF + HF: 104dB
- Maximum SPL: 133dB Continuous, 139dB Peak
- Nominal Impedance:
- LF: 8Ω
- MF + HF: 8Ω
- Dispersion: 70° Horizontal × 40° Vertical
- Crossover: 200Hz Active, 2kHz Passive
- Enclosure: 250 Litre Multi-Laminate Birch Plywood
- Finish: Textured Black Paint
- Protective Grille: Black Perforated Steel
- Connectors: 2 × Neutrik NL4
- Pin Connections:
- LF: 1+/1-
- MF + HF: 2+/2-
- Fittings:
- 12 × M10 Inserts
- 4 × 100mm Castors
- 4 × Integrated Pocket Handles
- Dimensions (W × H × D):
- 558 × 1067 × 780 mm (908 mm including castors)
- 22 × 42 × 30.7 in (35.7 in including castors)
- Weight: 77.5 kg (170.5 lbs)
