Description

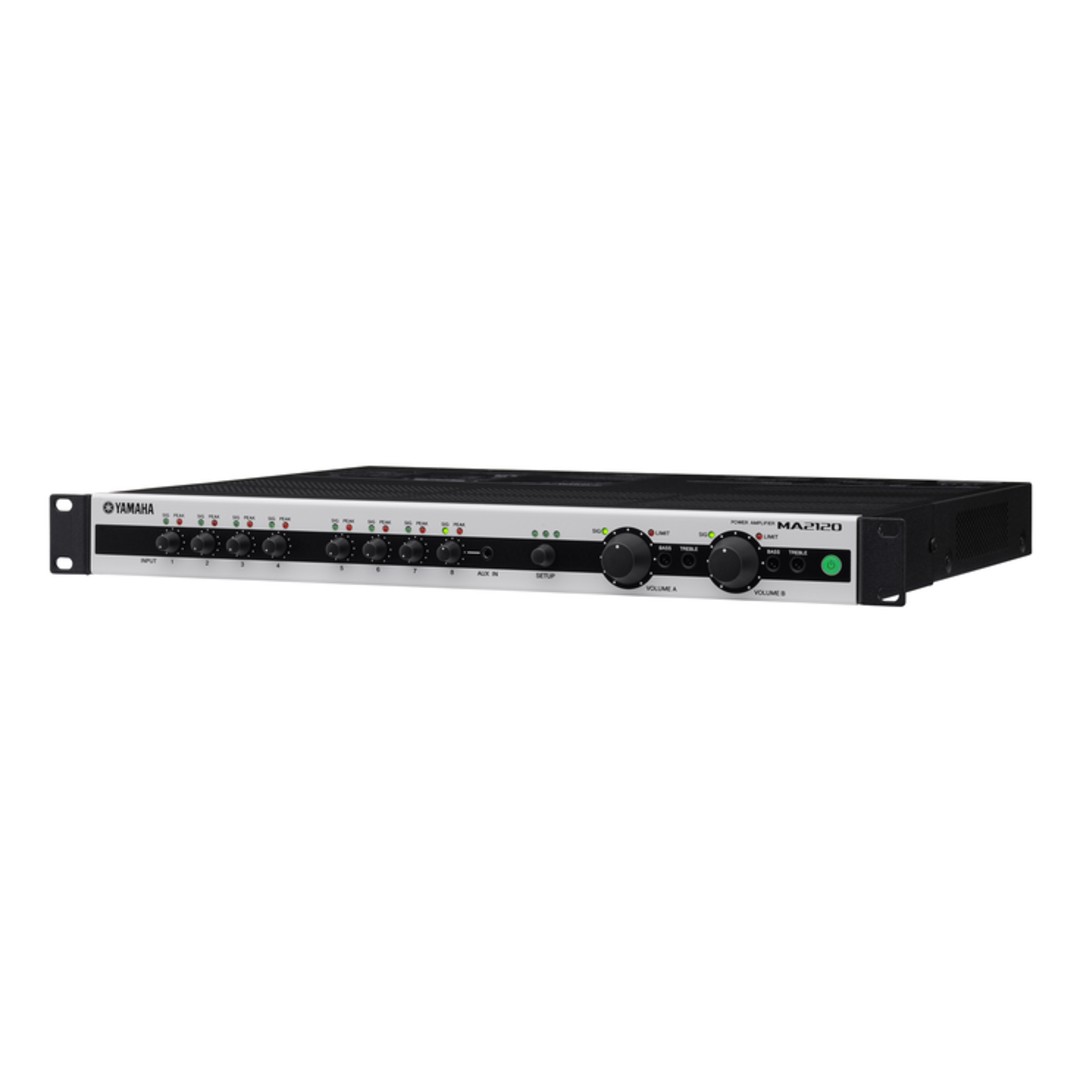

The MA2120 is a professional Class-D mixer power amplifier designed for both low-impedance (Lo-Z) and high-impedance (Hi-Z) speaker systems. It delivers reliable audio performance for PA systems, background music, announcements, and microphone applications. The amplifier supports 70V/100V line operation and low impedance outputs, making it suitable for commercial installations such as schools, offices, malls, railway stations, factories, and public address systems. It includes built-in DSP processing for improved sound quality and easy audio management.
More Information
Features
Class-D mixer amplifier with high efficiency and low power consumption
Supports both Lo-Z and Hi-Z speaker connections
Output power: 120W x 2 channels at 4Ω and 100W x 2 channels at 3Ω/8Ω
Hi-Z operation supports 70V/100V speaker line systems
6 microphone/line inputs and 2 stereo inputs
All microphone inputs support 24V phantom power
Built-in DSP functions for better audio control
Feedback suppressor for reducing microphone feedback noise
Priority ducker function for automatic voice-over announcements
Compressor, leveler, reverb, and echo functions included
Bass and treble equalizer with sound enhancement function
Output EQ for optimizing sound performance of each channel
Built-in speaker EQ presets for Yamaha VXC/VXS speaker series
High-pass filter (HPF) and selectable low-pass filter (LPF) settings
Independent source and volume control for two different zones
Expandable zoning capability using additional PA2120 units
Compatible with optional remote control panels for volume and microphone ON/OFF control
User-friendly front panel controls for simple operation
Technical Specifications
Model: MA2120
Amplifier Type: Class-D Mixer Amplifier
Output Power (Lo-Z):
120W x 2 channels at 4Ω
100W x 2 channels at 3Ω/8Ω
Output Power (Hi-Z):
120W x 2 channels
200W x 1 channel
Speaker Line Support: 70V / 100V
Inputs:
6 Mic/Line Inputs
2 Stereo Inputs
Phantom Power: 24V DC on all mic inputs
DSP Functions:
Feedback Suppressor
Priority Ducker
Compressor
Leveler
Reverb
Echo
Equalizer: Bass, Treble, Output EQ
Filter Functions: HPF and selectable LPF
Zoning: 2-zone source/volume control
Remote Control Compatibility: DCP4V4S, DCP1V4S, DCP4S
Application: Commercial PA and BGM systems
