Description

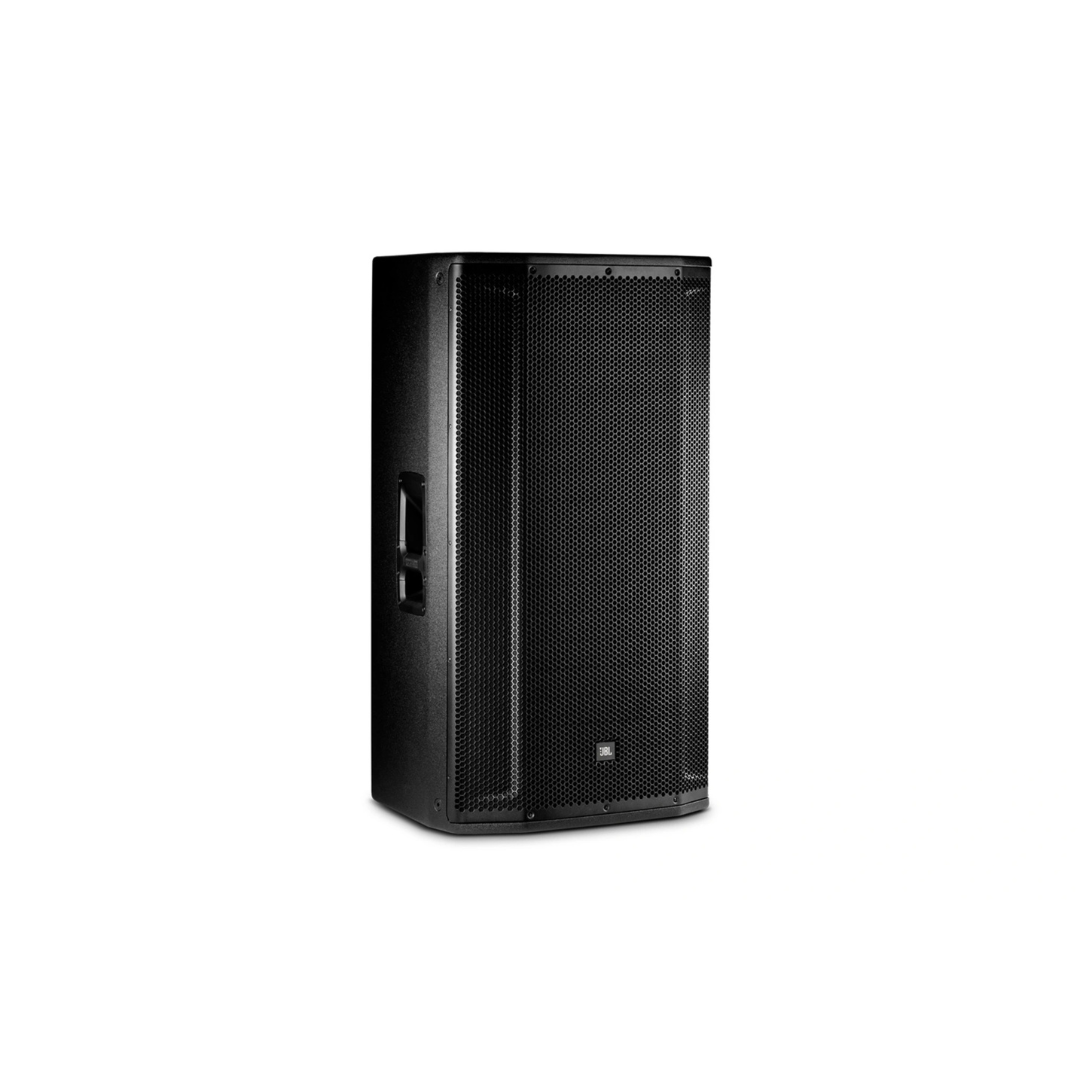

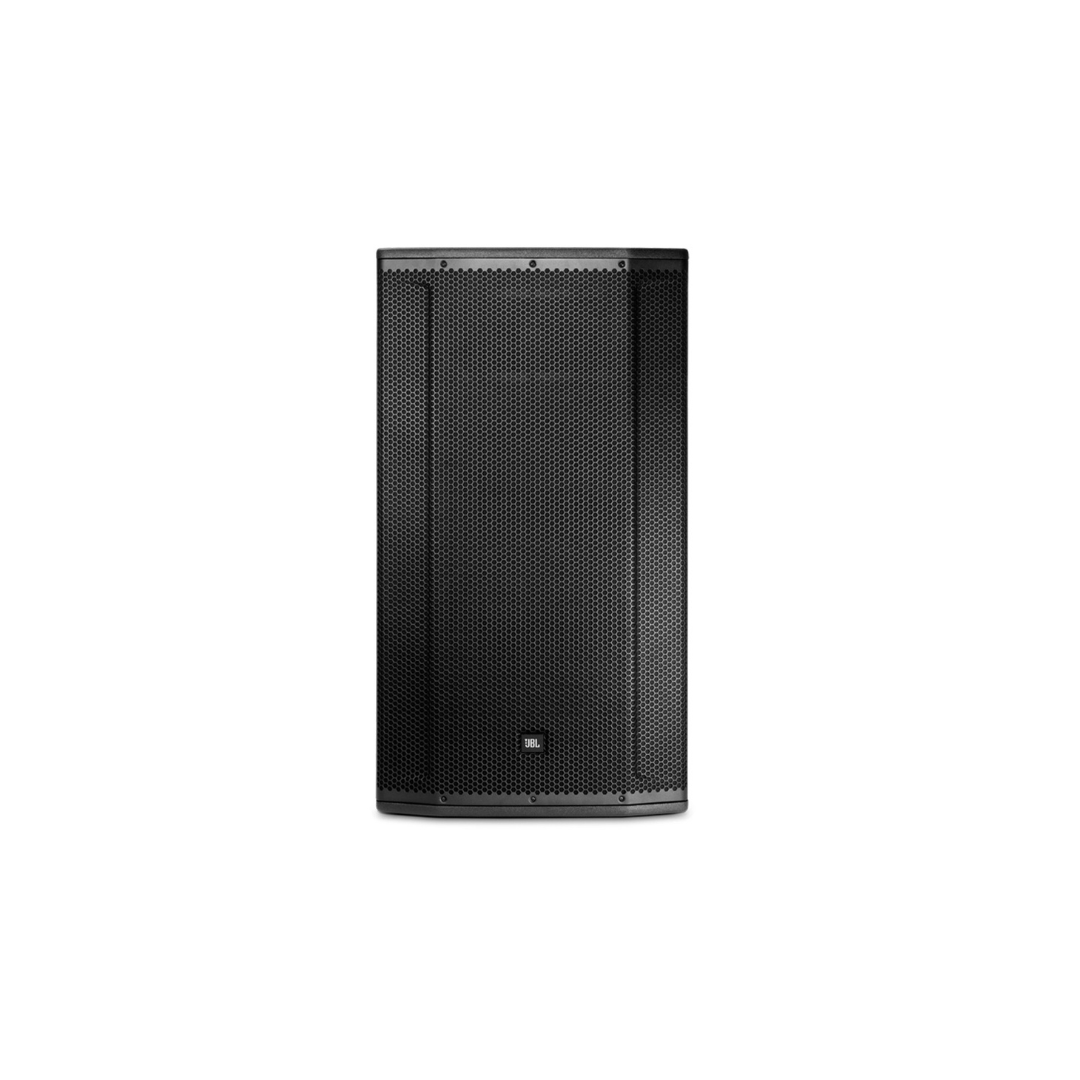

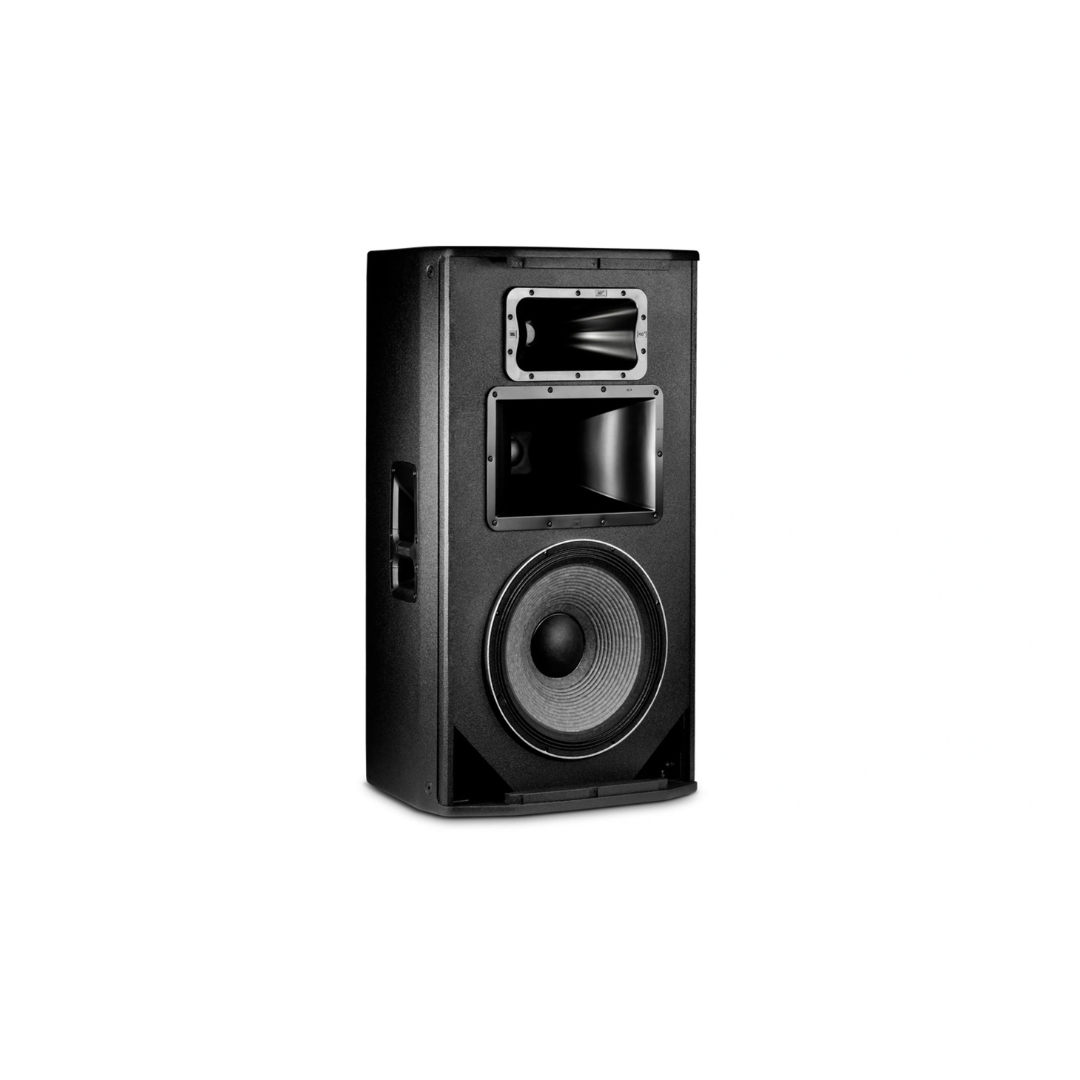

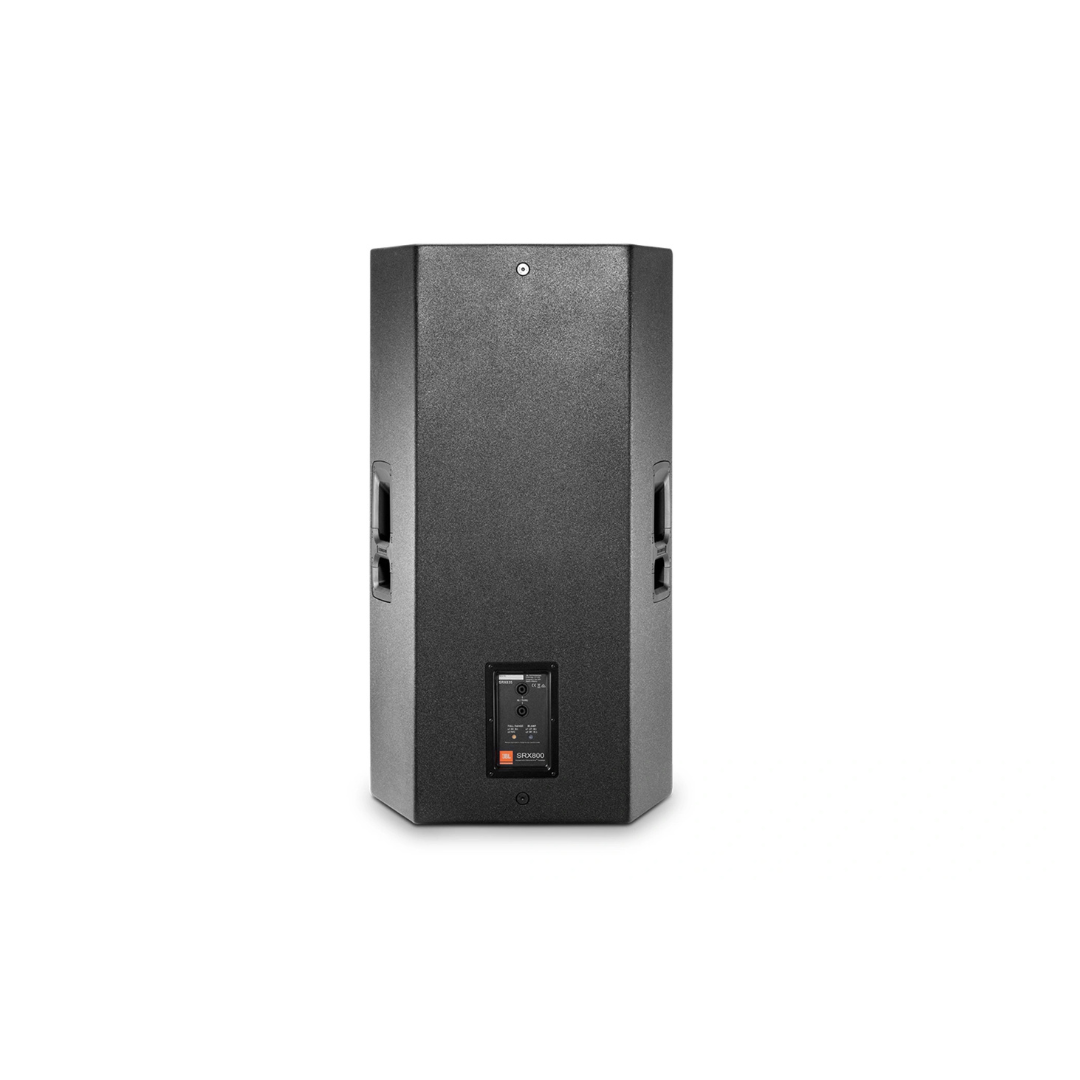

The JBL SRX835 is a passive 15-inch three-way full-range speaker designed for medium-duty main PA, rear fill, and side fill applications. It is ideal for musicians, bands, DJs, concerts, public speaking, rental systems, touring, and permanent installations in performance venues, corporate spaces, educational facilities, and houses of worship. With premium JBL transducers, rugged enclosure construction, high power handling, and flexible mounting options, the SRX835 delivers powerful and professional audio performance.
More Information
Key Features
- Passive 15-inch three-way full-range loudspeaker
- Suitable for medium-duty main PA, rear fill, and side fill applications
- Premium JBL transducers for professional sound quality
- Rugged and versatile enclosure design
- Tunings available for Crown amplifiers and dbx signal processors
- Fully supported in Audio Architect
- High power handling up to 3200W peak
- 60° x 40° coverage pattern
- Passive and Bi-Amp operation modes
- Single 36 mm pole socket for mounting
- 12 x M10 suspension points for installation use
- Rugged 18 mm DuraFlex coated plywood enclosure
- Obsidian DuraFlex finish for durability
- Powder-coated 14-gauge perforated steel grille
- Suitable for live performance systems
- Ideal for mobile and fixed DJ systems
- Suitable for sound system rental and touring
- Suitable for permanent installations
Technical Specification
- Model: JBL SRX835
- Product Type: Passive 15-Inch Three-Way Full-Range Speaker
- System Type: Passive 15-inch, three-way, bass-reflex
- Maximum SPL Output: 124 dB continuous / 130 dB peak
- Frequency Range (-10 dB): 32 Hz – 20 kHz
- Frequency Response (-3 dB): 43 Hz – 20 kHz
- Sensitivity: 95 dB
- System Power Rating: 800 W continuous / 1600 W program / 3200 W peak
- Nominal Impedance: 8 ohms
- Inputs: NL4 input, NL4 loop-thru
- Input Selection: +/-1 or +/-2 selectable
- Operational Modes: Passive / Bi-Amp
- LF Driver: 2275F
- MF Driver: 2107H
- HF Driver: 2432H
- Coverage Pattern: 60° x 40°
- Crossover Frequency: 330 Hz and 2.4 kHz
- Enclosure: 18 mm DuraFlex coated plywood
- Suspension / Mounting: Single 36 mm pole socket, 12 x M10 suspension points
- Handles: 2
- Finish: Obsidian DuraFlex finish
- Grille: Powder-coated obsidian 14-gauge perforated steel with acoustically transparent black cloth backing
- Dimensions (H x W x D): 476 x 544 x 984 mm
- Dimensions in Inches: 18.74 x 21.4 x 38.74 in
- Weight: 43.1 kg (95.0 lbs)
