Description
The JBL SLP14/T is a two-way on-wall loudspeaker designed for premium commercial audio installations. It delivers rich, detailed wide-range sound with broad and consistent coverage in a sleek low-profile enclosure. With 50W continuous power handling, 70V/100V transformer taps, and switchable 8Ω operation, it is ideal for restaurants, hotels, resorts, retail stores, and stylish indoor or protected outdoor applications.
More Information
Key Features
- Two-way on-wall loudspeaker design

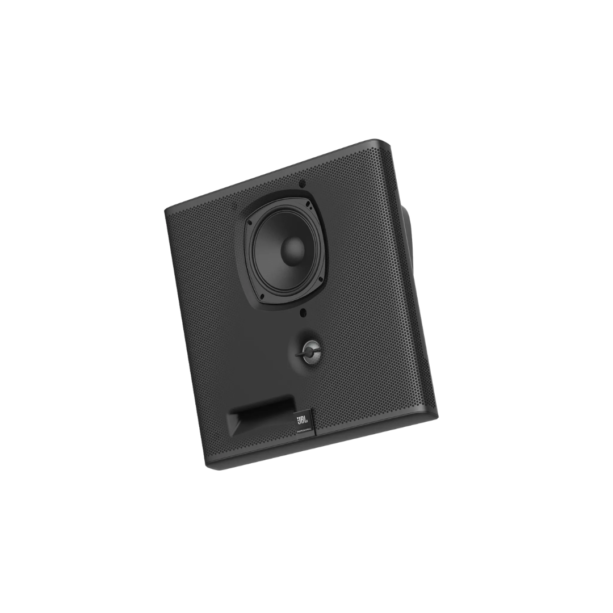

- 100 mm / 4-inch woofer with 1-inch tweeter
- 50W continuous pink noise power handling
- 100W continuous program power rating
- 140° horizontal × 120° vertical coverage
- 15° down-tilted design for flush wall mounting
- Multi-tap transformer for 70V/100V systems
- Switchable 8Ω operation

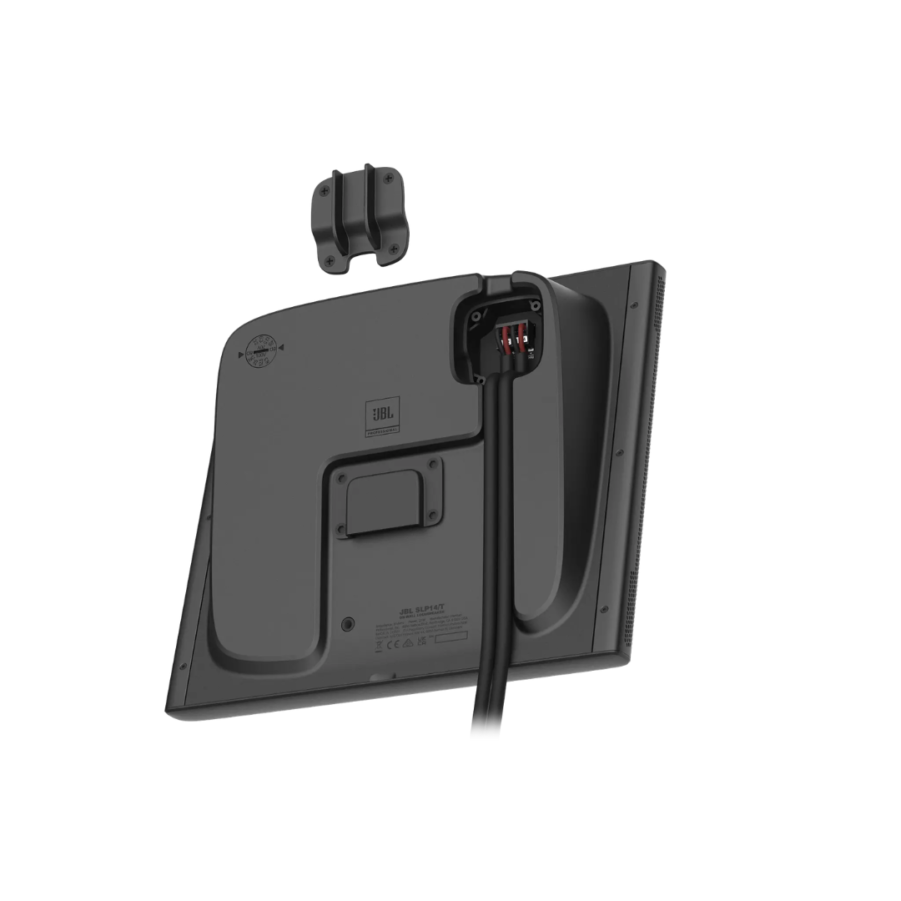

- Slide-in wall bracket included
- Rain cover included for protected outdoor use
- ADA-compliant low-profile enclosure
- Available in black or white finish
Technical Specification
- Model: JBL SLP14/T
- Speaker Type: Two-Way On-Wall Loudspeaker
- Frequency Range (-10 dB): 70 Hz – 20 kHz
- Frequency Response (±3 dB): 80 Hz – 18 kHz
- Power Rating: 100W Continuous Program
- Continuous Pink Noise Power: 50W
- Peak Power: 200W Peak
- Sensitivity: 85 dB
- Maximum SPL: 108 dB Peak / 102 dB Continuous
- Coverage Angle: 140° H × 120° V
- Directivity Factor: 6.9
- Directivity Index: 8.4 dB
- Nominal Impedance: 8Ω
- Transformer Taps at 70V: 25W, 12.5W, 6.3W, 3.2W
- Transformer Taps at 100V: 25W, 12.5W, 6.3W
- Woofer: 120 mm / 4.5 inch Polypropylene Cone
- Woofer Voice Coil: 25 mm on Kapton™ Former
- Tweeter: 20 mm Titanium Dome Tweeter with Neodymium Magnet
- Connector Type: 4-Pin Euroblock Connector
- Wire Gauge Support: 24 to 14 AWG
- Enclosure Material: Polycarbonate + ABS Fireproof
- Flammability Rating: UL94V-0
- Mounting: Slide-In Wall Bracket
- Outdoor Protection: Rain Cover Included
- Color Options: Black or White, Paintable
- Dimensions: 286 × 263 × 100 mm
- Net Weight: 2.8 kg
