Description

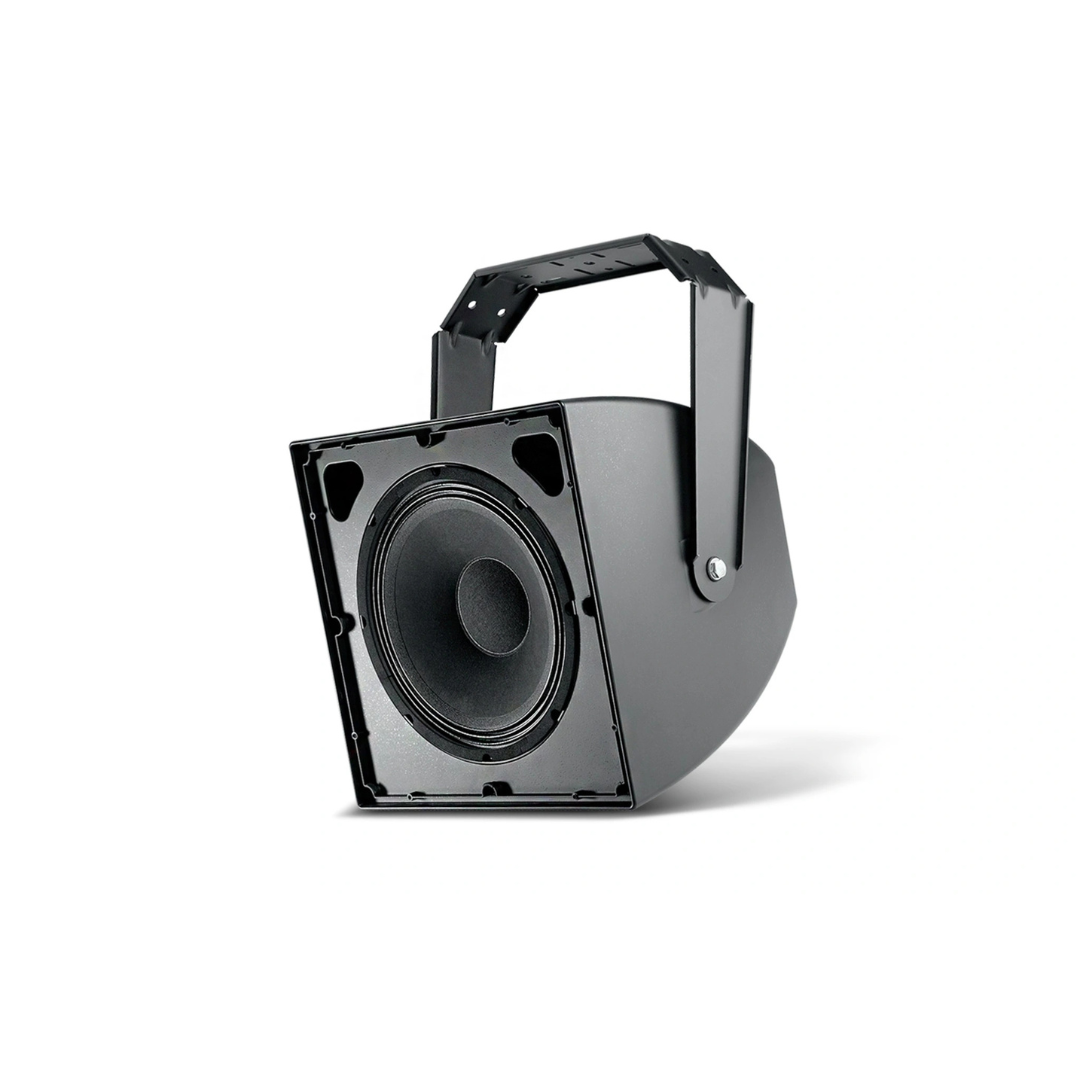

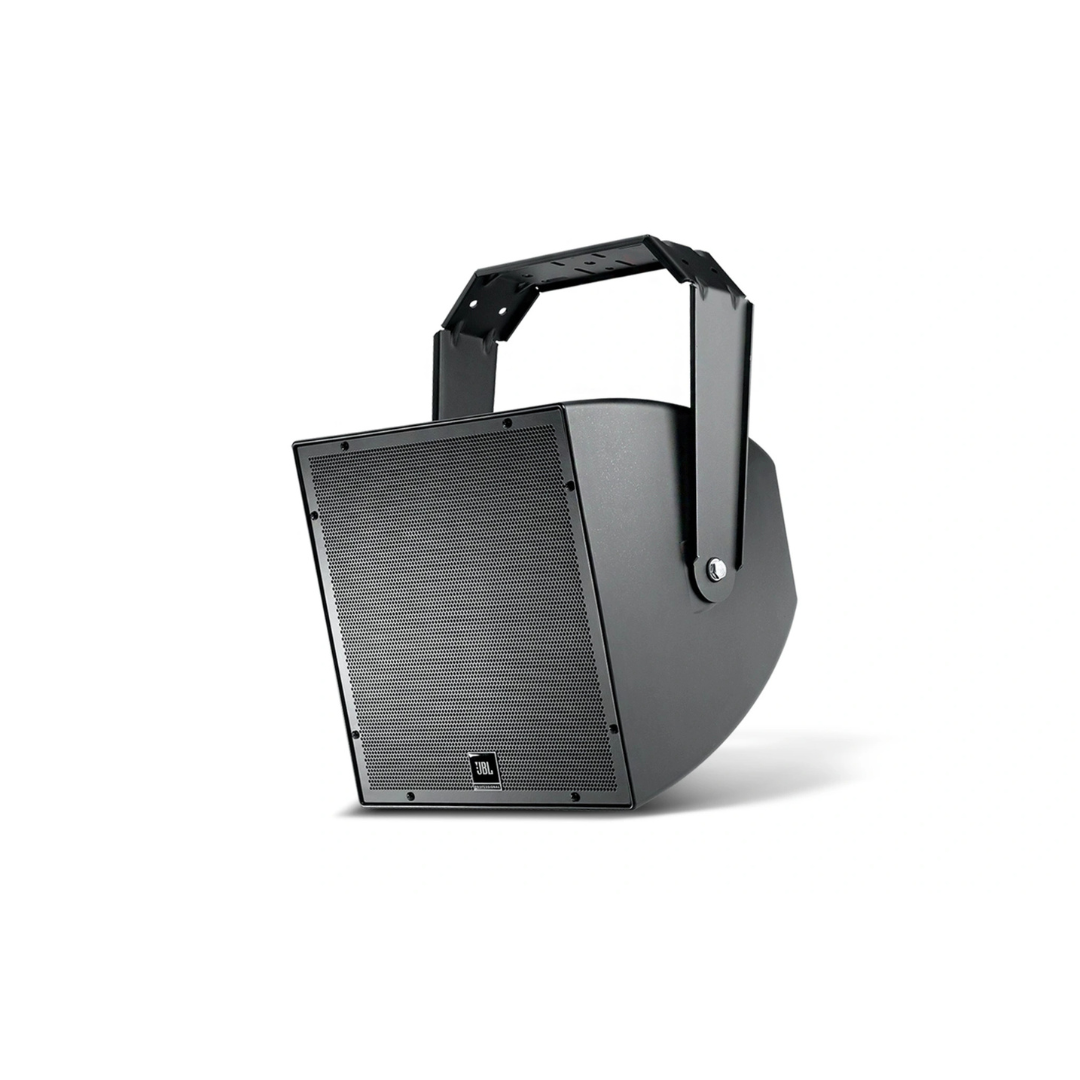

The JBL SCS 12 Cinema Surround Loudspeaker is a high-output 2-way coaxial surround speaker designed for professional cinema environments and immersive multi-channel audio systems. Engineered for both overhead and on-wall installation, the SCS 12 delivers exceptional clarity, wide coverage, and powerful performance, making it ideal for Dolby Atmos®, DTS:X®, and other advanced surround sound formats.
Featuring a 12-inch Kevlar-reinforced woofer and a 1-inch compression driver in a coaxial configuration, the SCS 12 provides consistent 100° × 100° coverage and outstanding intelligibility for dialogue, music, and cinematic special effects. Its high-power passive crossover network and integrated overload protection ensure reliable operation in demanding commercial cinema applications.
More Information
Key Features
- 2-way coaxial full-range cinema surround loudspeaker
- Designed for overhead and on-wall installations
- Ideal for multi-channel surround sound systems
- 400W continuous pink noise power handling
- High sensitivity for high SPL performance
- Consistent 100° × 100° broadband coverage pattern
- Exceptional clarity for surround and immersive audio applications
- Extended frequency response for detailed special effects reproduction
- 12-inch (300 mm) woofer with Kevlar-reinforced cone
- 3-inch (75 mm) voice coil for enhanced power handling
- 1-inch (25 mm) compression driver
- High-temperature polymer diaphragm for reliability
- High-power passive crossover network
- Integrated overload protection circuitry
- Coaxial driver design for uniform sound coverage
Technical Specifications
- Model: JBL SCS 12
- Speaker Type: 2-Way Coaxial Cinema Surround Loudspeaker
- Application: Cinema Surround Sound
- Installation Options: Overhead or On-Wall
- Power Handling: 400W Continuous (Pink Noise)
- Coverage Pattern: 100° × 100°
- Low Frequency Driver: 12-inch (300 mm) Woofer
- Woofer Cone Material: Kevlar-Reinforced Cone
- Voice Coil Size: 3-inch (75 mm)
- High Frequency Driver: 1-inch (25 mm) Compression Driver
- Diaphragm Material: High-Temperature Polymer
- Crossover Type: High-Power Passive Crossover
- Protection: Overload Protection Circuitry
- Configuration: Coaxial Driver Design
- System Type: Full-Range Surround Loudspeaker
- Sensitivity: High Sensitivity Design
- Mounting Options: Ceiling or Wall Mount Installation
