Description

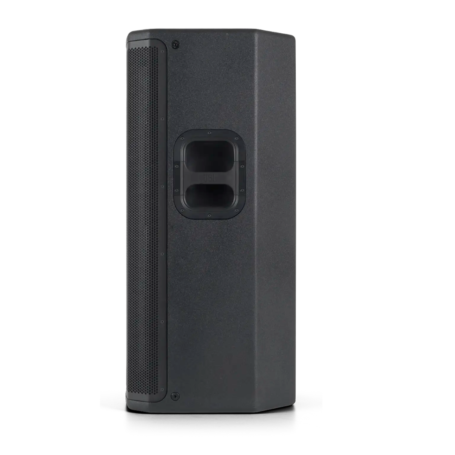

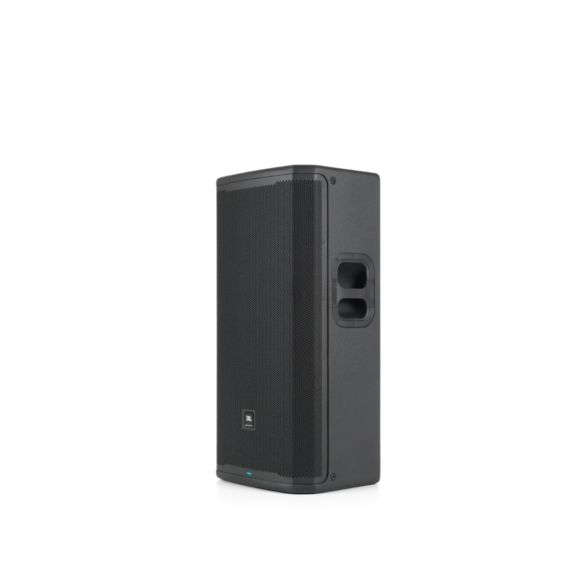

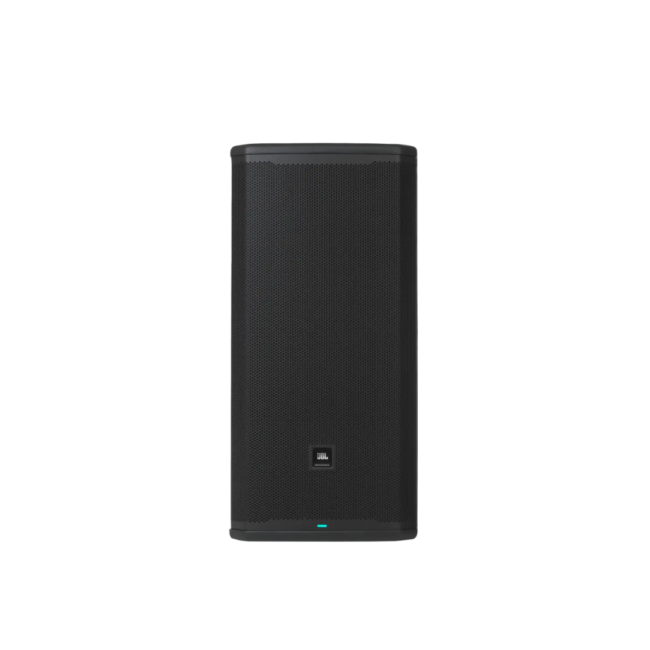

The JBL PRX935 is a professional powered three-way portable PA speaker designed to deliver powerful, room-filling sound with excellent vocal clarity and detailed mid-frequency performance. With a single 15-inch woofer, 6-inch mid-range transducer, advanced DSP, JBL Pro Connect app control, and durable birch cabinet construction, it is ideal for houses of worship, corporate AV, live events, and professional sound reinforcement applications.
More Information
Key Features
- Powered three-way single 15-inch PA speaker system
- 2000W peak and 1000W RMS Class D amplification
- 15-inch ferrite magnet woofer for strong low-frequency response
- 6-inch ferrite magnet mid-range transducer for clear vocal performance
- 1.5-inch JBL compression driver for detailed high-frequency output
- Advanced DSP control with onboard color LCD screen
- JBL Pro Connect app control for Android and iOS devices
- Supports control of up to 10 JBL Pro Connect-enabled systems
- Integrated dbx Automatic Feedback Suppression
- DriveRack technology with system limiter and speaker delay
- 90° x 50° coverage pattern for controlled sound dispersion
- FEA flared port design reduces air noise and distortion
- 18 mm birch cabinet with optimized bracing
- Quiet fanless operation with natural convection cooling
- Eight M10 suspension points and single 36 mm pole socket
- Suitable for houses of worship, corporate AV, live sound, and touring use
Technical Specification
- Product Type: Powered Three-Way Loudspeaker
- Brand: JBL Professional
- Model: PRX935
- System Type: Single 15-inch Powered PA Speaker
- Frequency Range (-10 dB): 40 Hz – 20 kHz
- Frequency Range (-3 dB): 46 Hz – 18 kHz
- Coverage Pattern: 90° x 50°
- Maximum SPL: 136.1 dB
- Power Rating: 2000W Peak / 1000W RMS
- Amplifier Type: Class D
- Woofer: 916G 15-inch ferrite magnet woofer
- Mid-Range Driver: 196H 6-inch ferrite magnet transducer
- High-Frequency Driver: JBL 2408H-2 1.5-inch poly-annular diaphragm compression driver
- Transducer Impedance: Woofer 4Ω, Mid-Range 8Ω, Tweeter 8Ω
- Crossover Frequency: 542 Hz and 2100 Hz
- DSP Control: Onboard color LCD and JBL Pro Connect app
- Feedback Suppression: Integrated dbx Automatic Feedback Suppression

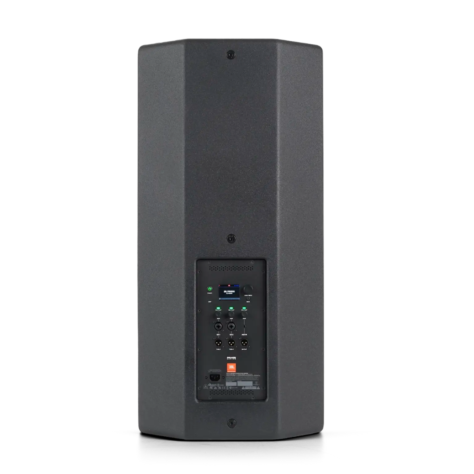

- Inputs: 2 x XLR balanced combo jacks, 1 x 3.5 mm stereo aux input
- Outputs: 2 x XLR loop-through, 1 x XLR mix output
- Cooling: Natural convection, fanless operation
- Suspension / Mounting: 8 x M10 suspension points and single 36 mm pole socket
- System Latency: Less than 1 ms
- Cabinet Material: 18 mm birch plywood
- Product Dimensions: 938.5 x 446 x 434 mm
- Product Dimensions: 36.9 x 17.6 x 17.1 in
- Net Weight: 36.6 kg / 80.7 lbs
- Gross Weight: 42 kg / 92.5 lbs
- Shipping Dimensions: 990 x 535 x 535 mm
- Warranty: 7 Years
