Description

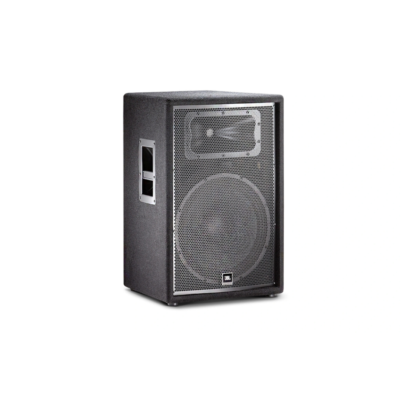

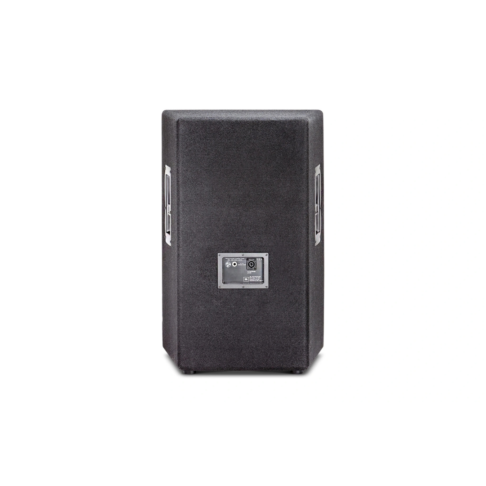

The JBL JRX215 is a two-way 15-inch sound reinforcement loudspeaker system designed for live sound, dance music, and speech applications. Its trapezoidal cabinet design, powerful low-frequency driver, clear high-frequency compression driver, and durable construction make it suitable for DJs, bands, live events, stage use, and professional PA sound reinforcement.
More Information
Key Features
- Two-way 15-inch sound reinforcement loudspeaker system
- Suitable for live sound, dance music, and speech reinforcement
- JBL 15-inch low-frequency driver for strong bass performance
- 64 mm edgewound ribbon voice coil for better efficiency and power handling
- JBL 2414H-C 1-inch polymer diaphragm compression driver
- Progressive Transition high-frequency waveguide for smooth coverage
- Advanced crossover network for balanced sound response
- SonicGuard protection for high-frequency driver safety
- Rugged 19 mm MDF enclosure for long-lasting durability
- Trapezoidal cabinet design for professional sound applications
- 18-gauge perforated steel grille protects internal components
- Non-resonant all-steel handles for easy transport
- Dual-angle pole-mount socket with 10° tilt option
- Ideal for DJs, bands, live events, speech, and PA systems
Technical Specification
- Product Type: Two-Way Sound Reinforcement Loudspeaker
- Brand: JBL Professional
- Model: JRX215
- System Type: 15-inch Two-Way Loudspeaker
- Power Rating: 250W / 1000W
- Frequency Range (-10 dB): 41 Hz – 18 kHz
- Frequency Response (±3 dB): 59 Hz – 13 kHz
- Sensitivity: 99 dB SPL, 1W / 1m
- Nominal Impedance: 8Ω
- Recommended Amplifier Power: 250W to 500W into 8Ω
- Maximum SPL: 129 dB
- Nominal Dispersion: 90° x 50°
- Crossover Frequency: 2.2 kHz
- Low-Frequency Driver: JBL M115-8A
- High-Frequency Driver: JBL 2414H-C 1-inch exit compression driver
- Waveguide: Progressive Transition Waveguide
- Inputs: 1 x Neutrik Speakon NL-4, 1 x 1/4-inch TS phone jack
- Input Connection: Parallel
- Enclosure Material: 19 mm MDF, Medium Density Fiberboard
- Grille: 18-gauge perforated steel grille
- Mounting: Dual-angle pole-mount socket
- Product Dimensions: 699 x 460 x 432 mm
- Product Dimensions: 27.5 x 18.1 x 17 in
- Net Weight: 27.4 kg / 60.5 lbs
