Description

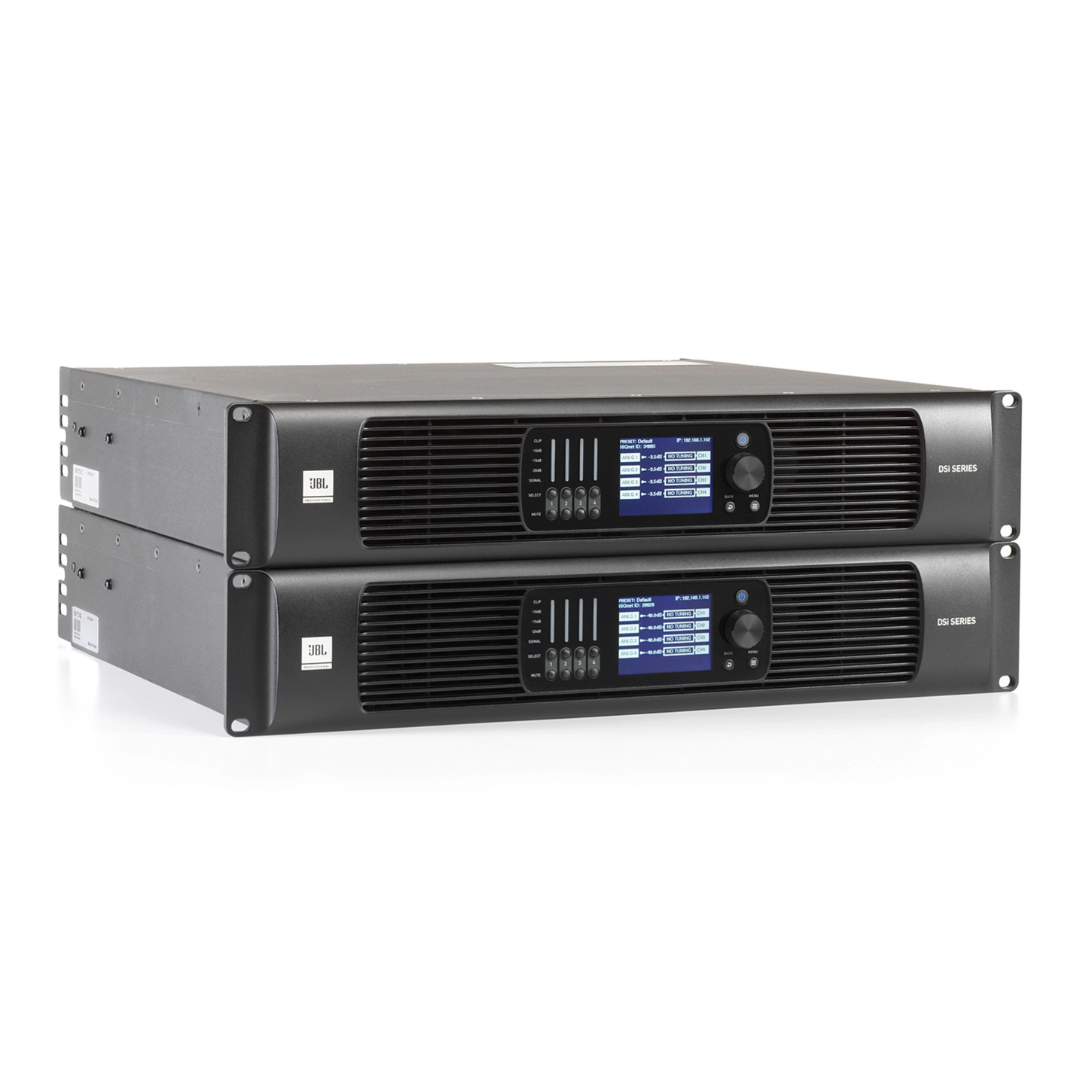

The JBL DSi 2.0 Cinema Amplifier Series is a professional line of dedicated cinema amplifiers engineered specifically for JBL cinema loudspeakers. Built on proven Crown DSi Digital Screen Array technology and enhanced with advanced DSP from Crown’s flagship CDi DriveCore platform, the DSi 2.0 Series delivers powerful, reliable, and cost-effective amplification for modern cinema environments.
Available in multiple power configurations with both standard and Dante/AES67-enabled “D” models, the DSi 2.0 amplifiers provide seamless integration with Dolby Atmos® systems, immersive audio installations, and networked cinema environments. Featuring advanced DSP processing, JBL speaker presets, SNMP monitoring, and Crown DriveCore technology, these amplifiers simplify system deployment while ensuring exceptional audio performance and system reliability.
Key Features
- Dedicated cinema amplifier series for JBL cinema loudspeakers
- Four amplifier channels with bridgeable outputs
- Designed specifically to match JBL cinema speaker power requirements
- Available in standard and Dante/AES67-enabled D models
- Direct Dolby Atmos® integration on D models
- High-power 2Ω operation for driving multiple surround speakers per channel
- Crown DriveCore™ technology for superior efficiency and reliability
- 96kHz / 32-bit floating-point DSP processing
- FIR filtering for enhanced loudspeaker optimization
- LevelMAX™ limiting for loudspeaker protection
- 8-channel parametric EQ
- Built-in delay processing
- JBL Cinema Speaker presets for fast configuration
- SNMP and Ethernet connectivity for network monitoring
- HiQ port compatible with HARMAN Audio Architect software
- GPIO/AUX interface for remote control and monitoring

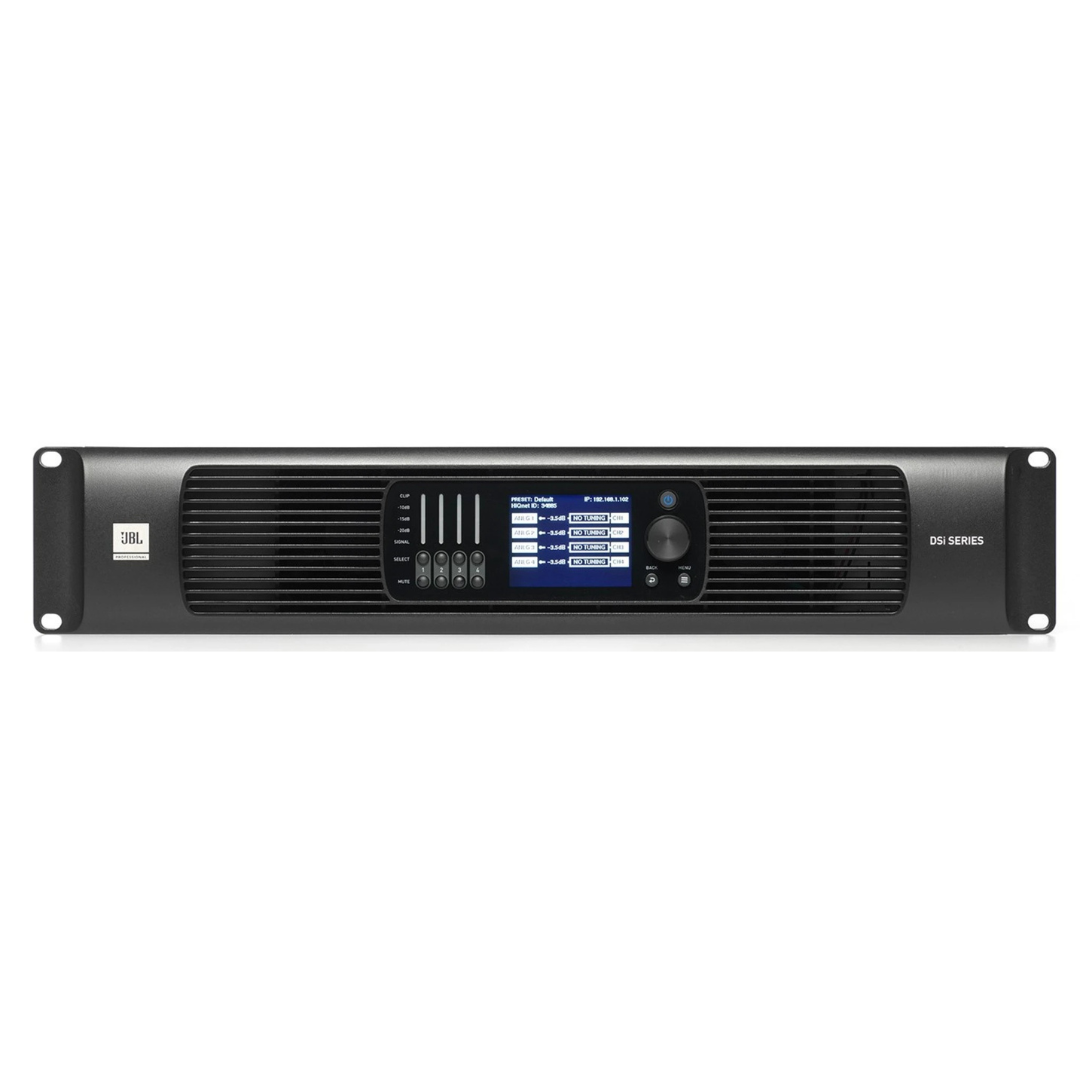

- Front-panel LCD display with encoder control
- Ultra-quiet cooling system
- Standard 2RU rackmount design
- Optimized for immersive cinema audio installations
Technical Specifications
- Series: JBL DSi 2.0 Cinema Amplifiers
- Amplifier Type: Professional Cinema Power Amplifier
- Channels: 4
- Output Configuration: Bridgeable Outputs
- DSP Processing: 32-Bit / 96kHz Floating-Point DSP
- DSP Functions:
- FIR Filtering
- LevelMAX™ Limiting
- 8-Channel Parametric EQ
- Delay Processing
- JBL Cinema Speaker Presets
- Network Connectivity:
- Ethernet
- SNMP Monitoring
- HiQ Control Port
- GPIO/AUX Interface
- D-Model Connectivity:
- Dante®
- AES67
- Direct Dolby Atmos® Integration
- Drive Technology: Crown DriveCore™
- Frequency Response: 20 Hz – 20 kHz
- Total Harmonic Distortion (THD): 0.35%
Power Requirements
- AC Input Voltage: 100–220 VAC ±10%
- Frequency: 50/60 Hz
- Power Connector: IEC 320 Detachable Connector
- Operating Voltage Range: 100–240 VAC
