Description

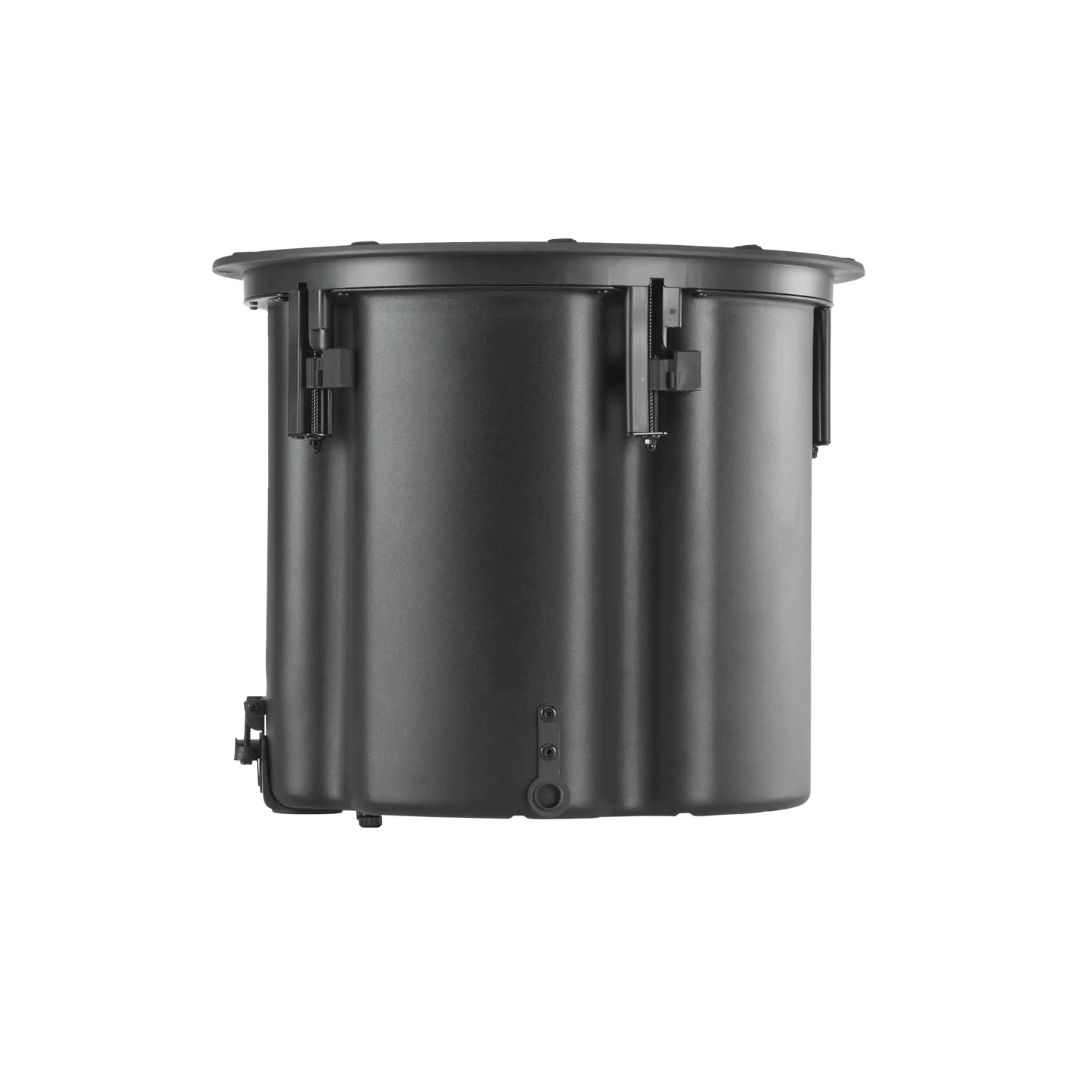

The JBL Control 419CS/T is a ceiling subwoofer designed to deliver extended low-frequency bass performance in commercial and professional audio installations. It features an 8-inch woofer with an integrated enclosure, making it suitable for installation in most ceiling plenum spaces.

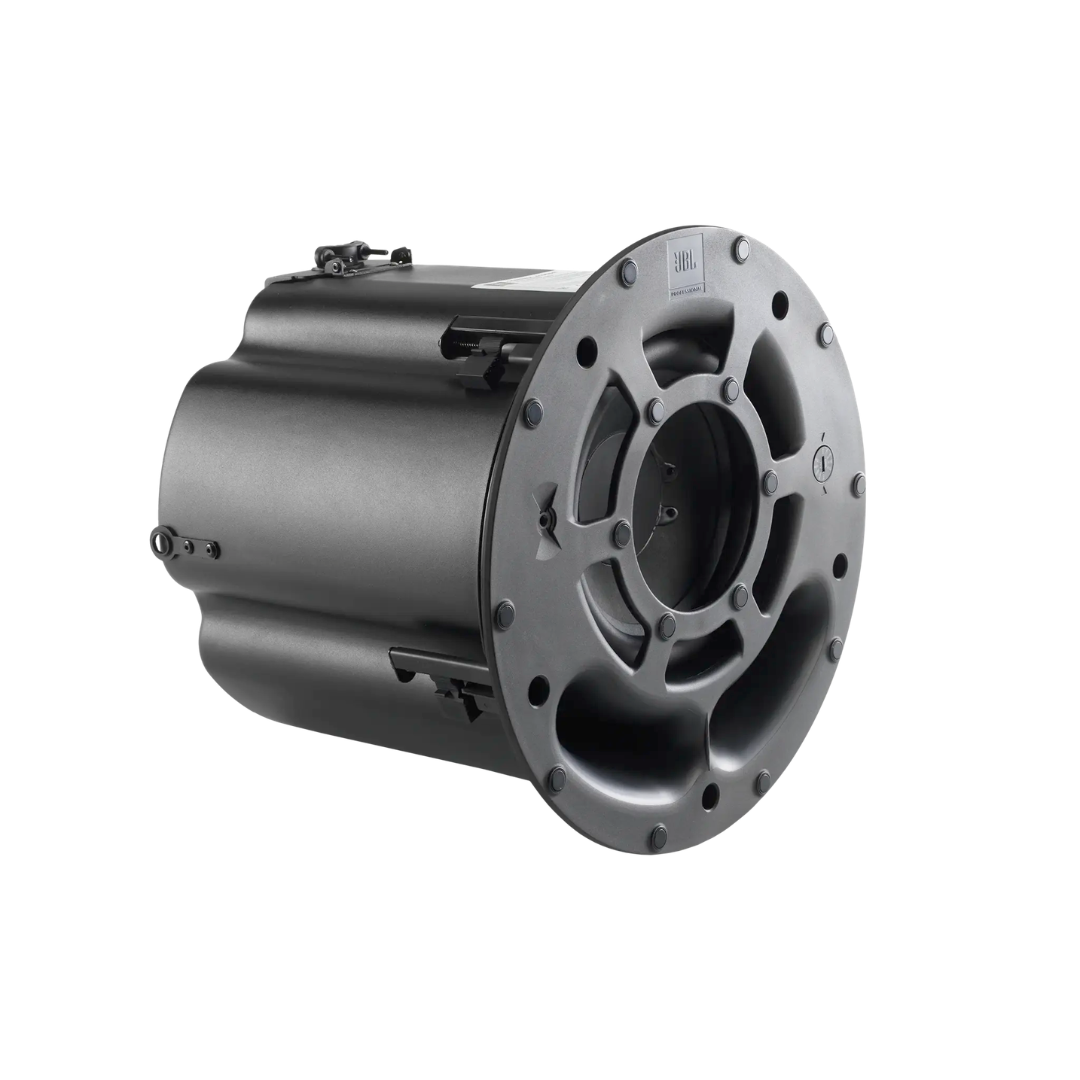

The Control 419CS/T integrates seamlessly with JBL Control 400 Series full-range loudspeakers, helping to significantly extend low-frequency bass output. Its integrated enclosure includes two large tapered ports that provide warm, smooth, and powerful bass response.

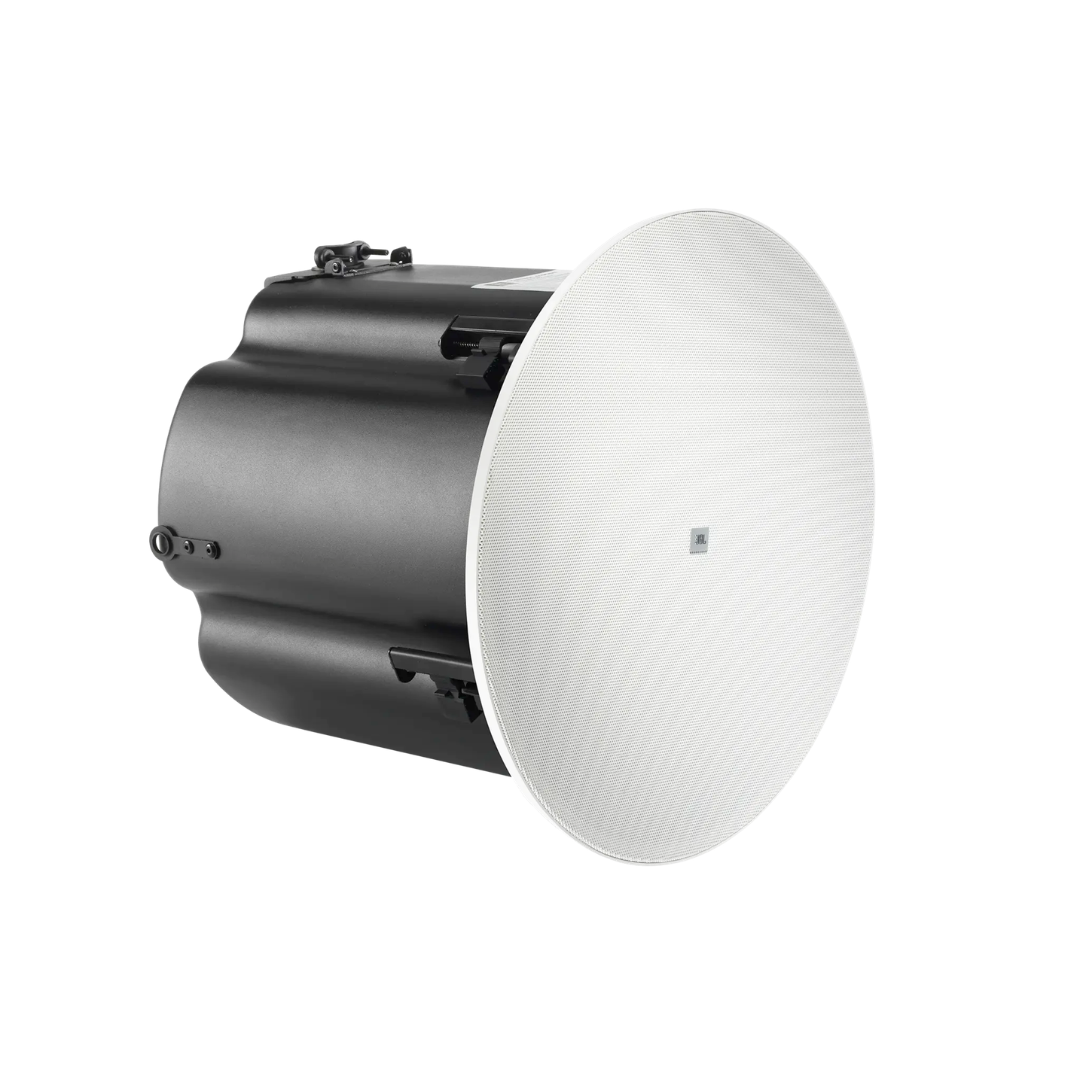

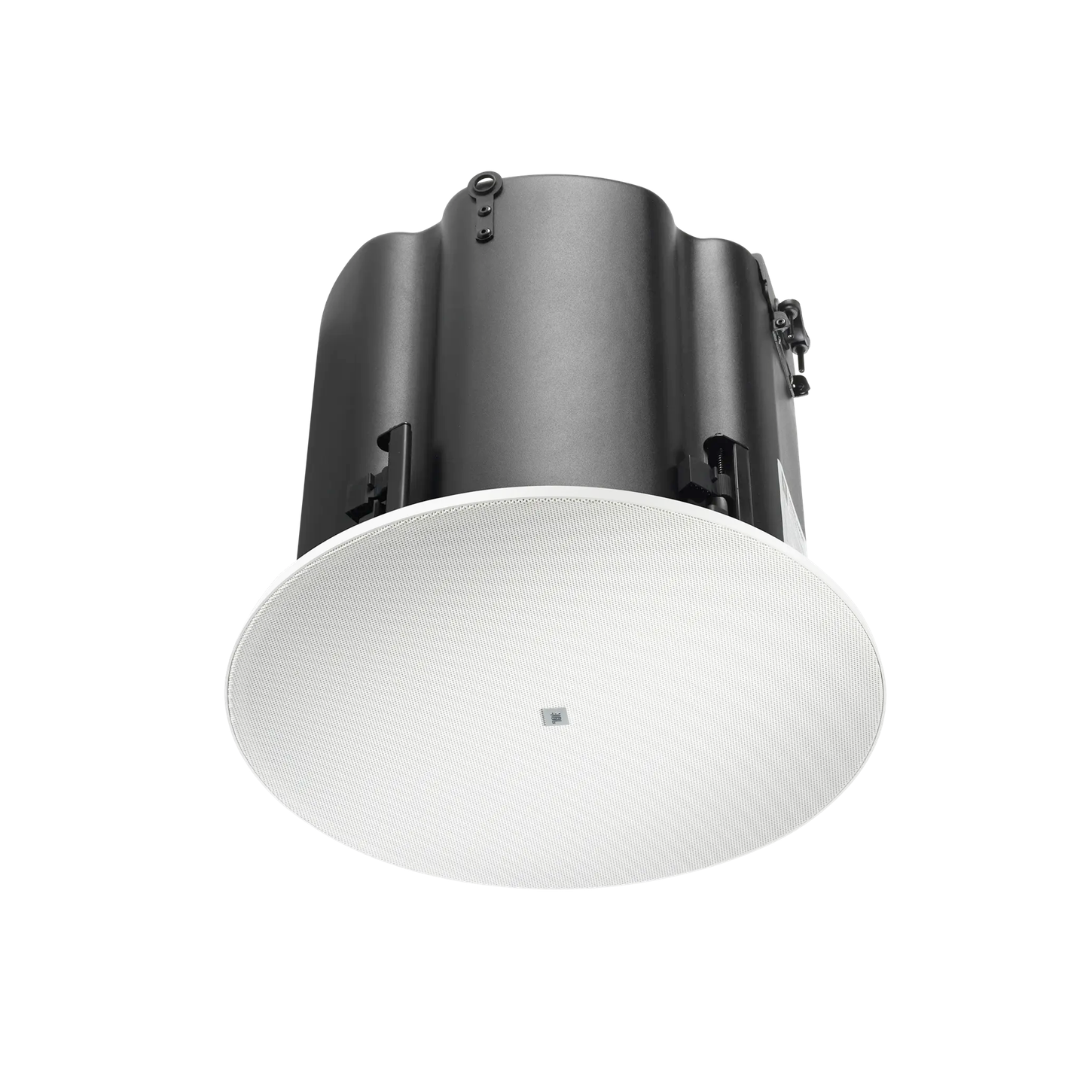

The speaker includes a full-face magnetic grille that blends cleanly with modern interiors and is easily paintable to match any décor. It also features redesigned terminal covers with top and side cable entry ports, along with a reliable dogear mounting system that works with a wide range of ceiling thicknesses. The built-in transformer supports both 70V/100V and low impedance applications with an 8-ohm direct input.
More Information
Key Features
- Ceiling subwoofer for commercial audio installations
- 200 mm (8 in) woofer
- Integrated enclosure for ceiling plenum installation
- Two large tapered ports for warm and smooth bass response
- Extends low-frequency bass output
- Seamless integration with Control 400 Series full-range speakers
- Built-in passive low-pass filter
- Built-in 70V/100V subwoofer-band multi-tap transformer
- 8-ohm direct input for low impedance applications
- Full-face magnetic grille
- Easily paintable white grille
- Optional black round and white square grilles available
- Top and side cable entry options
- Robust and adaptable dogear mounting system
- Suitable for a wide range of ceiling thicknesses
- IP33 rated design
Technical Specification
- Model: JBL Control 419CS/T
- SKU Number: JBL-C419CS/T
- System Type: Ceiling subwoofer
- Frequency Range (-10 dB): 47 Hz – 320 Hz
- Power Capacity:
- 160 W continuous IEC pink noise power, 640 W peak, 2 hrs
- 80 W continuous IEC pink noise power, 320 W peak, 100 hrs
- Sensitivity: 90 dB, 1W/1m
- Coverage Angle: 180° conical
- Maximum SPL: 112 dB continuous pink noise, 118 dB peak
- Nominal Impedance: 8Ω
- Transformer Taps:
- 70 V: 60 W, 30 W, 15 W, 7.5 W
- 100 V: 60 W, 30 W, 15 W
- Driver: 200 mm (8 in) treated paper cone with high-performance magnet
- Ceiling Cutout Size: 308 mm (12.2 in)
- Dimensions: 289 mm (11.4 in) H × 346 mm (13.6 in) diameter
- Backcan Depth: 280 mm (11.0 in) from bottom of ceiling tile to top of backcan
- Color: Stock grille is White, RAL9003, paintable
- Net Weight: 8.8 kg / 19.4 lbs each
- Shipping Weight: 25.27 kg / 55.7 lbs per pai
