Description
The JBL Control 414C/T Micro is a two-way ceiling loudspeaker from the Control 400 Standard Coverage Series, designed for professional commercial audio installations where ceiling plenum space is limited. It features a 4-inch woofer and a 0.5-inch PEI dome tweeter with a low-profile integrated enclosure.
The speaker supports both 70V / 100V distributed audio systems and 8-ohm low-impedance operation, providing flexibility for different installation requirements. Its full-face magnetic grille is paintable, allowing it to blend seamlessly into modern interiors.
With a shallow 105 mm / 4.13 inch depth, IP32 rating, top and side cable entry options, and a robust captive dogear mounting system, the Control 414C/T Micro is ideal for offices, retail spaces, restaurants, hospitality areas, commercial interiors, background music, and paging applications.
More Information
Key Features
- Two-way ceiling loudspeaker
- Part of JBL Control 400 Standard Coverage Series

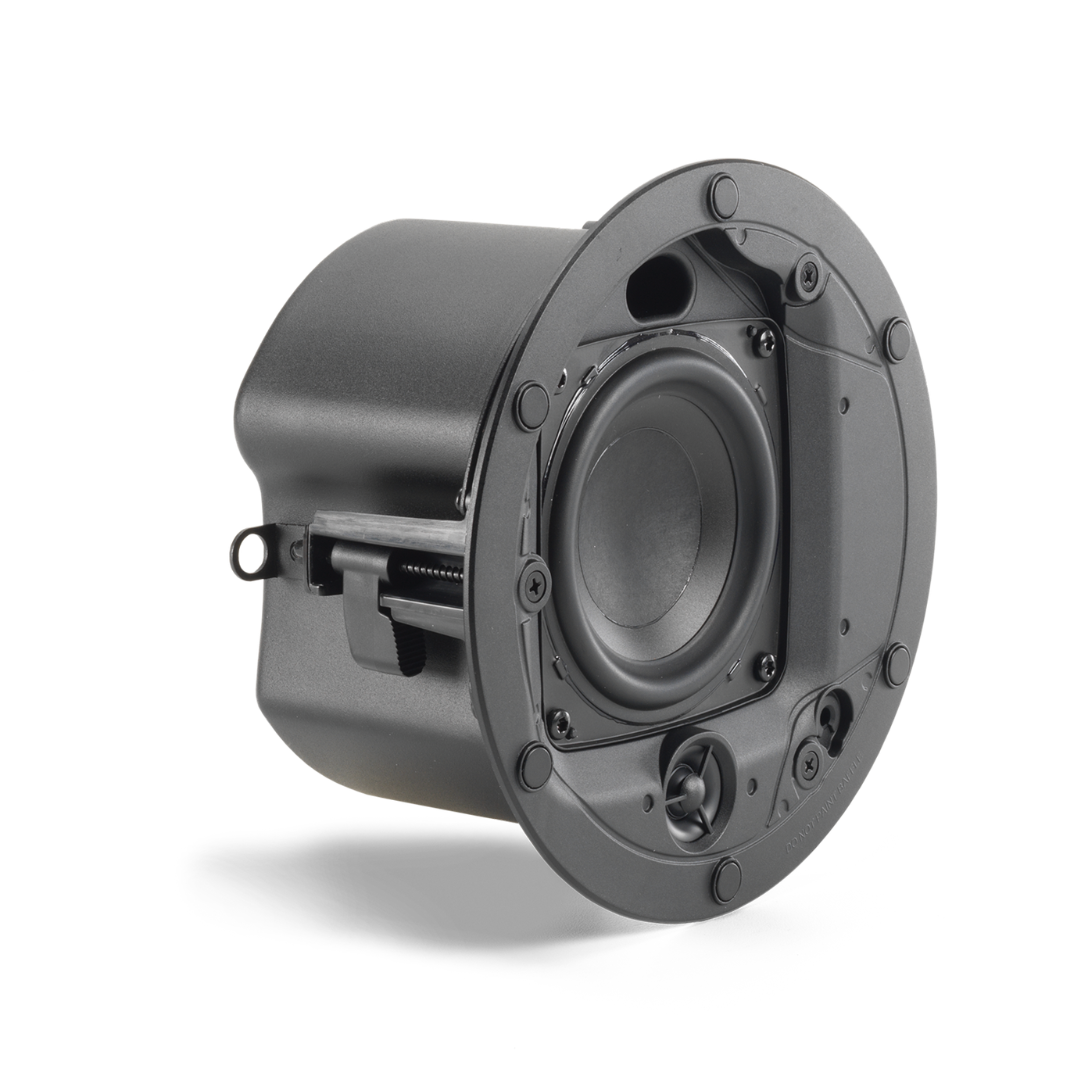

- 4-inch woofer with 0.5-inch PEI dome tweeter
- Low-profile enclosure design
- Shallow 105 mm / 4.13 inch depth
- Ideal for restricted ceiling plenum spaces
- Integrated enclosure for ceiling installation
- Supports 70V distributed audio systems
- Supports 100V distributed audio systems
- Supports 8-ohm direct input

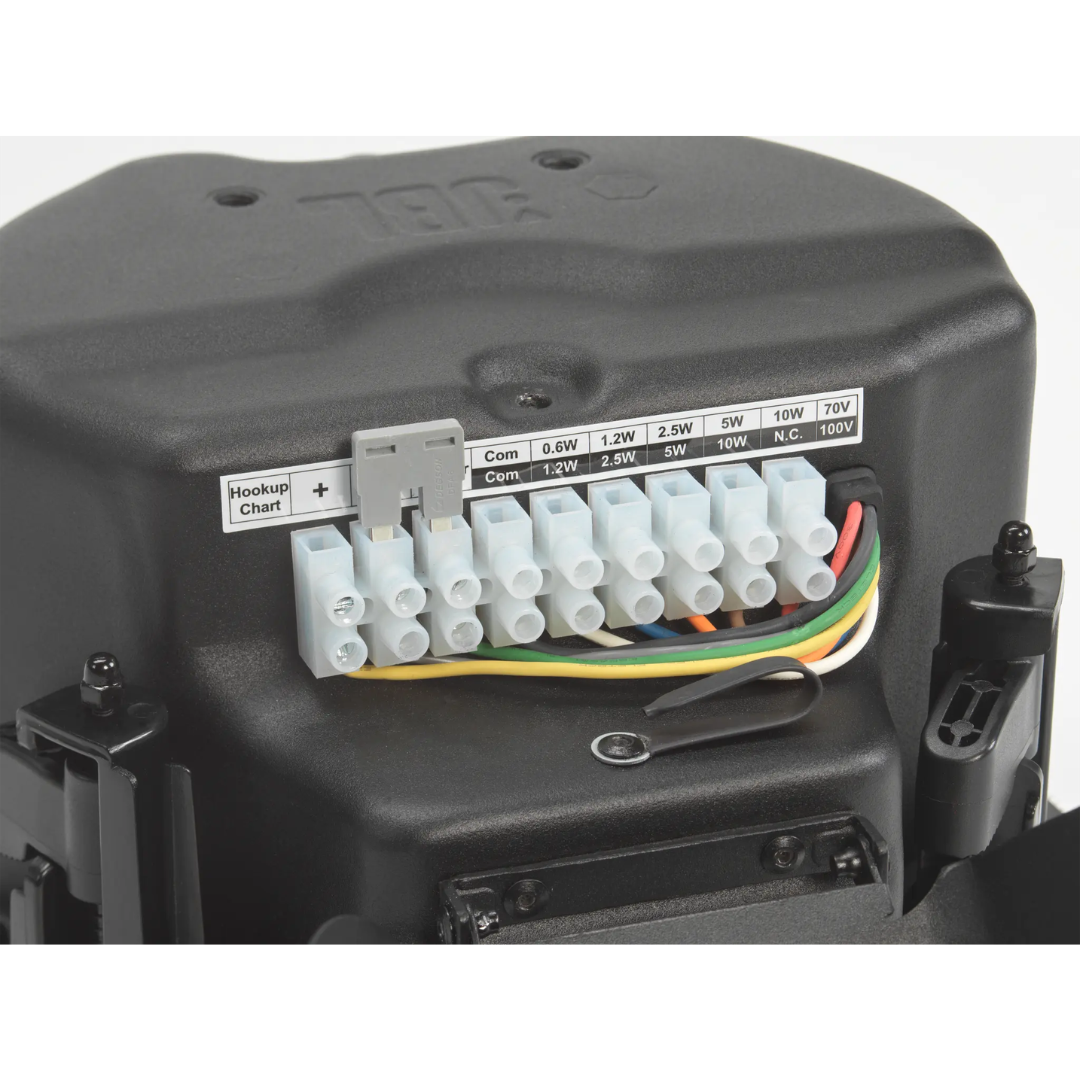

- Built-in 70V / 100V multi-tap transformer

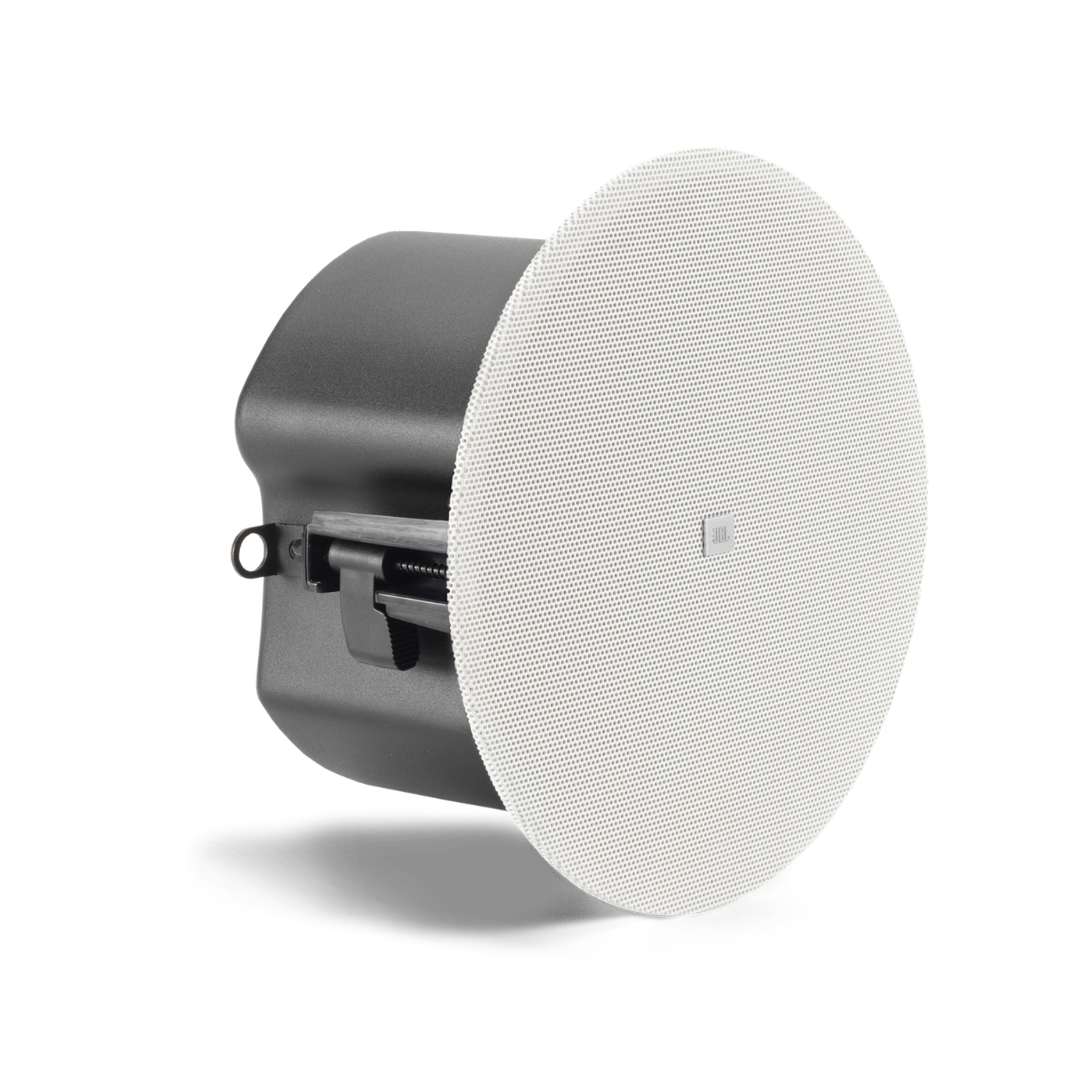

- Full-face magnetic grille
- Paintable grille for décor matching
- Top and side cable entry options

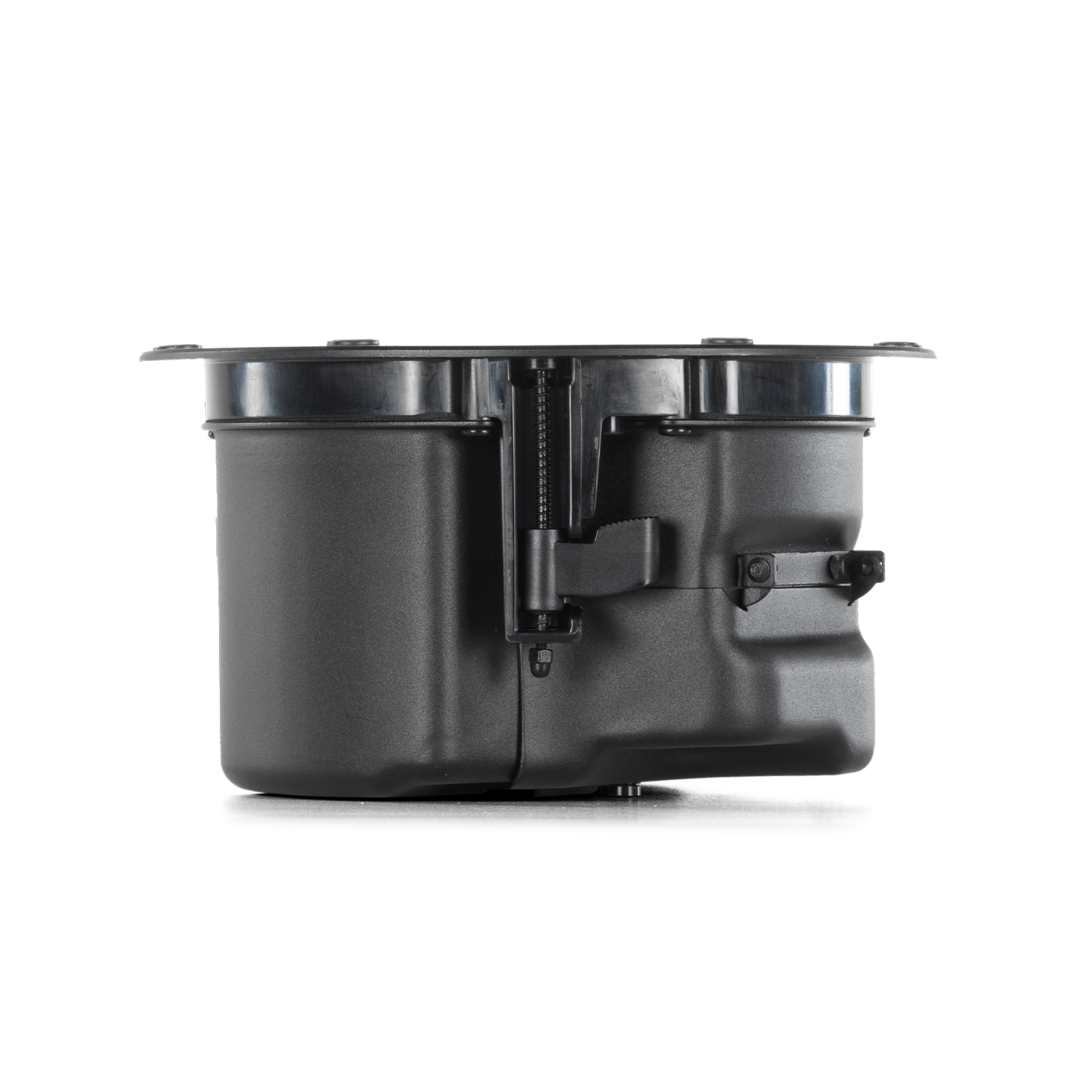

- Robust captive dogear mounting design
- Suitable for a wide range of ceiling thicknesses
- IP32 rated design
- Suitable for commercial background music and paging applications
Technical Specification
- Brand: JBL
- Model Number: Control 414C/T Micro
- Series: Control 400 Standard Coverage Series
- Product Type: Two-Way Ceiling Loudspeaker
- Low-Frequency Driver: 100 mm / 4 Inch Woofer
- High-Frequency Driver: 12 mm / 0.5 Inch PEI Dome Tweeter
- Enclosure Type: Low-Profile Integrated Enclosure
- Mounting Depth: 105 mm / 4.13 Inches
- System Support: 70V / 100V and 8-Ohm Direct Input
- Transformer: Built-In 70V / 100V Multi-Tap Transformer
- Cable Entry: Top and Side Cable Entry Options
- Mounting System: Robust Captive Dogear Design
- Grille Type: Full-Face Magnetic Paintable Grille
