Description

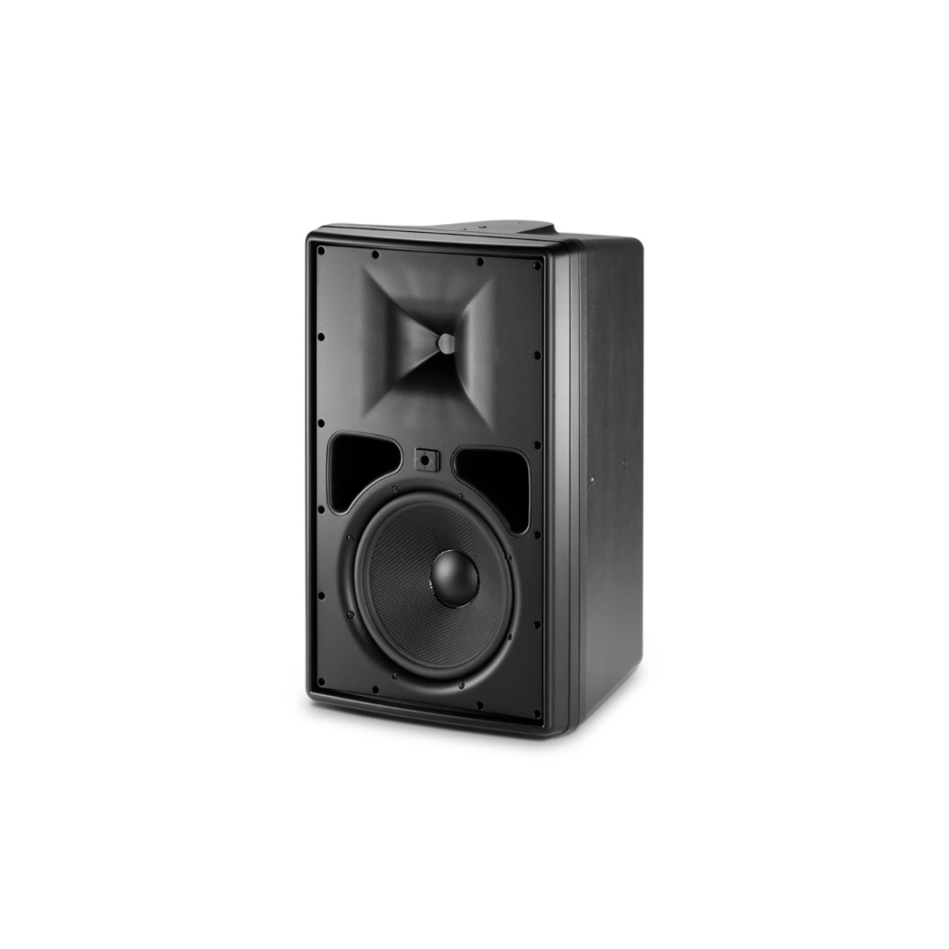

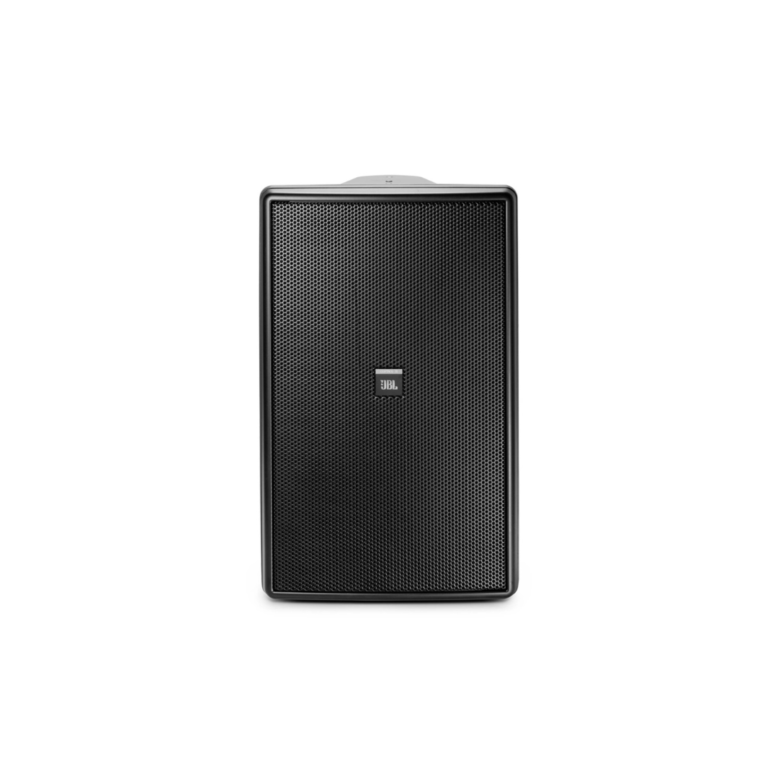

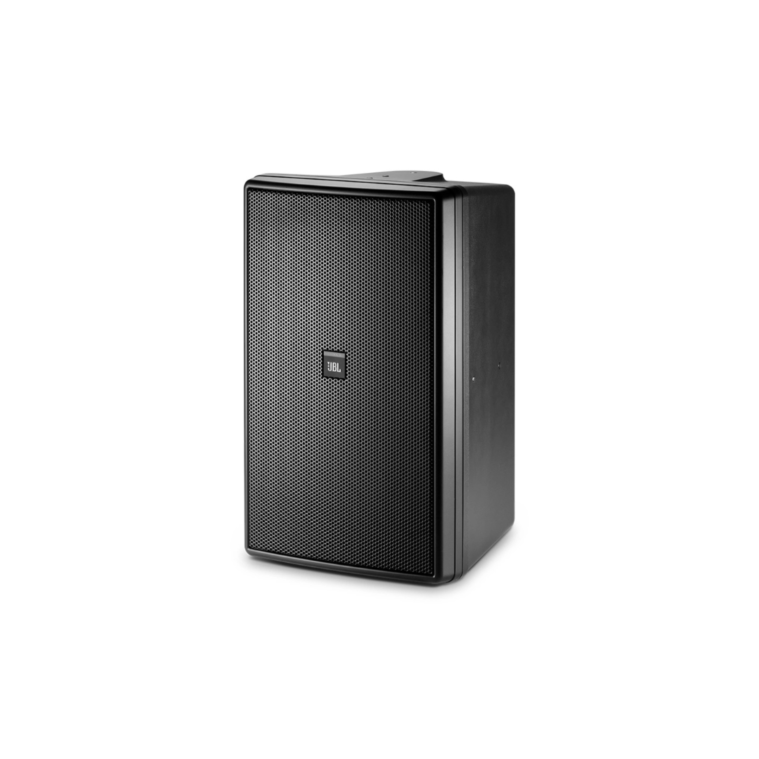

The JBL Control 31 is a two-way high-output indoor-outdoor monitor speaker designed for powerful, clear, and reliable audio performance. It features a 10-inch woven fiberglass low-frequency driver and a JBL 2414H-C compression driver for extended bandwidth, smooth frequency response, and strong sound projection. With its WeatherMax™ grille, IP-55 outdoor capability, 250W power handling, and wide 110° x 110° coverage, it is ideal for stadiums, parks, resorts, commercial spaces, and high-performance outdoor sound installations.
More Information
Key Features
- Two-way high-output indoor and outdoor monitor speaker.
- 250 mm 10-inch woven fiberglass cone LF driver.
- JBL 2414H-C compression driver with 1-inch exit.
- 250W power capability with 1000W peak output.
- 150W transformer for 70V and 100V distributed audio lines.
- 8Ω thru bypass setting for low-impedance operation.
- Extended bandwidth with smooth frequency response.
- WeatherMax™ multi-layer grille for outdoor durability.
- IP-55 rated outdoor-capable design.
- 110° x 110° symmetrical coverage pattern.
- Includes InvisiBall® wall-mounting hardware.
- Ten 6 mm attachment points for suspension or optional U-bracket.
- Sealed input panel cover with screw-down input terminals.
- Optional marine-kit grille available for salt-air environments.
Technical Specification
- Product Type: Two-Way High-Output Indoor-Outdoor Monitor Speaker
- Frequency Range: 33 Hz – 19 kHz (-10 dB)
- Frequency Response: 42 Hz – 14 kHz (±3 dB)
- Power Rating: 250W, 1000W peak
- Maximum SPL: 116 dB continuous, 123 dB peak
- Sensitivity: 92 dB
- Coverage Angle: 110° H x 110° V
- Nominal Impedance: 8 Ohms
- Transformer Taps 70V: 150W, 75W, 38W, 19W
- Transformer Taps 100V: 150W, 75W, 38W
- Recommended High-Pass Filter: 40 Hz, 24 dB/octave
- LF Driver: 250 mm 10-inch woven fiberglass cone with 52 mm voice coil
- HF Driver: JBL 2414H-C compression driver with 25 mm diaphragm
- Crossover Type: 2nd order low-pass and 2nd order high-pass
- Enclosure: High impact Polystyrene with 10% glass fill
- Grille: Zinc-plated steel with WeatherMax™ multi-layer foam
- Outdoor Rating: IP-55
- Input Connector: Screw-down terminal strip
- Safety Agency: Transformer listed per UL1876
- Available Colors: Black or White
- Dimensions: 593 x 372 x 345 mm
- Net Weight: 18.8 kg
- Shipping Weight: 22.0 kg
