Description

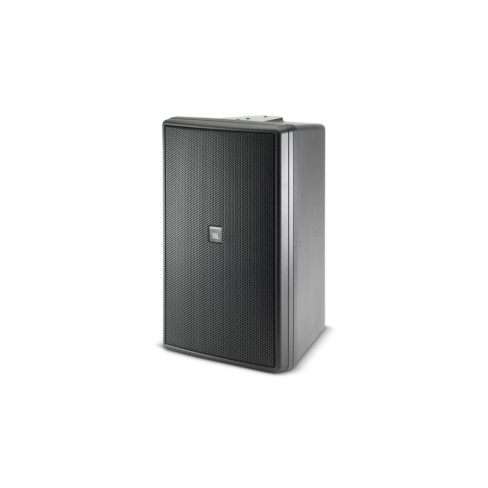

The JBL Control 30 is a compact high-performance indoor/outdoor loudspeaker designed for smooth high-fidelity sound, extended bandwidth, and controlled coverage. It uses high-power components, a computer-optimized horn, coaxial component design, and advanced cabinet construction for reliable professional performance. With 500W continuous program power, 250W continuous pink noise power, 150W transformer taps, and 4Ω thru operation, it is ideal for premium commercial audio, restaurants, hotels, theme parks, retail spaces, leisure venues, and outdoor installations.
More Information
Key Features
- Compact high-performance indoor/outdoor loudspeaker
- 10-inch fiberglass/Kevlar® cone LF woofer
- 5-inch anodized aluminum cone midrange driver
- 1-inch titanium diaphragm compression driver
- Extended bandwidth with smooth frequency response
- 500W continuous program power handling
- 250W continuous pink noise power handling
- 120° horizontal × 110° vertical HF coverage
- 150W transformer for 70V/100V systems
- 4Ω thru operation support
- Fully outdoor-capable WeatherMax™ design
- SonicGuard® overload protection
- InvisiBall® mounting hardware included
- Ten 6 mm attachment points for suspension
- Sealed input panel cover and screw-down terminals
Technical Specification
- Model: JBL Control 30
- Speaker Type: High-Performance Indoor/Outdoor Loudspeaker
- Frequency Range (-10 dB): 38 Hz – 17 kHz
- Frequency Response (±3 dB): 40 Hz – 16 kHz
- Power Capacity: 500W Continuous Program Power
- Continuous Pink Noise Power: 250W
- Transformer Taps at 70V: 150W, 75W, 38W, 19W
- Transformer Taps at 100V: 150W, 75W, 38W
- Thru Position: 4Ω Nominal
- Sensitivity: 93 dB, 1W @ 1m
- Maximum SPL: 123 dB Short-Term / 117 dB Long-Term
- Coverage Angle: 120° H × 110° V
- Directivity Factor: 5.2 dB
- Directivity Index: 7.1 dB
- Nominal Impedance: 4Ω
- Crossover Network: 3rd Order Low-Pass LF, 2nd Order High-Pass / 3rd Order Low-Pass MF, 3rd Order High-Pass HF
- Crossover Shaping: Conjugate Shaping Circuitry
- LF Driver: 250 mm / 10 inch Fiberglass/Kevlar® Cone Woofer
- LF Voice Coil: 50 mm / 2 inch on Fiberglass Former
- MF Driver: 125 mm / 5 inch Anodized Aluminum Cone
- MF Voice Coil: 25 mm / 1 inch on Fiberglass Former
- HF Driver: 25 mm / 1 inch Titanium Diaphragm Compression Driver
- Enclosure Material: High Impact Polystyrene with 10% Glass Fill
- Internal Cabinet Construction: 5 mm Foamed Polyurethane Secondary Mold
- Grille: Thermoset Composite Coated Steel with WeatherMax Multi-Layer Foam
- Overload Protection: SonicGuard® Full-Range Power Limiting
- Mounting Hardware: InvisiBall® Mounting Hardware Included
- Suspension Points: Ten 6 mm Attachment Points
- Outdoor Rating: IEC 529 IP-X5
- Weather Resistance: Exceeds Mil Spec 810 for Humidity, Salt Spray, Temperature & UV
- Input Connector: Screw-Down Terminal Strip
- Safety Agency: Transformer Listed per UL1876

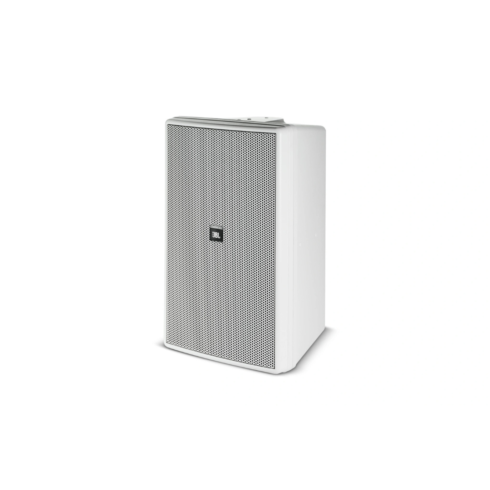

- Color Options: Black or White
- Dimensions: 593 × 372 × 345 mm
- Net Weight: 18.9 kg
- Shipping Weight: 20.3 kg
