Description

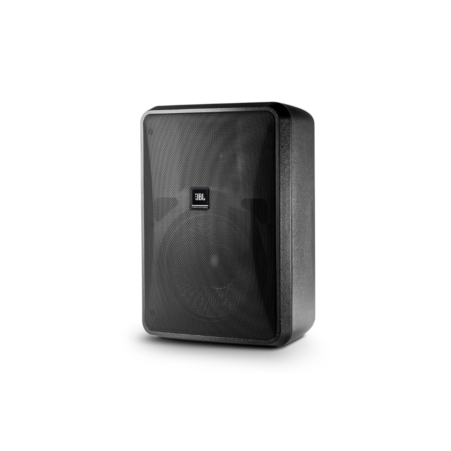

The JBL Control 28-1L is a two-way 8-inch indoor/outdoor loudspeaker designed for high-output foreground/background music and paging applications. It delivers rich sound, wide 100° × 100° coverage, consistent dispersion, and a contemporary design suitable for commercial environments. With 120W power handling, 240W program power, and 8Ω operation, it is ideal for retail stores, restaurants, health clubs, theme parks, hotels, cafés, educational facilities, and leisure venues.
More Information
Key Features
- Two-way 8-inch indoor/outdoor loudspeaker
- 8-inch woven fiberglass cone woofer
- 1-inch PEI diaphragm tweeter with fluid cooling
- 120W power handling
- 240W continuous program power rating
- Wide 100° horizontal × 100° vertical coverage
- High-fidelity sound with 45 Hz – 20 kHz frequency range
- Weather-resistant enclosure and transducers
- Built-in InvisiBall® wall-mounting hardware
- Optional U-bracket mounting support
- Suitable for high-output music and paging applications
- Available in black or white finish
Technical Specification
- Model: JBL Control 28-1L
- Speaker Type: Two-Way Indoor/Outdoor Loudspeaker
- Woofer: 200 mm / 8 inch Woven Fiberglass Cone
- Tweeter: 25 mm / 1 inch PEI Diaphragm Tweeter
- Frequency Range (-10 dB): 45 Hz – 20 kHz
- Frequency Response (±3 dB): 62 Hz – 16 kHz
- Power Rating: 240W Continuous Program
- Power Handling: 120W
- Maximum Input Voltage: 27.5V RMS / 55.0V Peak
- Maximum SPL: 112 dB Continuous / 118 dB Peak
- Sensitivity: 91 dB
- Coverage Angle: 100° H × 100° V
- Directivity Factor: 7.3
- Nominal Impedance: 8Ω
- Crossover Type: 2nd Order Low-Pass / 1st Order High-Pass with Conjugate Shaping
- Recommended High-Pass Filter: 45 Hz, 24 dB/oct
- Enclosure Material: High Impact Polystyrene with 10% Glass Fill
- Grille: Zinc-Plated Steel with Polyester Powder Coating
- Mounting Hardware: InvisiBall® Wall-Mounting System Included
- Optional Mounting: U-Bracket
- Outdoor Rating: IP-44 / IP-55 with Optional WeatherMax™ Grille
- Input Connector: Screw-Down Terminal Strip
- Wire Support: Up to 12 AWG / 2.5 mm²
- Safety Agency: ROHS Compliant
- Color Options: Black or White
- Dimensions: 386 × 282 × 219 mm
- Net Weight: 6.2 kg
- Shipping Weight: 13.4 kg Pair Pack
