Description

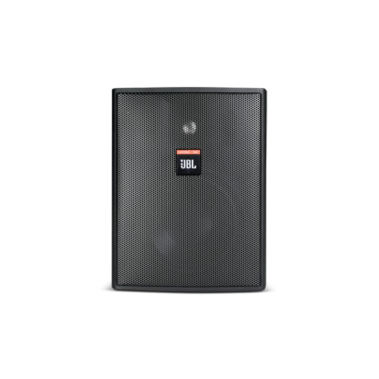

The JBL Control 25AV is a compact two-way loudspeaker designed to deliver smooth, high-fidelity sound performance from a deep cabinet design. It uses high-power components, a complex crossover network, and SonicGuard™ overload protection for reliable operation. With 100W continuous pink noise power handling, 200W program power, 70V/100V transformer taps, and 8Ω thru operation, it is suitable for indoor/outdoor foreground music, paging, AV rooms, restaurants, retail stores, hospitality areas, and installations near video monitors.
More Information
Key Features
- Compact two-way loudspeaker with deep cabinet design
- Video shielded for use near video monitors
- 130 mm / 5.25-inch polypropylene-coated woofer
- 20 mm / 0.75-inch titanium-coated horn-loaded tweeter
- Smooth high-fidelity frequency response
- 100W continuous pink noise power handling
- 200W continuous program power rating
- 60W transformer for 70V/100V systems
- Direct 8Ω thru operation support
- SonicGuard™ overload protection
- Stainless steel grille for harsh environments
- InvisiBall® mounting hardware included
- Sealed input panel cover included
- Suitable for indoor and outdoor applications
Technical Specification
- Model: JBL Control 25AV
- Speaker Type: Two-Way Indoor/Outdoor Loudspeaker
- Woofer: 130 mm / 5.25 inch Polypropylene-Coated Paper Cone
- Tweeter: 20 mm / 0.75 inch Titanium-Coated PEI Horn-Loaded Tweeter
- Frequency Range: 70 Hz – 23 kHz (-10 dB)
- Midrange Response: 130 Hz – 14 kHz (±1.5 dB)
- Power Capacity: 200W Continuous Program Power
- Continuous Pink Noise Power: 100W
- Sensitivity: 87 dB SPL, 1W @ 1m
- Maximum SPL: 113 dB Peak / 107 dB Continuous Average Pink Noise
- Music or Speech SPL: 103 dB Continuous Average
- Coverage Angle: 100° H × 100° V
- Directivity Factor: 4.9 dB
- Directivity Index: 6.9 dB
- Nominal Impedance: 8Ω
- Minimum Impedance: 6.7Ω at 230 Hz
- Crossover Network: 2nd Order Low-Pass / 2nd Order High-Pass
- Transformer Taps at 70V: 60W, 30W, 15W, 7.5W
- Transformer Taps at 100V: 60W, 30W, 15W
- Overload Protection: SonicGuard™ Full-Range Power Limiting with Internal Fuse
- Enclosure Material: High Impact Polystyrene
- Grille: Painted Stainless Steel
- Mounting Hardware: InvisiBall® Mounting Hardware Included
- Rotation Against Wall: 37° Vertical / 44° Horizontal
- Rotation on Bracket: 44° All Directions
- Outdoor Rating: IEC 529 IP-X4 Splashproof
- Input Connector: Screw-Down Terminal Strip
- Wire Support: Up to 12 AWG
- Safety Agency: Transformer Listed per UL1876

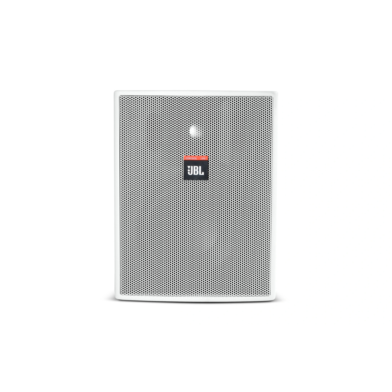

- Color Options: Black or White, Paintable
- Dimensions: 236 × 186 × 159 mm
- Net Weight: 4.0 kg
- Shipping Weight: 9.0 kg per Pair
