Description

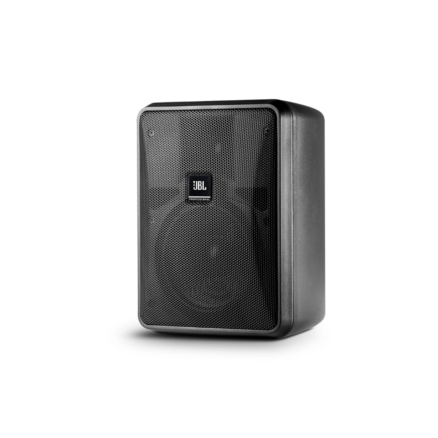

The JBL Control 25-1 is a two-way 5-inch indoor/outdoor loudspeaker designed for high-output foreground/background music and paging applications. It delivers rich sound, wide 100° × 100° coverage, consistent dispersion, and a modern design suitable for multiple commercial spaces. With 100W continuous pink noise power handling, 200W program power, 8Ω operation, and built-in 70V/100V transformer taps, it is ideal for retail stores, restaurants, health clubs, theme parks, hotels, cafés, educational facilities, and leisure venues.
More Information
Key Features
- Two-way 5-inch indoor/outdoor loudspeaker
- 5.25-inch woven fiberglass cone woofer
- 3/4-inch PEI diaphragm tweeter with fluid cooling
- 100W continuous pink noise power handling
- 200W continuous program power rating
- Wide 100° horizontal × 100° vertical coverage
- Built-in 30W 70V/100V multi-tap transformer
- Direct 8Ω operation support
- Weather-resistant enclosure and transducers
- InvisiBall® wall-mounting hardware included
- Optional U-bracket mounting support
- Suitable for foreground/background music and paging
Technical Specification
- Model: JBL Control 25-1
- Speaker Type: Two-Way Indoor/Outdoor Loudspeaker
- Woofer: 135 mm / 5.25 inch Woven Fiberglass Cone
- Tweeter: 19 mm / 0.75 inch PEI Diaphragm Tweeter
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- Frequency Response (±3 dB): 85 Hz – 17 kHz
- Power Rating: 200W Continuous Program
- Continuous Pink Noise Power: 100W
- Peak Power: 400W Peak
- Maximum Input Voltage: 25.3V RMS / 50.6V Peak
- Maximum SPL: 110 dB Continuous / 116 dB Peak
- Sensitivity: 90 dB
- Coverage Angle: 100° H × 100° V
- Directivity Factor: 6.04
- Directivity Index: 7.6 dB
- Nominal Impedance: 8Ω
- Crossover Type: 2nd Order Low-Pass / 3rd Order High-Pass
- Transformer Taps at 70V: 30W, 15W, 7.5W, 3.7W
- Transformer Taps at 100V: 30W, 15W, 7.5W
- Recommended High-Pass Filter: 60 Hz, 24 dB/oct
- Enclosure Material: High Impact Polystyrene
- Grille: Zinc-Plated Steel with Polyester Powder Coating
- Mounting Hardware: InvisiBall® Wall-Mounting System Included
- Optional Mounting: MTC-25UB-1 U-Bracket
- Outdoor Rating: IP-44 / IP-55 with Optional WeatherMax™ Grille

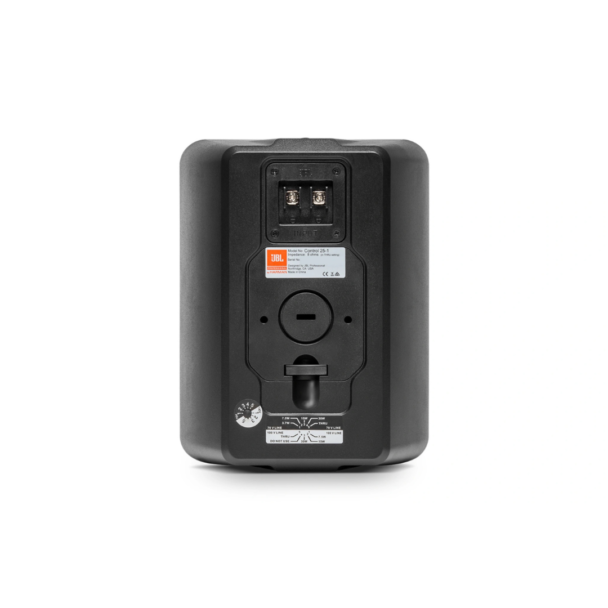

- Input Connector: Screw-Down Terminal Strip
- Wire Support: Up to 12 AWG / 2.5 mm²
- Safety Agency: ROHS Compliant, Transformer UL Recognized

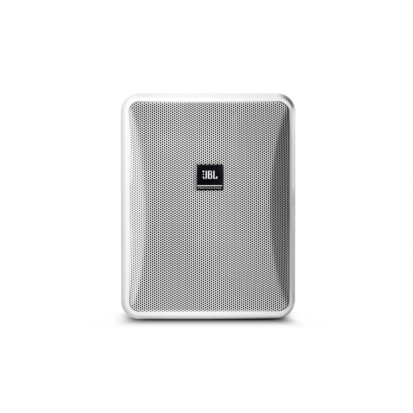

- Color Options: Black or White
- Dimensions: 243 × 188 × 145 mm
- Net Weight: 3.4 kg
- Shipping Weight: 8.16 kg Pair Pack
