Description

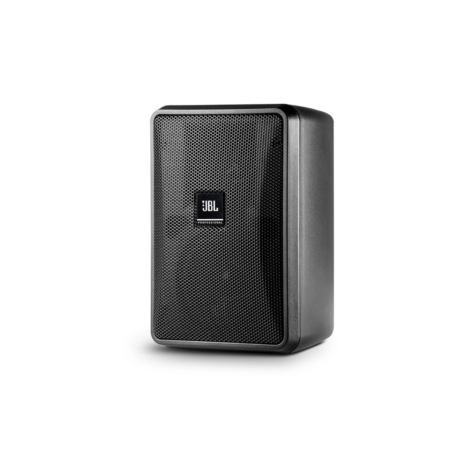

The JBL Control 23-1L is a compact two-way 3-inch indoor/outdoor loudspeaker designed for high-quality foreground/background music and paging applications. It offers rich sound, wide 100° × 100° coverage, consistent dispersion, and a modern high-design look that fits easily into different interiors. With 100W continuous program power and 8Ω operation, it is suitable for retail stores, restaurants, hotels, health clubs, theme parks, educational facilities, cafés, and leisure venues.
More Information
Key Features
- Compact two-way 3-inch loudspeaker
- 3-inch woven fiberglass cone woofer
- 1/2-inch PEI diaphragm tweeter with fluid cooling
- 100W continuous program power rating
- Wide 100° horizontal × 100° vertical coverage
- High-fidelity sound with 70 Hz – 20 kHz frequency range
- Weather-resistant enclosure and transducers
- Built-in InvisiBall® wall-mounting hardware
- Optional U-bracket mounting support
- Suitable for indoor and outdoor applications
- Contemporary high-design appearance
- Available in black or white finish
Technical Specification
- Model: JBL Control 23-1L
- Speaker Type: Two-Way Indoor/Outdoor Loudspeaker
- Woofer: 76 mm / 3 inch Woven Fiberglass Cone
- Tweeter: 13 mm / 0.5 inch PEI Diaphragm Tweeter
- Frequency Range (-10 dB): 70 Hz – 20 kHz
- Frequency Response (±3 dB): 95 Hz – 19 kHz
- Power Rating: 100W Continuous Program
- Maximum Input Voltage: 17.2V RMS / 34.4V Peak
- Maximum SPL: 103 dB Continuous / 109 dB Peak
- Sensitivity: 86 dB
- Coverage Angle: 100° H × 100° V
- Directivity Factor: 5.8
- Directivity Index: 7.2 dB
- Nominal Impedance: 8Ω
- Crossover Type: 2nd Order Low-Pass / 2nd Order High-Pass
- Recommended High-Pass Filter: 70 Hz, 24 dB/oct
- Enclosure Material: High Impact Polystyrene
- Grille: Zinc-Plated Steel with Polyester Powder Coating
- Mounting Hardware: InvisiBall® Wall-Mounting System Included
- Optional Mounting: MTC-23UB-1 U-Bracket
- Outdoor Rating: IP-44 / IP-55 with Optional WeatherMax™ Grille
- Input Connector: Screw-Down Terminal Strip
- Wire Support: Up to 12 AWG / 2.5 mm²
- Agency Rating: ROHS Compliant
- Color Options: Black or White
- Dimensions: 200 × 141 × 111 mm
- Net Weight: 1.6 kg
- Shipping Weight: 3.5 kg Pair Pack / 11 kg Master Pack
